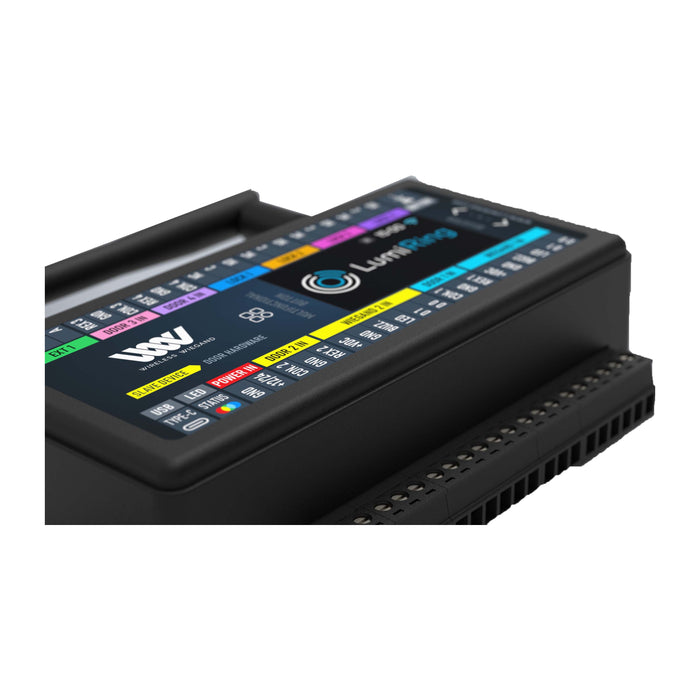

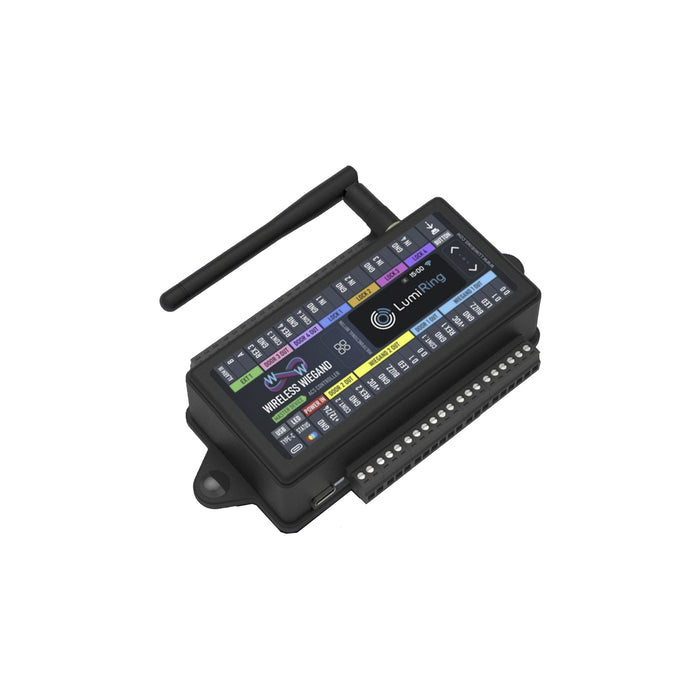

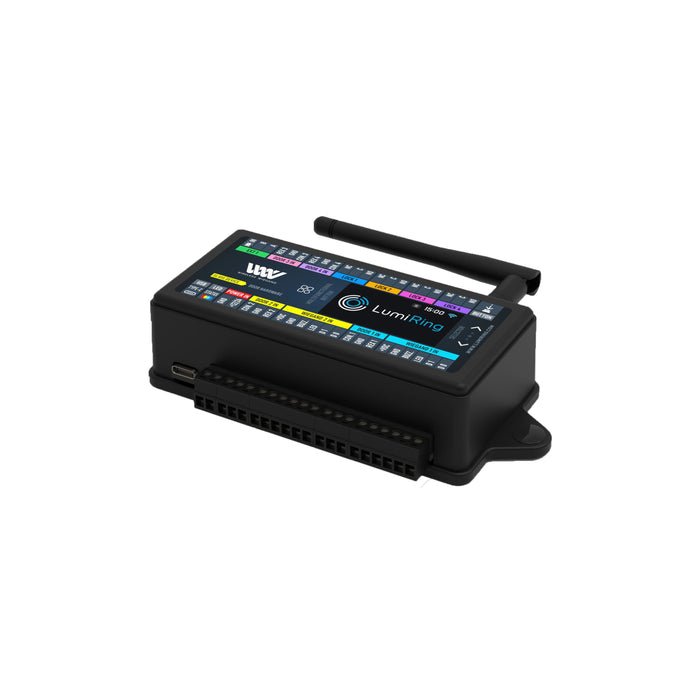

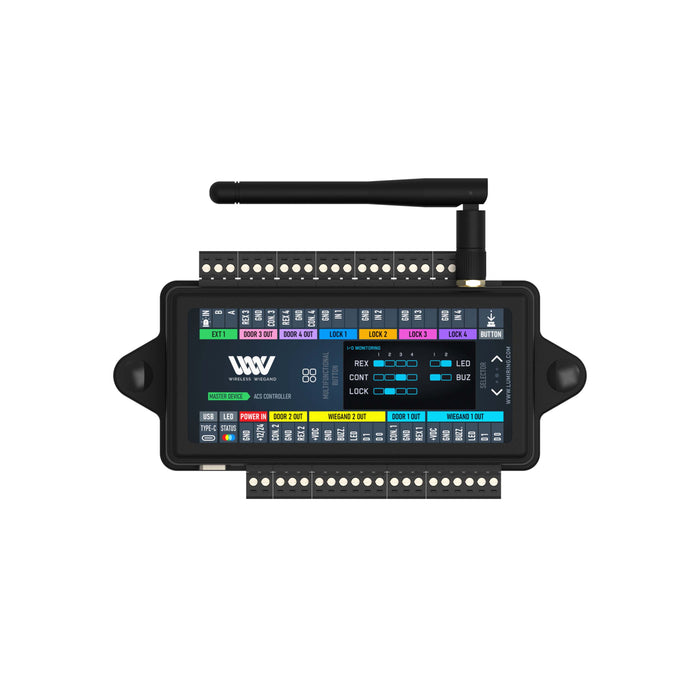

INVID-WIRELESSWIEGAND: Wireless Wiegand Point To Point Bridge Device
Description
Universal Wireless Wiegand Point To Point Bridge Device
INVID-Wireless-Wiegand “WW” device kit enables the connection of peripheral devices such as readers, electric locks, door position sensors, and exit buttons to the access-control controller unit, covering a range of up to 3,281 feet (1,000 meters) with no need for communication cables.
INVID-Wireless-Wiegand “WW” devices included in the kit are pre-configured and ready for immediate use. Further configuration of the kit can be performed through the integrated web interface accessible via the
built-in Wi-Fi access point. The utilization of packet encryption ensures data security during transmission
over the radio channel.
INVID-Wireless-Wiegand has the capacity to connect with up to two readers, code keypads, or their combined versions using various Wiegand bit formats, including 4, 8, 26, 32, 33, 34, 35, 36, 37, 40, 42, 48, 56, 64, 72,
and 80 bits.
The device is equipped with relay outputs for controlling locks or other devices, inputs for managing exit buttons and door opening sensors, and auxiliary contacts for local emergency locking/unlocking.
The device establishes a connection with the controller unit and is equipped with suitable inputs and outputs for this purpose.
Features
- 5000+ ft (1500+ m)
- Cheaper than Trenching
- Minimal Latency
- High Encryption 256bit
- Transparent For Access Control
- Web-Based Interface
Spec
Device Specifications |
|
|
Processor |
ESP32-S3 |
|
Over-the-air (OTA) update |
Yes |
|
Built-in web werver |
Yes |
Communications |
|
|
Wi-Fi |
802.11 b/g/n 2.4 GHz |
|
Radio |
868/915 MHZ |
|
Wiegand |
2 ports |
|
Open Supervised Device Protocol (OSPD) via RS-485 |
1 ports |
|
USB ports (Type-C) |
Yes |
|
Physical connections |
Gate Device Edge Device |
|
Exit button (REX) |
Outputs 4 Inputs 4 |
|
Door position sensor (DPS) |
Outputs 4 Inputs 4 |
|
Locks |
Inputs 4 Relay 4 |
|
Tamper G-sensor |
Built-in Built-in |
|
Emergency Input |
n/a 1 |
Electrical characteristics |
|
|
Input voltage |
12-24 VDC +/- 10 % |
|
Operation current (MAX) 12 volts direct current (VDC) |
0.5 A (6 W) |
|
Operation current (AVG) 12 VDC |
0.2 A (2.4 W) |
|
Relay contact rating 30 VDC |
1.5 A (45 W) |
|
Output short-circuit protection |
Yes |
|
Power supply reverse polarity protection |
Yes |
|
Wiegand/Card Reader power VDC each |
0.5 A |
Work distance |
|
|
RS-485 * |
3280 ft (1000 m) |
|
Wiegand |
328 ft (100 m) |
|
Wi-Fi 2.4 GHz (open space) |
4-8 ft*** |
|
Radio 868/915 MHz |
3280 ft (1000 m) ** |
Environmental requirements |
|
|
Operating temperature |
-22°F ~ 158°F (-30°C ~ 70°C) |
|
Ingress Protection rating |
IP50 |
Physical characteristics |
|
|
Housing material |
ABS plastic UL94 V-0 |
|
Mounting method |
Wall mount/din rail mount (option) |
|
Dimensions (length, width, height) |
5.9” x 3.15” x 1.38” (150 x 80 x 35 mm) (excluding antenna) |
|
Weight |
Edge 4.765 oz (135 g) - Gate 4.308 oz (122 g) |
