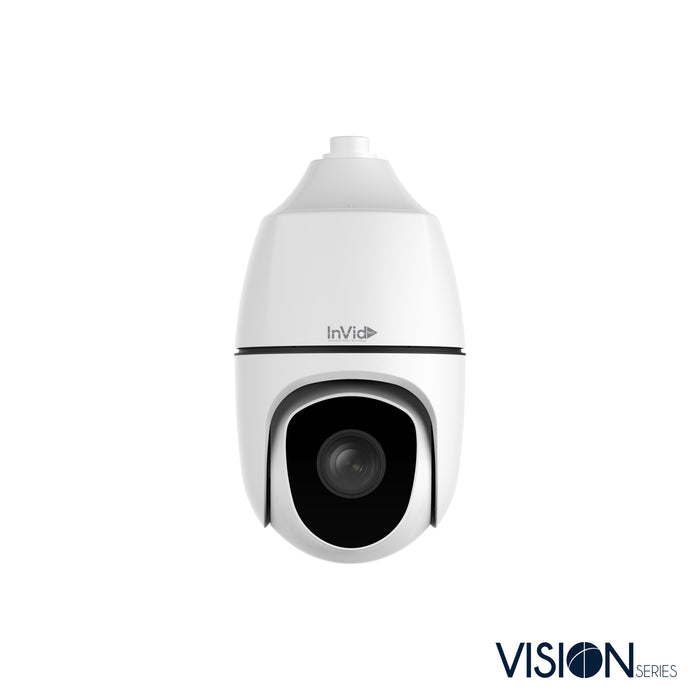

VIS-P8PTZ40XIRNH-AI: 8 Megapixel PTZ
Description
8 Megapixel IP Plug & Play, Outdoor PTZ, Motorized Auto-Focus 5.7-228mm Lens, up to 820’ IR Range, D-WDR, SD Card Slot, AC24V/24VDC/PoE++
Features
- True AI Human & Vehicle Classification for Line Crossing, Intrusion Detection, & Other AI Features
- 8 Megapixel Resolution
- Motorized Auto-Focus 5.7-228mm Lens
- True Day/Night with IR Range up to 820’
- Ultra 265,H.265,H.264, MJPEG
- 30 FPS Recording & Live
- D-WDR
- Micro SD Slot: Up to 256GB
- IP66 Weather Resistant
- AC24V/24VDC/PoE++ Operation
- ONVIF
- Cloud Upgradeable
- Free iOS & Android Apps for Smart Phones & Tablets
- Free Central Management Software (CMS) for PC/MAC
NDAA Compliant Product-Learn More Here
Specs
|
Camera |
VIS-P8PTZ40XIRNH-AI |
|
Sensor |
1/1.8", 8.0 megapixel, progressive scan, CMOS |
|
Minimum Illumination |
Colour: 0.003Lux (F1.5, AGC ON) 0Lux with IR |
|
Day/Night |
IR-cut filter with auto switch (ICR) |
|
Shutter |
Auto/Manual, 1 ~ 1/100000s |
|
WDR |
Digital WDR |
|
S/N |
>56dB |
|
Lens |
|
|
Lens type |
5.7 ~ 228mm, AF automatic focusing and motorized zoom lens |
|
Digital Zoom |
16 |
|
Optical Zoom |
40 |
|
Iris |
Auto; F1.5 ~ F4.8 |
|
Angle of View (H) |
58.4° ~ 2.08° |
|
Angle of View (V) |
36.8° ~ 1.3° |
|
Angle of View (O) |
72.1° ~ 2.38° |
|
DORI |
|
|
DORI Distance |
Lens (mm) Detect (ft) Observe (ft) Recognize (ft) Identify (ft) |
|
5.7 479.8 (146.3m) 191.9 (58.5m) 96 (29.3m) 48 (14.6m) |
|
|
228 14911.4 (4545.0m) 5964.6 (1818.0m) 2982.3 (909.0m) 1491.1 (454.5m) |
|
|
Illuminator |
|
|
IR Range |
Up to 820 ft IR range |
|
Wavelength |
850nm |
|
IR On/Off Control |
Auto/Manual |
|
Video |
|
|
Video Compression |
Ultra 265, H.265, H.264, MJPEG |
|
Frame Rate |
Main Stream: 8MP(3840*2160), Max 30fps in Frame Rate Priority mode; Max 20fps in Smart Priority mode; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps; |
|
Video Bit Rate |
128 Kbps~16 Mbps |
|
U-code |
Support |
|
ROI |
Up to 8 areas |
|
Video stream |
Triple streams |
|
OSD |
Up to 8 OSDs |
|
Privacy Mask |
24 areas, up to 4 areas per scene |
|
Image |
|
|
White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
|
Digital noise reduction |
2D/3D DNR |
|
Flip |
Normal/Flip Vertical/Flip Horizontal/180° |
|
EIS |
N/A |
|
HLC |
Support |
|
BLC |
Support |
|
Defog |
Optical Defog & Digital Defog |
|
Intelligent |
|
|
Smart Intrusion Prevention |
Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection |
|
People Counting |
Support people flow counting and crowd density monitoring |
|
Events |
|
|
Basic Detection |
Motion detection, Audio detection, Tampering Alarm |
|
Auto Tracking |
Support |
|
General Function |
Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
|
Audio |
|
|
Audio Compression |
G.711U,G.711A |
|
Audio Bitrate |
64 Kbps |
|
Two-way audio |
Support |
|
Suppression |
Support |
|
Sampling Rate |
8 kHz |
|
Storage |
|
|
Edge Storage |
Micro SD, up to 256GB |
|
Network Storage |
ANR,NAS(NFS) |
|
Network |
|
|
Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS |
|
Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API, SDK |
|
User/Host |
Up to 32 users. 2 user levels: administrator and common user |
|
Security |
Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
|
Client |
InVid Vision Live (Mobile App), Vision Tools (IP Utility), InVid CMS |
|
Web Browser |
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
|
Pan & Tilt |
|
|
Pan Range |
360° (endless) |
|
Pan Speed |
0.1°/s ~ 180°/s Preset speed: 300°/s |
|
Tilt Range |
-15° ~ 90° (auto reverse) |
|
Tilt Speed |
0.1°/s ~ 180°/s Preset speed: 240°/s |
|
Number of Presets |
1024 |
|
Patrol |
Preset patrol, Route patrol, Recorded patrol |
|
Patrol Stay Time |
15s~1800s |
|
Preset Image Freeze |
Support |
|
Home Position |
Support |
|
Interface |
|
|
Audio I/O |
1/1 |
|
Alarm I/O |
7/2 |
|
Serial Port |
1 RS485 |
|
Built-in Mic |
N/A |
|
Built-in Speaker |
N/A |
|
WIFI |
N/A |
|
Network |
1 * RJ45 10M/100M Base-TX Ethernet |
|
Video output |
N/A |
|
Certification |
|
|
EMC |
FCC CFR 47 Part 15 EN 55032:2015 EN 55024:2010 EN 61000-3-2:2014 EN 61000-3-3-2013 |
|
Safety |
IEC 62368-1 EN 62368-1 UL 60950-1 |
|
Environment |
CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006) |
|
Protection |
Ingression protection: IP66 (IEC 60529-2013) |
|
General |
|
|
Power |
AC 24V ±25%, DC 24V±25%, PoE ++(IEEE 802.3bt) Power consumption: MAX 61W |
|
Power Interface |
Wires with cold-pressed terminal |
|
Dimensions (Ø x H) |
Φ10.6” x 19.6” (Φ270 x 497mm) |
|
Weight |
21.36lb (9.69kg) |
|
Working Environment |
-40°F ~ 158°F (-40°C ~ 70°C), Humidity: ≤95% RH (non-condensing) |
|
Storage Environment |
-40°F ~ 158°F (-40°C ~ 70°C), Humidity: ≤95% RH (non-condensing) |
|
Surge Protection |
6KV |
|
Vandal Resistant |
N/A |
|
Ingress Protection |
IP66 |
|
Reset Button |
Support |
Accessories
IVM-PTZWALL2: Long Wall Mount
IVM-CORNER1: Corner Mount #1 (Use with Wall Mounts)
IVM-JB6: Junction Box #6
IVM-PTZPOLE: Pole Mount (Use with Wall Mounts)
IVM-PM1: Indoor Pendant Mount #1
Ordering
VIS-P8PTZ40XIRNH-AI: 8 Megapixel PTZ
