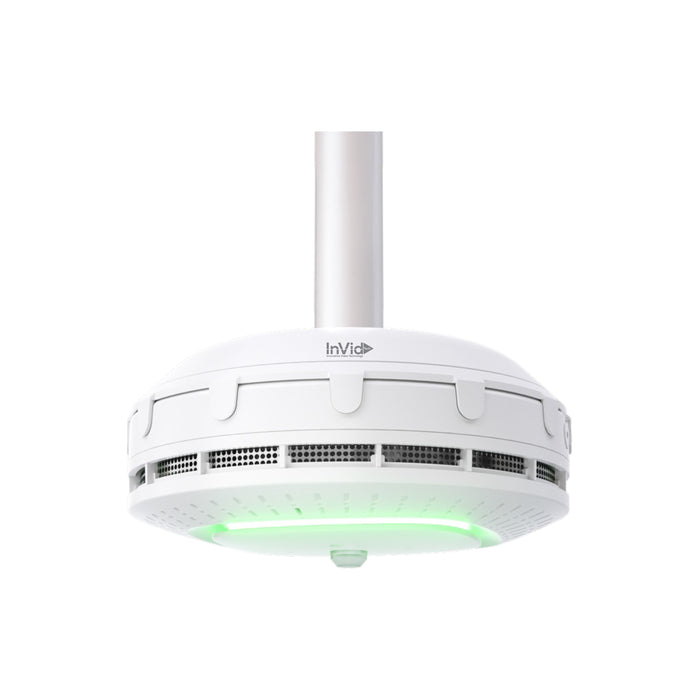

INVID-AQSENSOR: Vape Detector
Description
IP Smart Multi-Sensor Vape Detector
Features
- Built-in Multi-Sensors for Different Gas/Motion/Sound Detection
- DC12V/POE Powered
- 2.4GHz Wi-Fi
- Customized Alarm Events/Actions via Local Web Page
- Configurable Deterrence Audio via Local Web Page
- Configurable Deterrence Light via Local Web Page
- Data Dashboard on Web and Live-View RTSP Video on VMS
- Onvif Profile S and MQTT/HTTP/TCP/Heartbeat
Spec
|
Model |
INVID-AQSENSOR |
|
Network Part |
MQTT, Onvif, RTSP, TCP/IP, UDP, IPV4/V6, HTTP, HTTPS, DHCP, DDNS, SMTP, Wireless Connectivity. |
|
Ethernet |
RJ-45 (10/100 Base-T) |
|
Wireless |
2.4GHz Wi-Fi |
|
Live-View Resolution |
1920x1080 |
|
Device Interface |
|
|
Power Port |
DC12V, |
|
POE |
802.3af Standard |
|
Relay(Dry Contact) |
Yes |
|
RS-485 |
Optional(CUSTOMIZED FUNCTION) |
|
Speaker(Audio) |
Yes (3W) |
|
MIC |
Yes (MEMS MIC for Noise and Aggression Detection) |
|
Deterrence Light |
Yes (RGB) |
|
Multi-Sensor Built-in |
|
|
Temp&Humidity Sensor, TVOC,CO,CO2,NO2,PM1.0,PM2.5,PM10,HCHO,Tamper Sensor,PIR,MEMS MIC |
|
|
Supported Events |
|
|
Vape/Masking/THC/Tampering/Motion/HI/AQI/PM2.5/TVOC/CO2/Temp/Humidity/HCHO/Noise/Aggression/ETOH |
|
|
General Information |
|
|
Power Supply |
DC12V 1A/POE |
|
Dimension |
5.7 x 2 in (146mm Ø x 51mm) Thick |
|
Weight |
1.1 lb (500g) (with Pendant Mount NPT 3/4” Threaded) |
|
Mounting |
Ceiling and Pendant Mount(with Pendant Mount NPT 3/4” Threaded) |
|
Tamper/Vandal |
Security Screw locked in with equivalent to IK8 rated vandal proof housing and with tamper sensor |
|
Housing Material |
ABS (Fire-proof) /IP30 |
|
Operation Environment |
32°F ~ 122°F (0°C ~ 50°C) and 5 ~90%(Relative Humidity) Non-condensation Indoor Applications |
|
Recommended Coverage Floor Area Per Detector (Indoor Applications) |
Air-conditioned open floor with ceiling height of: 2.7~3.0m: 15~18m² Mechanically ventilated amenities with ceiling height of 2.4~2.7m; Air lock doors and no full-height partitioning: 8~10m² |
Ordering
INVID-AQSENSOR: Vape Detector
