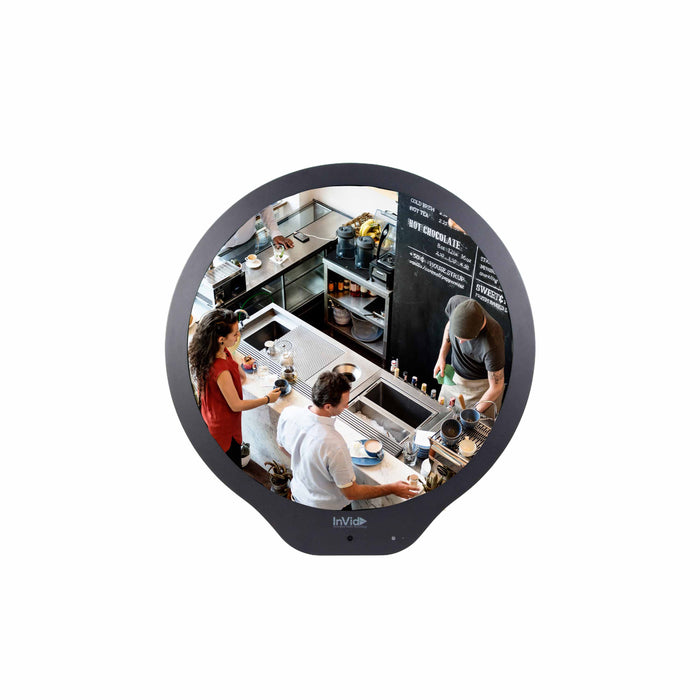

IMHD-24PVM-C: 24" Circular PVM Monitor
Description
24" 1080P IP Circular PVM Monitor, Built for 24/7 Performance
Features
- Built for 24/7 performance, ensuring continuous, reliable video surveillance for critical security environments
- Built in 1080p IP camera
- 120dB WDR for IPC
- 1920 x 1080 Resolution
- 350cd/m2 Brightness
- 5ms fast response time, no Image Ghosting
- HDMI 2.0 Input
- VGA Input
Specs
|
Model Name |
IMHD-24PVM-C |
|
Screen Size |
24'’ |
|
Active Display Area (mm) |
521.28mm(W)×293.22mm(H) |
|
Display Mode |
16:9 |
|
LED Type |
TFT-LED |
|
Resolution |
1920 × 1080 |
|
Display Color |
16.7M |
|
Pixel Pitch(mm) |
0.1926(H)×0.1790(V) |
|
Brightness(nits) |
350cd/m 2 |
|
Contrast Ratio |
1000:1 |
|
Viewing Angle |
178(H) /178(V) |
|
Response Time |
5ms |
|
Backlight |
LED |
|
Input & Output |
|
|
HDMI/VGA |
2/1 |
|
Remote control |
1 |
|
USB input (image input) |
1 |
|
Network(POE)/LAN OUT STORAGE |
1 |
|
SD Card record |
0 |
|
IP Camera |
|
|
H.265 2.0mp IP Camera Module, support NDAA |
|
|
1920 (H) X 1080 (V) approx. 2 million pixels |
|
|
Main stream: 1920X1080, 1280X720 (1~25/30fps) |
|
|
Support ONVIF/GB28181/SDK |
|
|
Power & Mount Way |
|
|
Power |
AC100-240V ,50/60Hz |
|
Working Temperature |
-22°F ~ 185°F(-30°C ~ 85°C) |
|
Power Consumption |
<30W |
|
Menu |
English(other languages supported) |
|
Mounting/Weight |
Stand mount, VESA mount/ 26.5lbs (12kg) |
|
MTBF |
50000Hours |
|
Accessories |
|
|
Included Accessories |
Industrial PSU,Screw, Cable holder, Quick start guide |
Ordering
IMHD-24PVM-C: 24" Circular PVM Monitor
