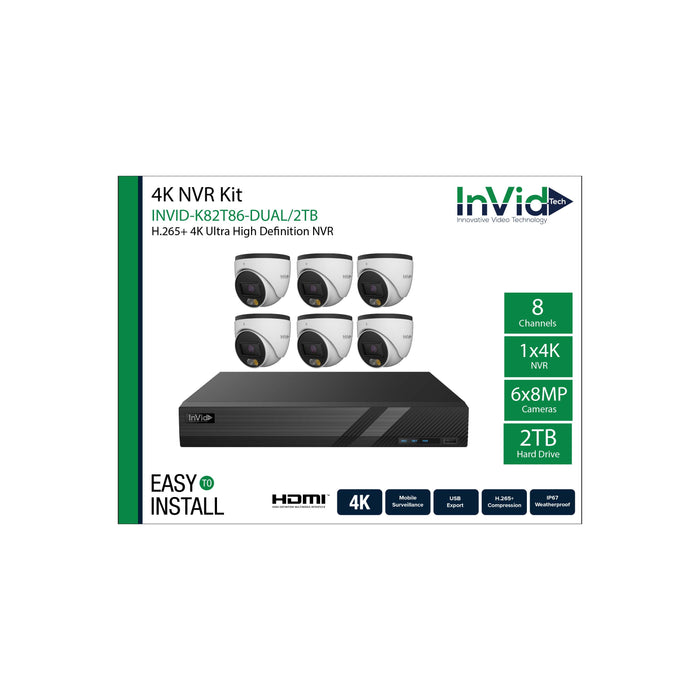

INVID-K82T86-DUAL: (6) 8-Megapixel Turret Cameras with (1) 8 Channel NVR Bundle

Camera

PAR-P8TXIR28-LC3

Image Sensor

1 / 2.8 "CMOS

Image Size

3840×2160

Electronic Shutter

1 / 3s ~ 1 / 100000s

Iris Type

Fixed Iris

Min. Illumination

0.02 lux @F1.6, AGC ON; 0 lux with illumination on

Lens

2.8mm@F1.6, Horizontal FoV: 106°;Vertical FoV:57°;Diagonal FoV:124°

Focus

Fixed

Lens Mount

M12

Day&Night

ICR

Wide Dynamic Range

120dB

BLC

Yes

HLC

Yes

Digital NR

Yes

Defog

Yes

S/N Ratio

≥50dB

Angle Adjustment

Pan: 0°~360°; Tilt:0°~75°;Rotation: 0°~360°


Video Compression

Main stream: H.265+ / H.265 / H.264+ / H.264

Sub /Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG

H.265 Compression Standard

Main Profile@Leve4.1 High Tier

Resolution

8MP(3840×2160),6MP(3200×1800), 4MP(2688×1520), 2K(2560×1440), 1080P (1920×1080), 720P (1280×720), D1, VGA (640×480), 640× 360, 480× 240, CIF

Main Stream

60Hz: 8MP(1~20fps) /6MP/4MP/2K/1080P (1~30fps)
50Hz: 8MP(1~20fps) /6MP/4MP/2K/1080P (1~25fps)

Sub Stream

720P/D1/VGA/640×360/CIF/480× 240 (60Hz: 1~30fps; 50Hz: 1~25fps)

Third Stream

720P/D1/640×360/CIF (60Hz: 1~30fps; 50Hz: 1~25fps)

Bit Rate

64 Kbps ~12Mbps

Bit Rate Type

VBR / CBR

Image Settings

ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. adjustable through client software or web browser

Audio Compression

G711A/U

ROI

8ROI, Each ROI to be configured separately

Interfaces

Network

RJ45

Video Output

No

Audio

1CH audio input; 1CH built-in MIC

Storage

Built-in micro SD card slot, up to 256GB

Reset

Yes

Functions

Remote Monitoring

Web browser/ Paramont NVR / Paramont CMS AI / Paramont CMS APP

Web Browser

Chrome 89.0+/Edge 89.0+/Firefox 87.0+/Safari 14.0+

Online Connection

Support simultaneous monitoring for up to 10 users;

Support multi-stream real time transmission

Network Protocol

UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, PPPoE, DDNS, SMTP, FTP, 802.1x, SNMP, UPnP, HTTP, HTTPS, HTTP POST, P2P, QoS

Interface Protocol

ONVIF (Profile T)

Storage

Network remote storage; micro SD card storage Up to 256GB

Smart Alarm

Motion detection, SMD, SD card full, SD card error, IP address conflict, cable disconnection, video exception (scene change, video blur and abnormal color detection)

Smart Event

Line crossing /region intrusion detection(human/motor vehicle/non-motor vehicle classification), abandoned/missing object detection

General Function

Watermark, IP address filtering, video mask, heartbeat, smart supplement light, corridor pattern, image distortion correction, ANR, cloud upgrade

PoE

Yes (IEEE802.3af)

Supplement Light Range

IR range: 98’; white light range: 98’

Ingress Protection

IP67

Security

Video encryption, firmware encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTP /RTSP

DORI Distance

Lens

Detect (ft)           Observe (ft)         Recognize (ft)           Identify (ft)

2.8mm

259 (79m)     105 (32m)           52 (16m)                   27 (8m)

Others

Power Supply

DC12V/PoE

Power Consumption

< 6.5W

Storage Conditions

-22°F ~ 149°F (- 30 °C ~ 65°C), Humidity: less than 95 % (non-condensing)

Operating Conditions

-22°F ~ 140°F (- 30 °C ~ 60 °C), Humidity: less than 95 % (non-condensing)

Dimensions

3.7 x 3.3” (Φ 94.6 × 82.8mm)

Weight ( net )

Approx. 1 lbs (0.45KG)

Installation

Ceiling mounting; wall mounting

Certificate

CE, FCC

Environmental Protection

Complies with Directive EU RoHS, WEEE(2012/19/EU) ,

directive 94/62/EC and REACH(EC1907/2006)

System

PN1B-8X8NH2

OS

Embedded Linux

Video

Network Input

8CH IPC input

Network Input Resolution

8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF

Output

HDMI × 1 : 3840 × 2160 / 1920 × 1080 / 1280 × 1024/ 1024 × 768
VGA: 1920 × 1080 / 1280 × 1024/ 1024 × 768

Screen Display Mode

1/4/6/8/9

Compression

H.265S /H.265+ / H.265 / H.264

Audio

Network Input

8 CH IPC audio input

Local Input

RCA × 1 (for two-way audio)

Local Output

RCA × 1

Compression

G.711(U/A)

Record

Resolution

8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF

Frame Rate

NTSC:30fps; PAL:25fps

Playback

Simultaneous Playback

Max. 8 CH

Search

Time slice / time / event / tag / smart search

Smart Search

Highlighted color to display the camera record in a certain period of time, different colors refers to different record events

Function

Play, pause, FF, FB, digital zoom, etc.

Decoding Capability

Live View/ Playback

1×8MP@30fps; 6×1080P@30fps

Alarm

Mode

Manual, sensor, motion, exception, smart events

Input

Supports IPC alarm input

Output

Supports IPC alarm output

Triggering

Record, snap, preset, e-mail, etc.

Network

Interface

RJ 45 × 1 (10/100/1000Mbps)

Protocol

TCP / IP, IPv4, IPv6, UDP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, HTTP, SMTP, HTTPs, 802.1x, RTSP, RTP, RTCP, WebSocket, SNMP, IGMP, ONVIF

Incoming/ Outgoing Bandwidth

80/80 (Mbps) *When the AI function of the IPC is enabled, the actual incoming bandwidth(max.bitrate) is more than the set value in the NVR.

Client Connection

Max. 64 users access

Face

Face Detection

Performance (AI by IPC)

8 CH (NH-AI Models)

Face Detection

Performance

(AI by Device ONVIF)

2 CH/ 2MP

Face Match Performance

No (Does NOT Support Facial Recognition)

Statistical Graph of Information

Bar graph

Statistical Mode of Information

Statistics by day, week, month, quarter as well as customized time period

Video Structure Analysis

Human/Vehicle Classification
(AI by IPC)

Up to 8 CH

Human/Vehicle Classification
(AI by Device)

2 CH

Human/Vehicle Attribute Analysis

Yes (AI by IPC)

Other Functions

Fisheye

Supports fisheye dewarping via Web Client and mobile APP

Plate Recognition (AI by IPC)

Up to 8 CH

Mobile Device

OS

iOS, Andriod

Storage

HDD Interface

SATA3.0 × 1, up to 18TB

Backup

Local Backup

USB, USB To HDD (1TB Max)

Network Backup

Yes

Port

USB

USB 2.0 × 2, USB to

Remote Controller

Included

PoE

PoE Ports

100M RJ45 × 8

Standards

IEEE802.3AF/AT

Output Power

≤ 72W

Others

Power Supply

DC 48V/1.8A

Consumption

≤ 10W ( without HDD )

Dimensions ( W × D × H )

11.8 x 9.8 x 1.7 In (300 × 249 × 45 mm)

Working Environment

14°F  ~ 122°F (-10°C ~ 50°C)10% ~ 90% humidity

Certificate

CE, FCC, ETL: 5025761

Environmental Protection

Complies with Directive EU RoHS, REACH and WEEE
