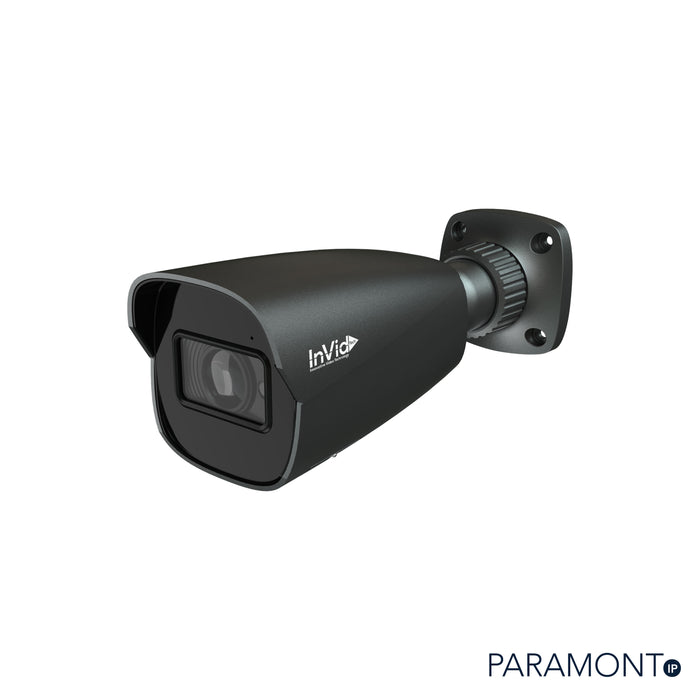

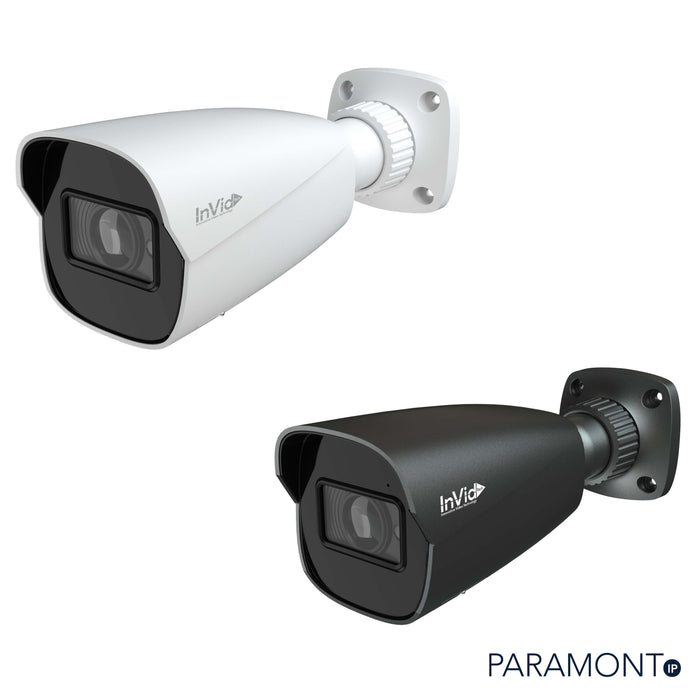

PAR-P8BIR28NH-AI: 8 Megapixel Bullet, 2.8mm
Description
8 Megapixel IP Plug & Play, Outdoor Bullet, True AI, Fixed Lens, Up to 98’ IR Range, True WDR, Audio Input, SD Card Slot, 12VDC/PoE
Features
- True AI Human and Vehicle Classification for Line Crossing and Intrusion Detection
- 8 Megapixel Resolution
- Fixed Lens
- True Day/Night with IR Range up to 98’
- H.265+ / H.265 / H.264+ / H.264
- 30 FPS Recording and Live
- True WDR 120dB
- Micro SD Slot: Up to 256GB
- Audio Input
- IP67 Weatherproof
- 12VDC/PoE Operation
- ONVIF
- Free iOS & Android Apps for Smart Phones & Tablets
- Free Central Management Software (CMS)
- Free MAC Client
NDAA Compliant Product-Learn More Here.
Specs
|
Model |
PAR-P4BIR28NH-AI |
|
Camera |
|
|
Image Sensor |
1 / 2.8 "CMOS |
|
Image Size |
3840×2160 |
|
Electronic Shutter |
Auto/Manual mode; manual: 1 / 3 s ~ 1 / 100000 s |
|
Iris Type |
Fixed Iris |
|
Min. Illumination |
0.02 lux@F1.6, AGC ON; 0 lux with IR |
|
Lens |
2.8mm@F1.6, Horizontal FoV:104°;Vertical FoV:55°;Diagonal FoV:125° |
|
Focus |
Fixed |
|
Lens Mount |
M12 |
|
Day & Night |
ICR |
|
Wide Dynamic Range |
120dB |
|
BLC |
Yes |
|
HLC |
Yes |
|
Defog |
Yes |
|
S/N Ratio |
≥50dB |
|
Digital NR |
3D DNR |
|
EIS |
Yes |
|
Angle Adjustment |
Pan: 0°~360°; Tilt:0°~90°; Rotation: 0°~360° |
|
Image |
|
|
Video Compression |
Main stream: H.265+ / H.265 / H.264+ / H.264 Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG |
|
H.264 Compression Standard |
Baseline Profile/Main Profile/High Profile |
|
Resolution |
8MP ( 3840 × 2160 ), 6MP( 3072 × 2048 ),5MP( 2592 × 1944), 4MP( 2592 × 1520 ), 2K ( 2560 × 1440 ), 3MP ( 2304 × 1296 ), 1080P ( 1920 × 1080 ), 720P ( 1280× 720 ), D1, CIF, 480 × 240, VGA(640×480) |
|
Main Stream |
8MP/6MP/5MP/4MP/2K/3MP/1080P/720P(60Hz:1~30fps; 50Hz:1~25fps) HFR Mode: 1080P/720P(60Hz: 1~60fps; 50Hz: 1~50fps) |
|
Sub Stream |
720P/D1/CIF/VGA/480 ×240(60Hz:1 ~ 30fps; 50Hz: 1 ~ 25fps ) |
|
Third Stream |
720P/D1/CIF/480 ×240(60Hz:1 ~ 30fps; 50Hz: 1 ~ 25fps ) |
|
Bit Rate |
64 Kbps ~ 12Mbps |
|
Bit Rate Type |
VBR / CBR |
|
Audio Compression |
G711A / U |
|
Image Settings |
ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. adjustable through client software or web browser |
|
ROI |
Each ROI to be configured separately |
|
Interfaces |
|
|
Network |
RJ 45 10M/100M self-adaptive Ethernet port |
|
Video Output |
No |
|
Audio |
1CH audio input |
|
Storage |
Built-in micro SD card slot; up to 256GB |
|
Reset |
Yes |
|
Alarm |
No |
|
Intelligent Analytics |
|
|
Smart Event |
Line crossing, region intrusion/entrance/exiting, loitering detection, illegal parking detection, abandoned/ missing object detection |
|
Statistics |
Target counting by line/area, heat map |
|
Exception Detection |
Scene change, video blur and abnormal color detection, audio exception |
|
Face Detection |
Face detection and face capture |
|
Video Metadata |
Simultaneously captures human body, motor vehicle and non-motor vehicle and extracts 13 human features, 5 motor vehicle features and 1 non-motor vehicle feature |
|
DORI Distance |
|
|
Lens |
Detect Observe Recognize Identify |
|
2.8mm |
272ft (83m) 108ft (33m) 56ft (17m) 26ft (8m) |
|
Functions |
|
|
Remote Monitoring |
Web Browser, Paramont DVR/NVR, Paramont CMS AI, Paramont CMS App |
|
Web Browser |
IE11(plug-in required)/Chrome 89.0+/Edge 89.0+/Firefox 87.0+/Safari 14.0+ |
|
Online Connection |
Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission |
|
Network Protocol |
UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTMP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, HTTP POST, 802.1x, UPnP, HTTPs, QoS |
|
Interface Protocol |
ONVIF(profile S, G, T, M) |
|
Storage |
Network remote storage; micro SD card storage |
|
Smart Alarm |
Motion detection, SD card error, SD card full, IP address conflict, cable disconnection |
|
General Function |
Watermark, video mask, heartbeat, image distortion correction, corridor pattern |
|
Security |
Video encryption, firmware encryption, HTTPS encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTP/RTSP |
|
PoE |
Yes , IEEE802.3af |
|
IR Distance |
98’ |
|
Ingress Protection |
IP67 |
|
Others |
|
|
Power Supply |
DC12V/PoE |
|
Power Consumption |
< 9W |
|
Storage Conditions |
-22°F~149°F (- 30 °C ~ 65°C), Humidity: less than 95 % (non-condensing) |
|
Operating Conditions |
-22°F~140°F (- 30 °C ~ 60 °C ), Humidity: less than 95 % (non-condensing) |
|
Dimensions |
8.6 x 3.2 x 3.2 in (217.8 × 80.5 × 80.3mm) |
|
Weight ( net ) |
Approx. 1.5lb (0.68KG) |
|
Installation |
Ceiling mounting; Wall mounting |
|
Certificate |
CE, FCC |
|
Environmental Protection |
Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) |
Accessories
IPM-JB6: Junction Box
IPM-PTZPOLE1: Pole Mount (Use with IPM-JB6)
IPM-PTZCORNER: Corner Mount (Use with IPM-JB6)
IPM-PM3: Pendant Mount (Use with IPM-JB6)
IPM-JB6B: Junction Box, Black
Ordering
PAR-P8BIR28NH-AI: 8 Megapixel Bullet, 2.8mm
PAR-P8BIR28BNH-AI: 8 Megapixel Bullet, 2.8mm, Black
