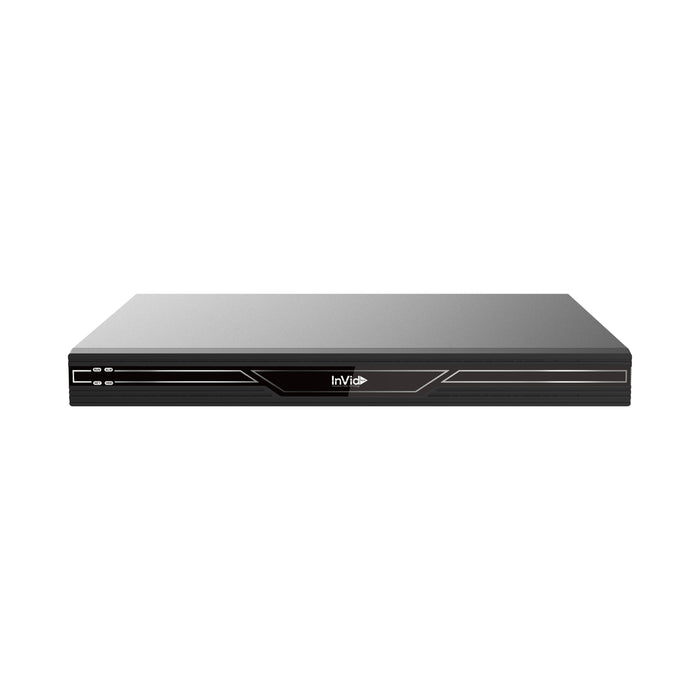

VS1A-MIDSERVER: Mid Size Server

Model

VS1A-MIDSERVER

Live view

Play live video by channel or view. 1/3/4/5/6/7/8/9/10/13/16/17/25/32/36/64 image display on single screen (64-image display is not available on the local client).

Custom window layout. 3/7 window layout in corridor mode; Up to 3 auxiliary

monitors (not support on local client); Supports view, sequence, snapshot, digital z

oom, PTZ control, patrol, fisheye, 5ePTZ, panoramic linkage, multi-sensor mode, instant playback, recording, watermark, etc.

Playback

Playback

Play recordings saved on VMS or NVR. Playback types: normal recording, tagged recording, locked recording, smart recording playback, event recording, VCA recording. Normal recording playback supports 1/3/4/5/6/7/8/9/10/13/16 window layout. Max 16-channel synchronous playback on a single client (depending on NVR’s stream output performance). Playback speeds: -256x, -128x, -64x, -32x, -16x, -8x, -4x, -2x, -1x, 1/4x, 1/2x, 1x, 2x, 4x, 8x, 16x, 32x, 64x, 128x, 256x (depending on NVR’s stream output performance) Supports snapshot, digital zoom, clipping,

locking, tagging, rewinding/forwarding 30 seconds, zooming in/out on the timeline, synchronous playback, recording preview on timeline, watermark, etc. Download recordings by file, time, etc.

E-map

E-map

Supports local and online (AMAP) maps; map files support jpg, png, and bmp formats. Add, delete, edit, and search maps, hot spots (video channel, alarm input, access control) and hot zones. Allows user to choose or customize hot spot icons. Live view (max 4 channels) and playback (max 16 channels) on map. Blinking alarm on map; view/clear alarms. 800MB storage space for map resources, max 7 layers of maps.

Video wall

Video wall

Supports multiple models of decoding devices to create video wall.

Allows user to add, delete, edit, search video wall; editable information includes video wall name, size, resolution, bind/unbind decoding channels.

Live view, playback, and sequence display on video wall. Save settings as a scene for quick restoration of settings when needed. Play signal source on video wall, virtual LED configuration, screen on/off control.

Alarm configuration

Alarm management

Alarm subscription, alarm level customization, alarm time template, email contacts management (BS client). Alarm plan configuration: add/delete/edit/search/enable/disable alarm plan; configure alarm linkage actions: live view, goto preset, alarm output, alarm to video wall (BS client also supports email and buzzer). Alarm records search: realtime alarm records, history alarm records; history alarm records support search by alarm source, time, alarm status, alarm time, alarm level.

Audio

Two-way audio

Choose a device for two-way audio. The live video from the device is displayed.

User can start/stop two-way audio, adjust sound volume of MIC and speaker. The status bar shows two-way audio status. (Not available on the local client)

Broadcast

Add, delete broadcast group members, start/stop broadcast. Choose one audio channel from the broadcast group to play audio. Adjust local input and output sound volume. (Not available on the local client)

Access control

management

Manual access control

Search doors, view status, open/close doors.

Door entry/exit records

Search entry/exit records, view status, reset/export.

Visitor info

management

Sign in/out visitors, configure permission group/blocklist. Edit visitor information, view visitor status.

Access control

monitoring

Manage the blocklist library and use it for monitoring.

Blocklist alarm records

Search, view status, reset/export.

Attendance

management

Search attendance statistics by time range, department, name, person ID;

export search results.

Face detection

Face library

management

Add, delete, edit, and search face libraries; max. 128 face libraries.

Add, delete, assign, remove, import, export faces in batches, search faces by name, ID card number, gender, etc.

Face monitoring

management

Monitoring type: match alarm, not match alarm.

(Alarm records can be searched in the data search module)

Face realtime

monitoring

View live video of monitoring cameras, snapshots and comparison records.

(Passing people records can be searched in the data search module).

Checkpoint

monitoring

Vehicle library management for checkpoint

Add, delete, edit, search vehicle library information, max 16 vehicle libraries.

Add, delete, assign, remove, import, and export vehicles in batches, search

vehicles by plate number, plate type, vehicle color, plate color, etc.

Vehicle monitoring

Cause of monitoring: robbed vehicle, stolen vehicle, suspect vehicle, traffic violation, emergency control. (Alarm records can be searched in the data search module)

Checkpoint realtime monitoring

View live video of monitoring cameras. (Passing vehicle records can be searched in data search module).

People counting

Statistical resource management

Supports filtering areas and channels by keyword.

People counting area

Add, edit, delete people counting areas; max 8 detection areas, each area includes up to 32 channels. Configure alarms, area name, push cycle, people present alarm thresholds (critical/major/minor), and channels.

Crowd density

detection area

Add, edit, delete crowd density monitoring areas, max 16 areas, each area allows one video channel. Configure alarms, area name, push cycle, crowd density alarm thresholds (critical/major/minor), and channels.

Area preview

Double-click a channel in the people counting area to view the live video in the 4-window area.

Realtime statistics

Displays counting results (people in/out/staying/how many more allowed) and access status on the right side and updates in real time. Crowd density (current number of people, how many more allowed), area status.

Reports and statistics

Count by minute/hour/day/month. Support line chart and column chart display, and display entering/leaving/staying statistics separately or in combination. Display entering/leaving/staying statistics of a certain time period or of a channel, export counting statistics.

Mixed-traffic

detection

Mixed-traffic

detection

Real-time monitoring and snapshot record display for motor vehicle/non-motor vehicle/pedestrian.

Face detection records: search by channel, time, gender, age, etc.

Pedestrian detection records: search by channel, time, gender, age, upper

garment style/color, lower garment style/color, shoes, and backpack style.

Non-motor vehicle detection records: search by channel, time, vehicle type, driving direction, speed; associated facial feature information.

Motor vehicle detection records: search by channel, time, plate number, vehicle type, plate color, plate type, color logo, driving direction, speed, and vehicle color.

Behavior search

Device data search

Search VCA alarm snapshots and recordings by criteria including time range and alarm type (cross line detection, intrusion detection)

VMS data search

Search alarm snapshots and recordings by all/pedestrians/non-motor vehicles/motor vehicles, time range, and alarm type (cross line detection, intrusion detection, enter area, leave area).

Data search

Face search

Search by attribute, event, and by image:

1. Search by attribute:

(1) Search conditions: channel name, snapshot time, gender, age, etc; search records support search by image.

(2) View alarm image and recording, object features.

(3) Data export.

2. Search by event:

(1) Search conditions: monitoring type (match alarm, not match alarm), alarm source, alarm time, name, ID number, alarm source, gender, etc.

(2) View alarm image and recording, object features.

(3) Data export.

3. Search by image: Search people pass-through records on NVR and search for an image in a face library on VMS using a face library image (VMS) or a local uploaded face image; view alarm image and recording.

Pedestrian search

1. Search conditions: channel name, snapshot time, gender, age, upper

garment style/color, lower garment style/color, shoes, backpack style.

View alarm images and object features. Data export.

Motor vehicle search

Search by attribute and event:

1. Search by attribute:

(1) Search conditions: channel name, snapshot time, plate number, vehicle type, plate color, plate type, vehicle logo, driving direction, speed, vehicle color.

(2) View alarm image and recording, object features.

(3) Data export.

2. Search by event:

(1) Search conditions: monitoring type (match alarm, not match alarm), alarm source, alarm time, plate number, plate color, monitoring cause, vehicle color.

(2) View alarm image and recording, object features.

(3) Data export.

Non-motor vehicle search

Search conditions: channel name, snapshot time, vehicle type, driving

direction, speed. View alarm images and object features. Data export.

O and M statistics

Log search

View, acknowledge alarm logs, view operation logs

Storage performance

Storage performance

Network disk: Supports external network hard disk (IPSAN) storage; supports configuration of recording schedules for up to 100 channels; recording schedule only supports the Schedule type

Management

performance

Total device

management

capability

250

Total channel

management

capability

500

Cloud device

management

capability

250

GB/T28181 device management

capability

100

Onvif device

management

capability

250

Smart encoding device management capability

100

Access control device management capability

128

Decoding device

management

capability

30

Network keyboard management

capability

50

Network disk

8

Security gateway device management capability

128

User management capability

500

Concurrent online user management capability

50

Replica server

management capability

Not support

Stream performance

Incoming bandwidth

512Mbps

Outgoing bandwidth

384Mbps

Image performance

Number of smart

image storage streams

256 channels

Image push

performance

100 images per second

Alarm performance

Alarm receiving and forwarding

performance

100 alarms per second

Data storage

performance

Max storage for

alarm logs

20W

Max storage for operation logs

20W

Max storage for face snapshot records

300W

Max storage for face alarm records

300W

Max storage for passing vehicles

300W

Max storage for

structured vehicle/

pedestrian records

300W

Operating

temperature

Operating

environment

temperature

14°F ~ 131°F (-10°C to 55°C) (recommended: 0°C to 50°C)

Operating humidity

Operating

environment humidity

10RH% to 90RH% (noncondensing)

Operating system

Operating system

Linux

RAM

RAM

4GB

HDD

HDD

1 (No HDD is included at delivery)

Interface

USB

4*USB3.0

VGA interface

1

HDMI interface

1

RS485

1

RS232

1

Alarm

24 in, 8 out

Storage expansion interface

n/a

Network interface

Network interface

GE × 4

Power

12V DC output

1

Primary power input

n/a

Power

100V to 240V AC input, 50Hz/60Hz

Expansion power

module slot (PSU1)

n/a

Total power

consumption

Total power

consumption

Max. 40W

Physical size

Dimensions (with front panel) (H x D x W)

1.9 x 13.6 x 17.3in (48 × 345.5 × 440mm) /1U

(front panel is not removable)

Weight

Weight

8.8 lbs (≤4kg) (without HDD)

Client computer

requirements

Client computer

requirements

64-bit version:

OS: Microsoft Windows 7/Windows 8/Windows 10, 64-bit CPU: Intel Core i5 3.1 GHz or higher RAM: 4GB or higher 32-bit version:

OS: Microsoft Windows 7/Windows 8/Windows10, 32/64-bit

CPU: Intel Pentium IV 3.0 GHz or higher, 4 Cores, 3.0GHz is recommended RAM: 2GB or higher Note: 64-bit operating system needs to be compatible with the 32-bit version software Mac version: OS: Mac OS 10.11 or higher

CPU: Intel Core i5 3.1 GHz or higher RAM: 4GB or higher
