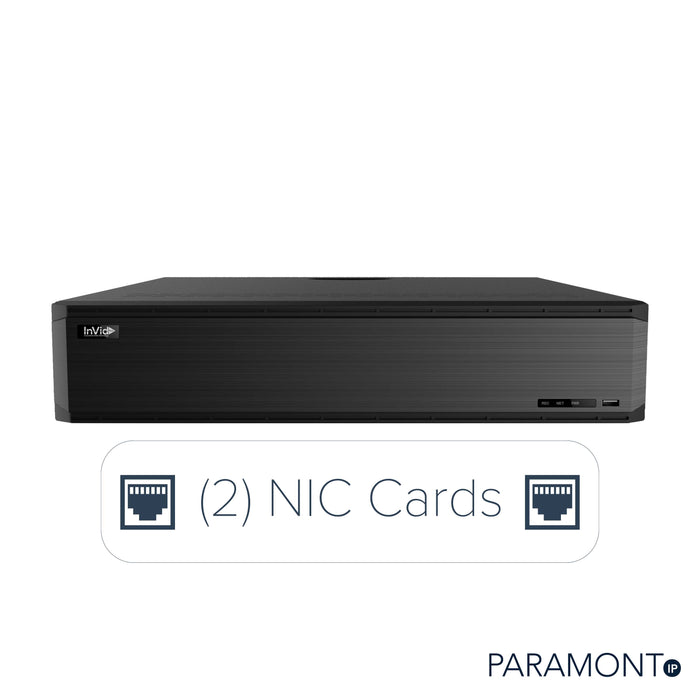

PN3A-32X16FNH2: 32 Ch NVR with 16 PnP Ports, (2) NIC Cards
Description
32 Ch NVR with 16 Plug & Play Ports, True Facial Recognition, 320 Mbps, (2) NIC Cards, 8 HD Bays, 4K, with AccuSearch
Features
- 16 Plug & Play Ports for easy camera setup PoE(Power Over Ethernet) available on all ports
- Up to 16 Megapixel Resolution Recording
- (2) NIC Cards: Connect Cameras 1-16 via PnP intounit. Connect cameras 17-32 via switch behindclosed network
- Supports Facial Recognition on up to 6 channels, or 3 channels when AccuSearch is enabled
- 320 Mbps Bit Rate Input
- Supports up to 16 channel simultaneous playback
- Works with ONVIF or other supported IP cameras
- Multiple video search options including Analytic andThumbnail Search for quick retrieval of footage
- AccuSearch: One-click targeted search by matching appearance details across all recordings
- Outputs - 1 HDMI (4K), 1 HDMI (1080p), VGA (1080p)
- True P2P Connectivity with QR Code Connect
- Cloud Upgradeable
- Free iOS & Android Apps for Smart Phones & Tablets
- Free Central Management Software (CMS) for PC/MAC
*3 Channels if ACCU-Search is Enabled
NDAA Compliant Product-Learn More Here.
Specs
Model |
PN3A-32X16FNH2 |
System |
|
|
OS |
Embedded Linux |
Video |
|
|
Compression |
H.265S/H.265+/H.265/H.264 |
|
IP Video Input |
32CH IPC input |
|
Resolution |
16MP/12MP/9MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/ 960P/ 720P/960H/D1/CIF |
|
Network Bandwidth |
320Mbps/320Mbps(incoming/outgoing)*When the AI function of the IPC is enabled, the actual incoming bandwidth(max.bitrate) is more than the set value in the NVR. |
|
Output |
HDMI1 : 3840 × 2160/1920 × 1080 / 1280 × 1024 / 1024 × 768 HDMI2 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA ×1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA and HDMI1 output the same video source |
|
Multi-screen Display |
Main output: 1/4/6/8/9/13/16/25/32/36 (live view) AUX output: 1/4/6/8/9 (live view) Max. 32+9CH local live view |
Audio |
|
|
Network Input |
32 CH IPC audio input |
|
2-way Audio |
RCA × 1 |
|
Local Output |
RCA × 1 |
|
Compression |
G.711(U/A) |
Record |
|
|
Record Stream |
Dual stream recording |
|
Resolution |
16MP/12MP/9MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/ 960P/720P/960H/D1/CIF |
|
Frame Rate |
NTSC: 30fps; PAL: 25fps |
Playback |
|
|
Simultaneous Playback |
Max 16CH |
|
Search |
Time slice / time / event / tag / smart search |
|
Smart Search |
Highlighted color to display the camera record in a certain period of time, different colors refers to different record events |
|
Function |
Play, pause, FF, FB, digital zoom, ACCU-Search, etc. |
Decoding Capability |
|
|
Live View/ Playback |
Non-AI Mode: 1×16MP@30fps/4×8MP@30fps/9×3MP@30fps/16×2MP@30fps AI Mode:1×16MP@30fps/4×6MP@30fps/9×3MP@30fps/16×720P@30fps |
Alarm |
|
|
Mode |
Manual, sensor, motion, exception, smart events, etc. |
|
Input |
16 CH local alarm input |
|
Output |
4 CH |
|
Triggering |
Record, snap, preset, e-mail, etc. |
Face |
|
|
Face Detection Performance (AI by IPC) |
32CH (PAR-P2FACE/NH-AI Models) |
|
Face Detection Performance (AI by Device) |
Picture comparison/ACCU-Search disabled: 2 CH(2MP) or 1CH (4MP) Picture comparison/ACCU-Search enabled: 1CH(2MP) or 1CH (4MP) |
|
Face Recognition Performance |
Picture comparison/ACCU-Search disabled: 6 CH Picture comparison/ACCU-Search enabled: 3CH |
|
Comparison Capability |
18 pictures / second |
|
Face Picture Database |
32 libraries 10000 Face Pictures |
|
Face Picture Search |
Search by picture is supported |
|
Database Management |
Add, modify, delete and search face pictures |
|
Face Picture Adding |
Add face pictures through APP, WEB and external import |
|
Face Picture Comparison |
Support successful face recognition alarm and stranger match alarm |
|
Track |
Track display on a map |
|
Statistical Graph of Information |
Bar graph |
|
Statistical Mode of Information |
Statistics by day, week, month, quarter as well as customized time period |
Perimeter Protection |
|
|
Human/Vehicle Classification (AI by IPC) |
32CH |
|
Human/Vehicle Classification (AI by Device) |
Picture comparison/ACCU-Search disabled: 2 CH(2MP) or 1CH (4MP) Picture comparison/ACCU-Search enabled: 1CH(2MP) or 1CH (4MP) |
Video Metadata |
|
|
Human/Vehicle Attribute Analysis (AI by IPC) |
Yes |
ACCU-Search |
|
|
Video Metadata enable |
Attribute ACCU-Search including posture, height, behaviors etc |
|
Face Detection enabled |
Face specific ACCU-Search. Not specifically as accurate as facial recognition but will be looking for those faces detected (based on clarity of snapped photo), not attributes |
Other Functions |
|
|
Fisheye |
Supports fisheye dewarping via NVR/Web Client/mobile APP |
|
Plate Recognition (AI by IPC) |
Yes |
Network |
|
|
Interface |
RJ 45 1000 Mbps × 2 |
|
Protocol |
TCP / IP, HTTP, HTTPs, 802.1X, FTP, DHCP, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IPv6, IPv4, UDP, WebSocket, PPPoE, SNMP, IGMP |
|
Client Connection |
Max. 128 users access |
PoE |
|
|
PoE Port |
RJ 45 100Mbps × 16 |
|
Standard |
IEEE802.3AF/AT |
|
Output Power |
≤ 150W |
Mobile Device |
|
|
OS |
iOS, Andriod (Paramont CMS app) |
Storage |
|
|
HDD Interface |
SATA × 8, max 26TB for each HDD |
|
E-SATA Interface |
E-SATA × 1 (Max Single Drive, up to 26TB, For recording only) |
Backup |
|
|
Local Backup |
USB, USB To HDD (Max 1TB) |
|
Network Backup |
Yes |
External Interface |
|
|
RS 485 |
Yes (full-duplex), connect to PTZ or keyboard |
|
USB |
USB 3.0 × 1 ; USB 2.0 × 2 |
|
Remote Controller |
Included |
Others |
|
|
Power Supply |
ATX 300W(PoE) |
|
Consumption |
≤ 30W ( without HDD and PoE power supply ) |
|
Certificate |
CE, FCC |
|
Environmental Protection |
Complies with Directive EU RoHS, REACH and WEEE |
|
Dimensions ( W × D × H ) |
17.5 x 17.2 x 3.5 in (445 × 436 × 90 mm) |
|
Working Environment |
14°F ~ 122°F (-10°C ~ 50°C) 10% ~90% humidity |
Ordering
PN3A-32X16FNH2: 32 Ch NVR with 16 PnP Ports
