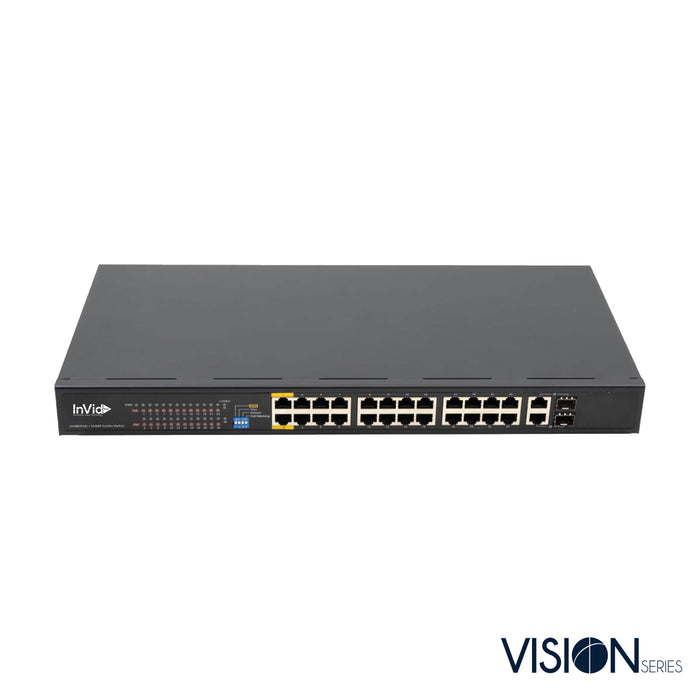

VIS-GIGPOE24-2++: 24 Ports Gigabit PoE Ethernet Switch
Description
24+2x RJ45+ 2X SFP Full Gigabit, 19” Rack Mountable Case, 400W UL Listed, With 2 Uplink Port
Features
- Complies with IEEE 802.3, IEEE 802.3i/u/af/at/
- 24-Port 10/100/1000Mbps supports 52V DC output
- 2-Port PoE++, 90W Output (Port 1 & 2)
- Complies with IEEE 802.3af/at Power over Ethernet
- Provides 400W Built-in power supply
- 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
- Made of metal, rack-mount design, with fan cooling
- UL certification
NDAA Compliant Product-Learn More Here.
Specs
|
Model |
VIS-GIGPOE24-2++ |
|
Power |
|
|
Power Supply |
Built-in power supply |
|
Voltage Range |
AC 100~240V |
|
Consumption |
The device <5W |
|
Indicator Light |
One power light (green) |
|
PoE Power |
400W for 24 PoE Port |
|
PoE Port |
24 PoE ports. Ports 1 & 2 support IEEE802.3af/at/bt (up to 90w), Ports 3-24 support IEEE802.3af/at (15-30w) |
|
Ethernet |
|
|
Speed |
PoE Port: 24 10/100/1000Mbps RJ45 Port Uplink: 2 Gigabit Combo Port |
|
Transmission Distance |
100Meter (328ft) for RJ45 2Km 20Km for SFP Port The optical |
|
Transmission Media |
Cat5e/6 standard UTP cable Based on the optical module used |
|
Ethernet Standard |
IEEE 802.3 / 802.3i / 802.3u / 802.3ab / 802.3z / 802.3af/at |
|
Switching capacity |
52Gbps |
|
Transfer Rate |
14880pps for 10Mbps 148800pps for 100Mbps 1488000pps for 1000Mbps |
|
LINK/ACT Indicator (Green) |
|
|
Light on |
The port is connected |
|
Light blinks |
The port is receiving or transmitting data |
|
Light off |
The port is not linked successfully with the device |
|
PoE Indicator (Orange) |
|
|
Light on |
PD is connected |
|
Light off |
No PD is connected or power forwarding fails |
|
PoE pin assignment |
PoE pin assignment: V+(RJ45 Pin 1,2), V-(RJ45 Pin 3,6) |
|
Environment |
|
|
Working Temperature |
32°F ~ 104°F(0°C ~ 40°C) |
|
Storage Temperature |
-40°F ~ 158°F (-40°C ~ 70°C) |
|
Humidity Non condesing |
0~90% |
|
Mechanical |
|
|
Dimension L * W * H |
17.3 x 7.9 x 1.7 in (440mm*200mm*44mm) |
|
Weight |
3.1kg |
|
Color |
Gray |
|
Certification |
UL |
Ordering
VIS-GIGPOE24-2++: 24 Ports Gigabit PoE Ethernet Switch
