INVID-SP24WSTROBE: IP Strobe Speaker
Description
IP Strobe Speaker
Features
- PoE++ and DC9-36V Powered,45W Max
- Talk-Down and Listen(Dual Mic), 120dB Max (IP Based)
- Front RGB Light for Deterrence, 19W Max; Back RGB Light for Background Environment
- Support Pre-Recorded Audio Play, Scheduled Broadcast
- Support Line-in Audio
- Alarm Input & Output Terminal Blocks (Used for Triggered Events)
- Onvif & SIP Compliant, HTTP API Alarm Notification
- Amplified Audio up to 24w
- With strong GPU/NPU and CPU, IP strobe speaker supports further customized software development
- Works with Paramont/Vision NVRs & IPCs
* Designed to work with CHEKT Bridges

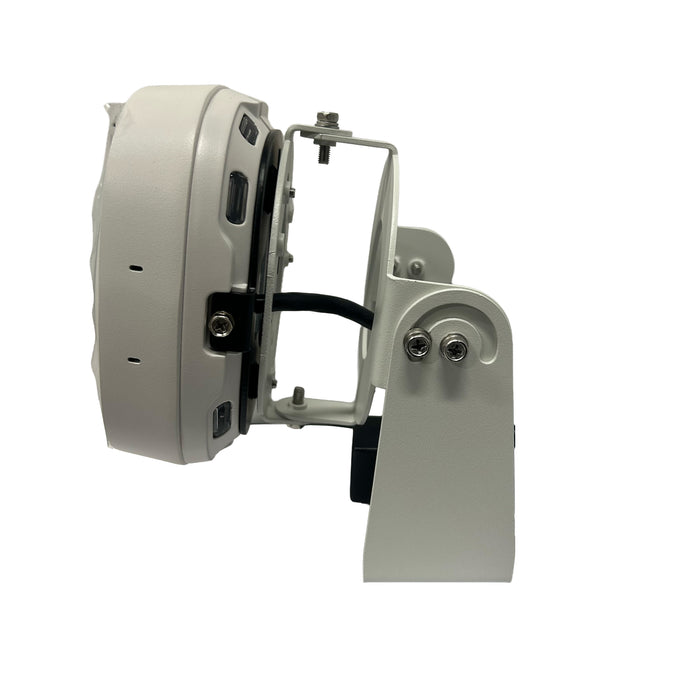

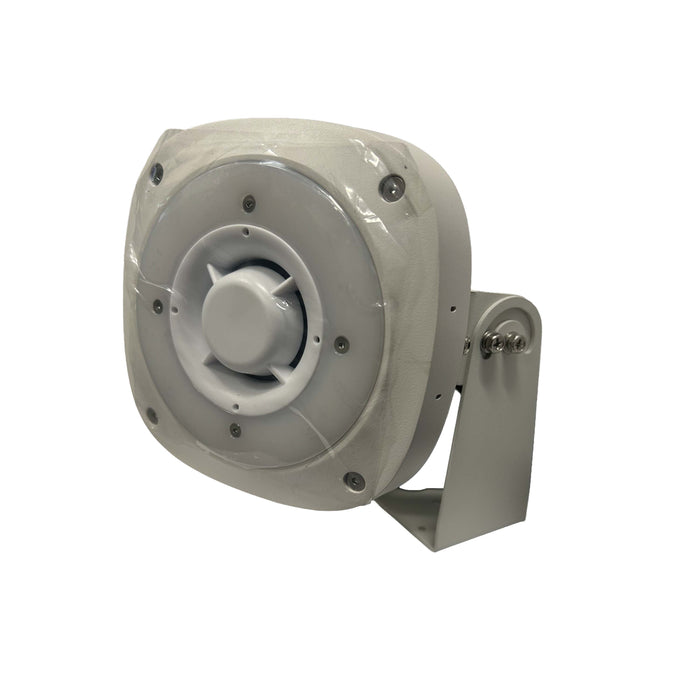

* Comes with Wall mount bracket (Seen in pictures)
Spec
|
Model |
INVID-SP24WSTROBE |
|
Main Chipset Solution |
|
|
CPU |
Quad-core ARM Cortex-A55 |
|
GPU |
Mali-G5 2-2EE |
|
NPU |
1 TOPS,Support INT8/INT16/FP16/BFP16 MAC hybrid operation |
|
DDR |
1GB LPDDR4 |
|
EMMC |
8GB |
|
Lights |
|
|
Front Light |
RGB, 19W Max Color:Green/Blue/Red/White/Yellow/Violet/Cyan Pattern: Steady/Breathe/Strobe(Support Strobe Frequency) |
|
Back Light |
RGB,0.8W Color:Green/Blue/Red/White/Yellow/Violet/Cyan Pattern: Steady/Chase |
|
Speaker/Audio |
|
|
Power |
Amplifier 24W Max, 120dB Max |
|
Max sound pressure level |
120dB |
|
Frequency response |
20HZ-20KHZ |
|
Pre-Recorded Audio |
WAV,MP3 8K/16K MONO |
|
Audio Codec |
AAC,G711U,G711A |
|
Mic |
Dual Mic |
|
Wi-Fi |
|
|
Wi-Fi |
2.4Ghz, for Fast Installation Only |
|
Interfaces |
|
|
PoE&RJ45 |
Yes, PoE++,10/100M Base-TX |
|
DC Input |
Yes, DC9-36V Wide Range |
|
Power Consumption |
Default: 2W Max(PoE) 2.6W Max(DC) Front Red/Blue Led 100%: 9W(PoE) Front White Led 100%: 23-25W(PoE) Back Red/Blue Led 100%:3W (PoE) Audio 90%: 13W Max(PoE) Audio 100%: 19W Max(PoE) Back Red/Blue & Front Red/Blue Leds 100% & Audio 100%: 25W Back White & Front White 100% & Audio 100%: 46W Max |
|
Alarm |
In & Out |
|
Audio Input |
Yes |
|
Factory Reset Button |
Yes |
|
Network |
|
|
Protocols |
ONVIF, HTTP/HTTPs, IPv4, IPv6,DHCP, RTSP, RTP, RTCP, TCP, UDP, ARP, NTP,TFTP, NFS,SNMP, SIP |
|
General |
|
|
Material |
Aluminum plus ABS PC |
|
Weight and Dimension |
3.97lbs (1.8KG), 5.7 x 2.1 in (146mm x 54.5mm) (Including Installation Plate) |
|
Outdoor |
IP66 Rated |
|
Operation Temp. |
-13 °F ~ 122°F (-25°C ~ 50°C) Degree |
Ordering
INVID-SP24WSTROBE: IP Strobe Speaker
