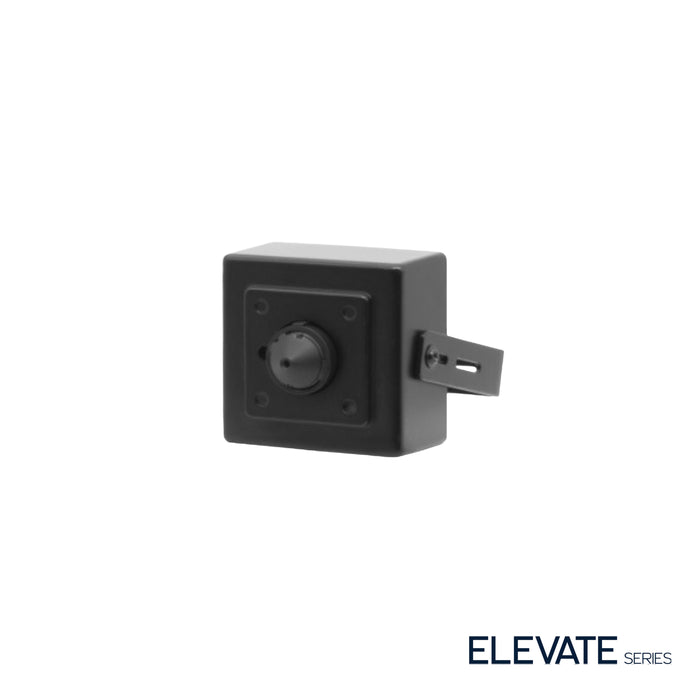

ELEV-P4MIPBA28NH: 4 Megapixel Metal Case Camera, 2.8mm

Camera

ELEV-P4MIBPA28NH

Image Sensor

1/3'' Cmos Sensor

Min. Illumination

0.05 lux

FOV

2.8mm @ F2.5 Horizontal FOV: 108°, Vertical FOV: 58°, Diagonal FOV: 126°

Signal System

PAL/NTSC

Shutter Time

1/25 s to 1/10,000 s

Lens

2.8mm Pinhole Lens

Image Enhancement

BLC/3D DNR/D-WDR

Motion Detection

Support

Intelligent Detection (AI)

No

Privacy Protection

Support(4 Self-customized Areas)

Wather-Proof

Indoor Only

Compression  Standard

Video Compression

H.265/H.264

Video Bit Rate

512Kbps~6144Kbps(main stream H.265)

64kbps~1024Kbps(sub stream H.265)

Audio Compression

G711U/G711A/AAC

Dual Streams

Yes

Triple Streams

No


Max. Image Resolution

2560*1440@25fps(4MP)/1920*1080@30fps

Frame Rate

25fps(4MP).MAX main stream 25fps(D1) .MAX sub stream

Image Settings

3D NR, D-WDR, Image Flip, Saturation, Brightness, Contrast, Sharpness
adjustable via client software, web browser or Smartphone App

IR Cut Filter

Yes

Mirror Image

Yes

D-WDR

Yes

Digital Moise Reduction

3D-DNR

Audio

Line IN/line OUT

No

Build-in MIC

Yes

Volnume adject

Yes

Network

Network Protocols

HTTP, TCP/IP, IPv4/v6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS,
DDNS,RTMP,IP Search(Support P2P, NVR, NVS etc.)

System Compatibility

ONVIF(17.2 with profile S)

On-line Viewing

Max. Support 2 Users Simultaneously

Interface

Communication Interface

1 RJ45 10M / 100M Ethernet Interface

RCA Audio Interface

No

Alarm in/out interface

No

DC Power Plug

DC Power Femate Interface

General

Operating Conditions

14°F ~ 140°F (-10 °C ~ 60 °C) Humidity 95% or less (non-condensing)

Power Supply

12 V DC ± 10%/PoE

Power Consumption

12 VDC ± 10%, Max Power Comsumption Less than 8W (When the infrared lamps turn on)

Weight

.4 lbs (0.18KG)

Dimensions (L x W x H)

1.8 x 1 x 1.8 in (46 x 25 x 46mm)
