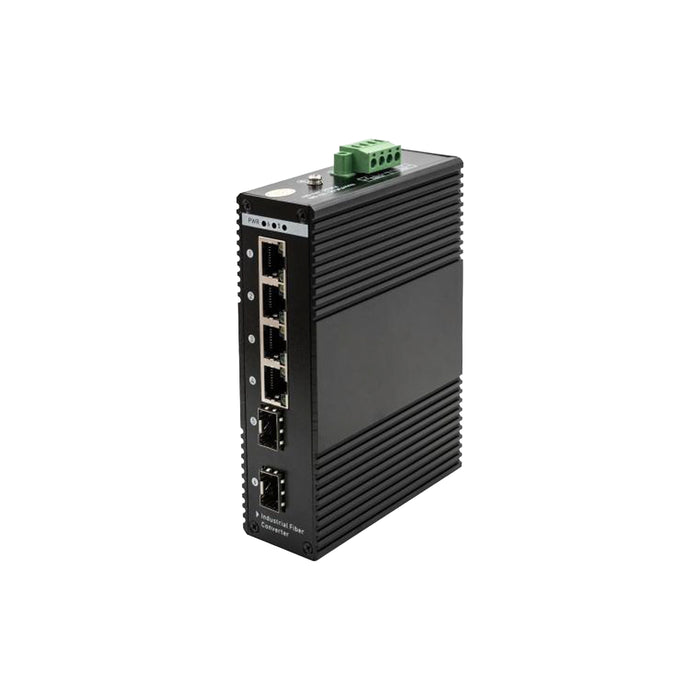

INVID-POE3606-4BT: 4-Port PoE Switch
Description
4 Gigabit Electrical ports+2 Gigabit optical ports PoE Switch
Features
- Dual dip switch, controlling the ring network and Vlan
- Supports full duplex or half duplex mode with automatic negotiation capability
- The network port supports automatic flipping (Auto MDI/MDIX)
- Adopting store and forward technology, supporting multiple protocols
- Support IEEE 802.1Q VLAN, easy network planning
- Support ring network to ensure network security
- Working power supply: DC 12-52V provides reverse protection
- 1x4 /SFP fiber optic interface optional
- 4 X 90W, HI-Power, PoE++, 802.3bt output
NDAA Compliant Product-Learn More Here.
Specs
Model |
INVID-POE3606-4BT |
|
RJ45 port |
10/100/1000BaseT (X) automatic detection, full/half duplex MDI/MDI-X adaptive |
|
Fiber port |
1000BaseFX port (SFP optional), optical port supports 100Mbps/1G |
|
Network protocol |
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u; 100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; IEEE802.1Q -VLAN Tagging |
|
Work environment |
Working temperature: -40°F ~ 176°F (-40 ~ 80°C) |
|
Industry standards |
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A EMS : IEC (EN) 61000-4-2 (ESD): ± 8kV contact discharge, ± 15kV air discharge IEC(EN)61000-4-3(RS) : 10V/m(80~1000MHz) IEC(EN)61000-4-4(EFT): Power cord: ± 4kV; Data cable: ± 2kV IEC(EN)61000-4-5(Surge): Power cord: ± 2kVCM/± 4kVDM; Data cable: ± 4kV IEC (EN) 61000-4-6 (Radio Frequency Conduction): 3V(10kHz~150kHz),10V(150kHz~80MHz) IEC (EN) 61000-4-16 (Common Mode Conduction): 30V cont. 300V,1s Shock: IEC 60068-2-27 Freefall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
|
Exchange attributes |
Application level: Second layer backplane Total bandwidth: 14Gbps Whole machine packet forwarding rate: 30Mpps MAC table: 8K Packet buffer: 2M Switching latency:< 10 μ s Exchange method: Store Forward Machine Power consumption: 5W |
|
Network security |
loop detection |
|
Management and maintenance |
Support web management and port mirroring |
|
Power Supply |
Input voltage: DC12-52V (dual power redundant backup) Connection terminal: Phoenix terminal, supporting reverse connection protection |
|
Mechanical characteristics |
Shell: IP40 protection level, metal shell Installation: DIN rail type, wall mounted installation Heat dissipation method: natural cooling, fan-less |
|
Weight |
1.4 lbs (0.64Kg) |
|
Dimensions (L x W x H) |
5.9 x 4.5 x 1.9 in (150 x 115 x48mm) |
|
Redundancy technology |
Support ERPS |
|
Group multicast technology |
IGMP snooping |
|
LED indicators |
Power indicator light: PWR Interface indicator lights: electrical port, optical port (Link/ACT) |
|
Protection level |
IP40 |
|
Mean time between failures |
300000 hours |
Ordering
INVID-POE3606-4BT: 4-Port PoE Switch
