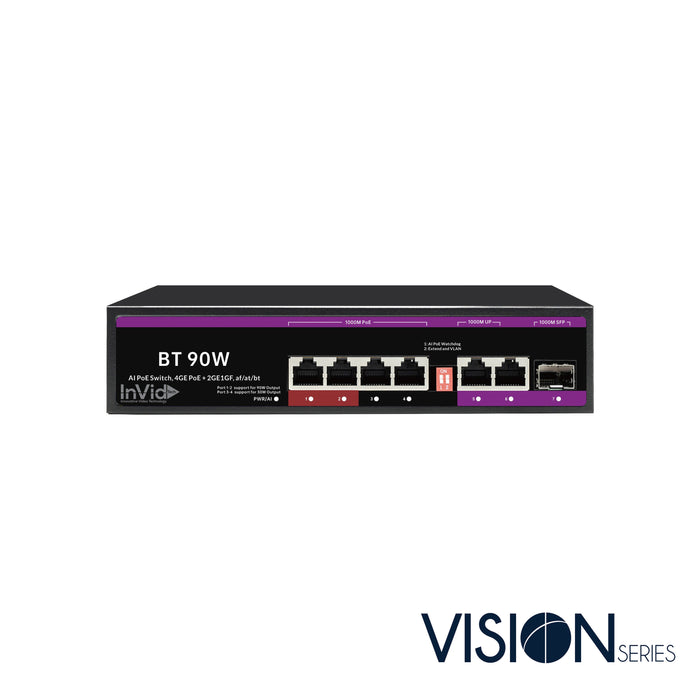

VIS-POE4-1FG: Gigabit Switch
Description
4 Port PoE Switch with 2 RJ, 1 SFP Up-link Ports, 2 High-Powered 90W ports, 150W Total Power
Features
- Conforms to IEEE802.3, IEEE 802.3i, IEEE 802.3u, IEEE802.3ab, IEEE 802.3z
- PoE Port: 4-Port 10/100/1000Mbps RJ45
- Gigabit Uplink: 2-Port RJ45 + 1-Port SPF
- Complies with IEEE 802.3af/at/bt Power over Ethernet
- 2-Port support BT90W output
- Provides 150W Built-in power supply
- 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
This switch supports Mode A standard PoE power using pins 1/2 and 3/6 to power the INVID-P2P-2.4-1.5X2.
NDAA Compliant Product-Learn More Here.
Specs
|
Model |
VIS-POE4-1FG |
|
Power |
|
|
Power Supply |
Built-in power supply |
|
Voltage Range |
AC 100~240V |
|
PoE Power |
150W for 4 PoE Port |
|
PoE Output |
Ports 1–2 support IEEE 802.3af/at/bt and can supply power up to 90W.Ports 3–4 support IEEE 802.3af/at and can supply power up to 30W. |
|
Ethernet |
|
|
Speed |
PoE Port: 4 10/100/1000Mbps RJ45 Port Uplink: 2 Gigabit RJ45 Port + 1 Gigabit SFP Port |
|
Transmission Distance |
100Meter (328ft) for RJ45 SFP Port Transmission distances vary of SFP module used |
|
Transmission Media |
Cat5e/6 standard UTP cable Based on the optical module used |
|
Ethernet Standard |
IEEE 802.3 / 802.3i / 802.3u / 802.3ab / 802.3z / 802.3af / 802.3at / 802.3bt |
|
Switching capacity |
14Gbps |
|
Transfer Rate |
14880pps for 10Mbps, 148800pps for 100Mbps, 1488000pps for 1000Mbps |
|
MAC Address |
2K MAC address table |
|
LINK/ACT Indicator (Green) |
|
|
Light on |
The port is connected |
|
Light blinks |
The port is receiving or transmitting data |
|
Light off |
The port is not linked successfully with the device |
|
PoE Indicator |
|
|
Light on |
PD is connected |
|
Light off |
No PD is connected or power forwarding fails |
|
PoE pin assignment |
BT Port: V+(RJ45 Pin 1,2,4,5), V-(RJ45 Pin 3,6,7,8) AT Port: V+(RJ45 Pin 1,2), V-(RJ45 Pin 3,6) |
|
Multifunction |
4DIP: AI PoE Watchdog, Extend, VLAN, QOS |
|
Working Environment |
|
|
Environment |
Indoor Use ONLY |
|
Working Temperature |
32°F ~ 104°F (0°C ~ 40°C) |
|
Storage Temperature |
-40°F ~ 158°F (-40°C ~ 70°C) |
|
Port surge |
6KV |
|
Humidity |
5~90%, non-condensing |
|
Mechanical |
|
|
Dimension (L*W*H) |
8.2 x 5.5 x 1.7 in (208 x 139 x 44mm) |
Ordering
VIS-POE4-1FG: 4 Port PoE Switch
