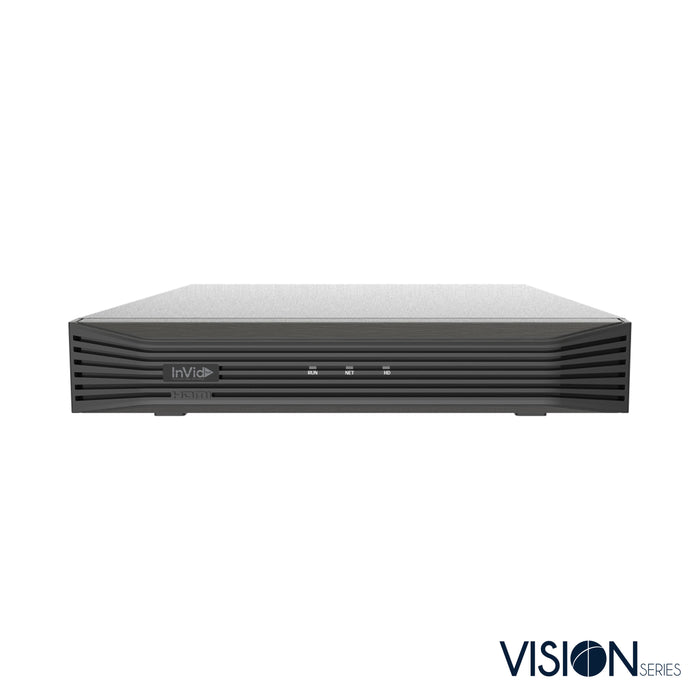

VN4A-4X4: 4 Ch with 4 Plug & Play Ports
Description
4 Ch NVR with 4 Plug & Play Ports, 80 Mbps, 1 HD Bay, 4K, With Cloud Upgrade and Smart Features
Features
- Smart Analytic Support/ 2CH SIP Max/ 1CH Face Comparison/ACCU Search
- 4 Plug & Play Ports for easy camera setup PoE (Power Over Ethernet) available on all ports
- Up to 12 Megapixel Resolution Recording
- 80 Mbps Bit Rate Input (Smart Mode Off/On)
- Supports up to 4 channel simultaneous playback
- Works with ONVIF or other supported IP cameras (Profile S/G/T)
- Local HDMI main monitor output with 4K Support
- Local VGA main monitor output up to 1080p
- P2P Vision Stream Connect for Networking
- Multiple video search options including Smart Search for quick retrieval of footage
- Ultra H.265/H.265/H.264 video compression
- Free iOS &Android Apps for Smart Phones & Tablets
- Free Central Management Software (CMS) for PC/MAC
NDAA Compliant Product-Learn More Here.
Specs
Model |
VN4A-4X4 |
Decoding |
|
|
Decoding Format |
Ultra 265,H.265,H.264 |
|
Decoding Capability |
Smart Off: 2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30 Smart On: 2 x 4K@30, 4 x 4MP@30 |
|
Audio Compression |
G.711A, G.711U |
Network |
|
|
Incoming Bandwidth |
80Mbps |
|
Outgoing Bandwidth |
80Mbps |
|
Remote Users |
128 |
|
Protocols |
TCP/IP; P2P; NTP; DHCP; PPPoE; HTTP; HTTPS; DNS; DDNS; SNMP; SMTP; RTSP; IPv6; IPv4 |
|
Browser(Plugin) |
Windows: IE (IE10/ 11), Firefox (version 52.0 and above), Chrome (version 45 and above), Edge (version 79 and above) |
Video/Audio Input |
|
|
IP Video Input |
4 ch |
|
RCA Audio Input |
1-ch |
Video/Audio Output |
|
|
HDMI Output |
4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
|
VGA Output |
1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
|
RCA Audio Output |
1-ch |
|
Liveview Display |
1/4 |
|
Corridor Mode Screen |
3/4 |
Two-way Audio |
|
|
Two-way Audio |
1 ch,RCA(Using the audio input and output) |
Snapshot |
|
|
FTP/Schedule/Event Snapshot |
4 ch snapshot,up to D1 resolution |
Recording |
|
|
Recording Resolution |
12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF |
|
Num of Concurrent Playback |
16 ch |
Smart |
|
|
VCA Detection by IPC |
Face Detection; Face Comparison; Vehicle Detection; SIP(Intrusion Detection,Cross Line Detection,Enter Area,Leave Area); Ultra Motion Detection (UMD); People Counting(People Flow Counting,Crowd Density Monitoring); Traffic Monitoring |
|
VCA Search |
Face Snapshot Search; Face Comparison Search; Motor Vehicle Search; Non-Motor Vehicle Search; Human Body Search; General Search; People Counting Report; Heat Map, ACCU Search |
|
Smart by IPC |
All channels (up to 8 images/s in total)Face Detection,Face Comparison,Vehicle Detection,SIP, UMD,Traffic Monitoring |
|
Smart by NVR |
Face Detection; Face Comparison; Smart Intrusion Prevention (SIP); Ultra Motion Detection (UMD) |
|
Face Comparison by NVR with face detection cameras |
4 ch |
|
Face Comparison by NVR with normal cameras |
1 ch |
|
Face Picture Library |
Up to 16 face picture libraries, with up to 50,000 face pictures in total |
|
Vehicle Picture Library |
Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total |
|
Search by Image |
Support |
|
SIP by NVR |
2 ch |
|
UMD by NVR |
4 ch |
Alarm |
|
|
Alert Alarm |
IP Conflict; Network Disconnected; Disk Offline; Disk Abnormal; Illegal Access; Hard Disk Space Low; Hard Disk Full; Recording/Snapshot Abnormal |
GUI Language |
|
|
GUI Language |
38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian |
Hard Disk |
|
|
SATA |
1 SATA Interfaces |
|
Capacity |
Up to 18TB WD/20TB Seagate for each HDD (The maximum HDD capacity varies with environment temperature) |
External Interface |
|
|
Network Interface |
1 RJ45 10M/100M self adaptive Ethernet Interface |
|
USB |
Rear panel: 1 x USB2.0, 1 x USB3.0 |
|
RS485 |
N/A |
|
RS232 |
N/A |
|
Alarm In |
N/A |
|
Alarm Out |
N/A |
|
Power Supply |
DC 48V/1.35A |
|
Power Switch |
Support |
PoE |
|
|
PoE Interface |
4 RJ45 10M/100M self adaptive Ethernet Interface |
|
Max Power |
Max 30W for single port,Max 50W in total |
|
Supported Standard |
IEEE 802.3at,IEEE 802.3af |
Working Environment |
|
|
Working Temperature |
14°F ~ 131°F ( 10°C ~ 55°C) |
|
Working Humidity |
≤ 90% RH (non condensing) |
|
Power Consumption (without HDD) |
≤ 12W |
Dimensions |
|
|
Weight (without HDD) |
≤ 6.0lb (2.7Kg) |
|
Height |
1U |
|
Dimensions |
10.2” × 8.7” × 1.8” (260mm × 222mm × 47mm) |
Certification |
|
|
Certification |
CE, FCC, UL, RoHS, WEEE |
|
CE |
EN 55032, EN 61000 3 3, EN IEC 61000 3 2, EN 55035 |
|
FCC |
Part15 Subpart B |
