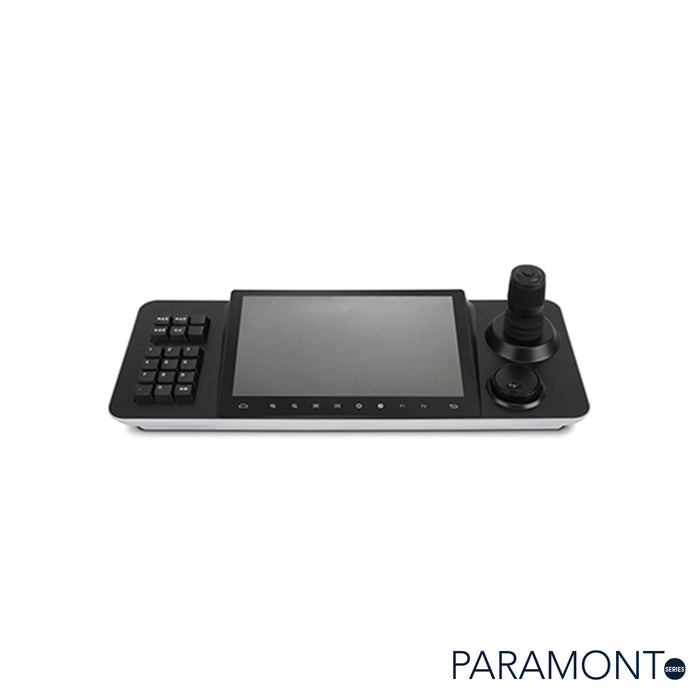

IPM-KEYBOARD10NH: Network Keyboard
Description
Network keyboard
Features
- 10.1 inch capacitive touch screen
- H.264/H.265 decoding ; single screen display in platform mode;
a maximum of 4-screen display in PTZ mode - Supports viewing images on the touch screen or outputting images on the external monitor via HDMI interface
- ONVIF protocol supported
- The full range of PTZ cameras can be connected via the network
- Supports PTZ control, preset, cruise and track setup and calling
- Up to 1024 devices can be added
- HDMI Looping Output
Spec
|
Model |
IPM-KEYBOARD10NH |
|
Operating system |
Android 6.0 |
|
Screen size |
IPS 10.1 inch screen, 1280*800 capacitive touch screen |
|
Display |
HDMI 4K@30fps |
|
Decoding capability |
Platform mode: Max.H.265 1CH 1080p@30fps PTZ mode: Max.H.265 1CH 4k@30fps, H.264 1CH 1080P@60fps or 4CH 720p@30fps; |
|
Protocol |
ONVIF 2.4 (Profile G) |
|
Function |
Up to 1024 devices can be added in PTZ mode; PTZ control: preset/cruise/scan. Supports the access of surveillance platform in platform mode; The plan, screen display, live view, PTZ and playback in the TV wall management of a platform can be controlled |
|
System settings |
Supports language settings, password modification, date and time settings and USB flash disk upgrade; restore to factory default setting |
|
Power |
Standard 5.5/2.1 Power interface, DC 12V2A±10% |
|
Interfaces |
1 RJ45 Ethernet port; 1 HDMI looping output(V 1.3); 1 USB2.0 port; 1 standard 3.5mm headphone jack |
|
Operation interface |
4D Joystick, Knob, Buttons |
|
Power consumption |
<15W |
|
Standby current |
<100mA |
|
Mean time between failures |
>30000h |
|
Working humidity |
10%-90%(RH) |
|
Working temperature |
14°F ~ 104°F (-10°C ~ 40°C) |
|
Storage temperature |
-40°F ~ 140°F (-40°C ~ 60°C) |
|
Dimensions |
17.7 x 7 x 4.5 in (450x179x115 mm) |
|
Net weight |
Approx. 3.1 lbs (1.388 kg) |
Ordering
IPM-KEYBOARD10NH: Network Keyboard
