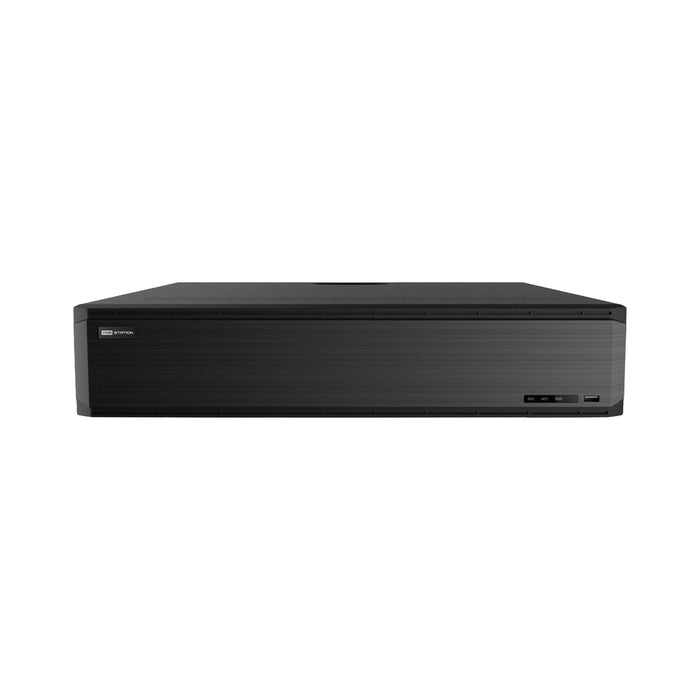

PS1A-MIDSERVER: VMS Station
Description
VMS Station
*To search any log events or AI data (such as LPR or Face comparisons) from the server side, you must have a HDD installed in Disk 1 and format it for “BUSINESS DATA USE.”
Without this HDD installed and properly formatted, no logs can be retrieved in the event of an unexpected issue, and no AI events can be searched locally from the PS1A-MIDSERVER.
For any other data you wish to save — such as live snapshots, playback recordings, or exported video — a HDD must be installed in slots 2–8 and formatted for “STORAGE USE.”
NDAA Compliant Product-Learn More Here
Specs
|
Model |
PS1A-MIDSERVER |
|
System |
|
|
Operation System |
Linux |
|
Memory |
LPDDR4 8G, 64GB EMMC |
|
Video & Audio |
|
|
Video Output |
VGA×1: 1920*1080 (VGA and HDMI output the same video source) HDMI1: 3840×2160@60, 3840×2160@30, 1920×1080 HDMI2: 3840×2160@60, 3840×2160@30, 1920×1080 HDMI3: 3840×2160@60, 3840×2160@30, 1920×1080 HDMI4: 1920×1080 |
|
Multi-Screen Display |
Main output 1/4/6/8/9/13/16/25/32/36 AUX output 1 1/4/6/8/9/13/16 AUX output 3 1/4/6/8/9/13/16 Max. 84 (36+16+16+16) |
|
Video Compression |
H.264/H.265/H.265+/H.265S |
|
Audio Output |
1CH audio output (MONO Out) Support HDMI1 audio output |
|
Audio Compression |
G.711(U/A) |
|
Live View |
|
|
Max. Resolution |
16MP |
|
Decoding Capability |
1 ×16MP or 4 ×12MP or 6 ×8MP (only available for main output) |
|
Playback |
|
|
Simultaneous Playback |
16CH |
|
Max. Resolution |
16MP |
|
Decoding Capability |
1 ×16MP or 4 ×12MP or 6 ×8MP (only available for main output) |
|
Performance |
|
|
Users |
64 online users and 64 total users |
|
Max. Number of Channel Access |
512CH |
|
Max. Number of Device Access |
256 devices |
|
Max. Number of Decoding Output |
16 |
|
Max. Number of Transfer Server Access |
1 |
|
Max. Number of Storage Server Access |
1 |
|
Max. Channel Number of Recording per Storage Server |
64 |
|
Max. Number of Channel Access of Third-party protocol |
512 |
|
Max. Number of Device Access of Third-party protocol |
256 |
|
Max. Channel Number of Simultaneous Preview |
256 (for one client/user) |
|
Max. Channel Number of Simultaneous Playback |
16 (for one client/user) |
|
Max. Number of Views |
Up to 64 view plans can be created |
|
Max. Number of Channel Access of Single Transfer Service |
512 |
|
Max. Number of Device Access of Single Transfer Service |
256 |
|
Incoming Bandwidth |
640Mbps |
|
Outgoing Bandwidth |
256Mbps |
|
Storage Bandwidth |
384Mbps |
|
Face Database |
A maximum of 30,000 face pictures can be registered Comparison Capability: 30 pictures/second |
|
Vehicle Database |
A maximum of 10,000 license plates can be registered Comparison Capability: 25 pictures/second |
|
Fisheye Camera Access |
Support 1CH fisheye camera to set fisheye mode at a single time |
|
Number of TV Wall |
Max. 16 TV walls can be created |
|
TV Wall Plan per TV Wall |
Max. 64 plans can be set for each TV wall |
|
External Interfaces |
|
|
Ethernet Interface |
2 RJ45 10M/100M/1000M self-adaptive Ethernet ports |
|
Storage |
SATA3.0 x 8 up to 10TB per HDD;* Supports RAID0,1,5,6,10 |
|
E-SATA Interface |
E-SATA ×2 |
|
Alarm |
16CH alarm input; 4CH alarm output |
|
USB |
USB3.0 ×1, USB 2.0 ×2 |
|
RS485 |
Full-duplex (currently no function) |
|
Others |
|
|
Power |
ATX-200W |
|
Power Consumption |
≤50 W (without HDD) |
|
Working Temperature |
14°F ~ 122°F (–10°C - +50°C) |
|
Relative Humidity |
10% ~ 90% |
|
Dimensions |
17.6 x 17.2 x 3.5 in (445 ×436 ×90mm) |
|
Environmental Protection |
Directive EU RoHS, WEEE(2012/19/EU) , |
