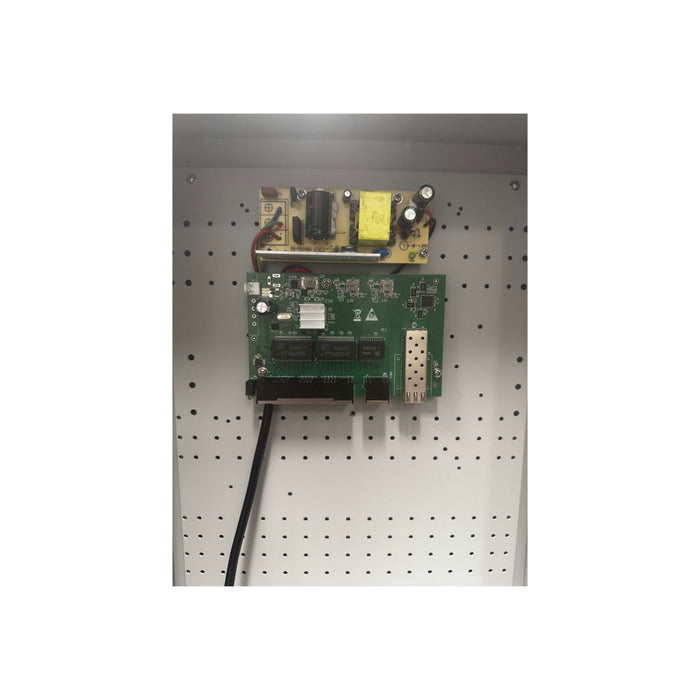

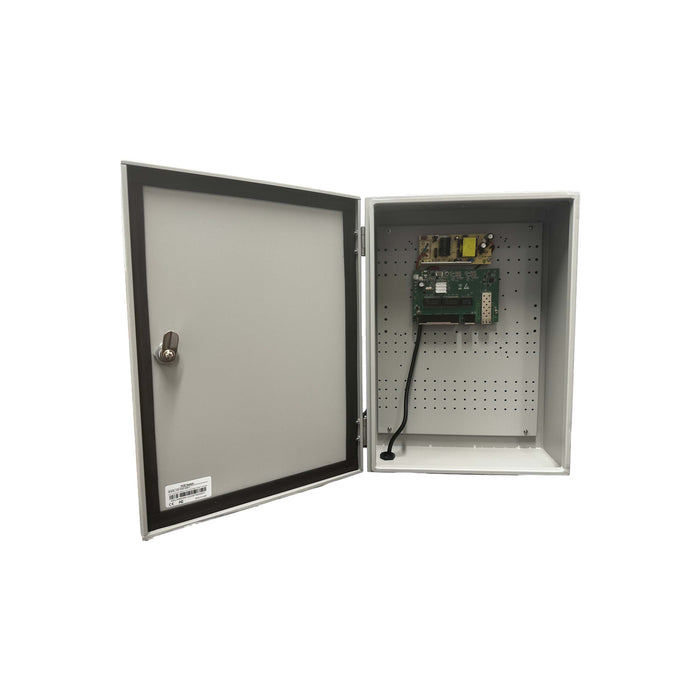

VIS-POE-OD4-1: Outdoor Switch

Description

4-Ports 10/100/1000M POE waterproof box Ethernet Switch

Features

  • Meet IEEE 802.3, IEEE 802.3u and IEEE 802.3ab standards
  • 4-16 10 / 100/1000Mbps and 10/100Mbps adaptive, supporting auto MDI / mdix
  • Support 2-4K MAC address
  • Support EEPROM configuration
  • Support IEEE802.3 AT/AF mode
  • Support switch speed limit function
  • All 3KV ports support lightning protection
  • Support stack and QoS
  • Line speed forwarding, intelligent recognition
  • Optical and electrical uplink port
  • All ports support IEEE 802.3x half duplex flow control and full duplex back pressure mode
  • Non blocking switching architecture, full line speed forwarding and maximum throughput filtering packets
  • Support MAC address learning, automatically adjust transmission mode and transmission rate
  • LED indicates power supply, link and activity, provides simple working status prompt and troubleshooting

    NDAA Compliant Product-Learn More Here.

                Specs

                Power


                Power Supply

                DC: 52V, 65W * 1 groups

                Voltage Range

                100-240VAC 50/60HZ

                Switch Consumption

                < 6W

                Speed

                1-4 10 / 100/1000M RJ45 ports (auto negotiation / Auto MDI /mdix) One 10 / 1000M Base-T ports

                (auto negotiation / Auto MDI / mdix)

                Ethernet


                Transmission Distance

                1-4Port 100Meters with 1000Mpbs

                Uplink:100Meter with 1000Mpbs

                Ethenet Standard

                IEEE 802.3i, IEEE 802.3u,IEEE 802.3at,IEEE 802.3af

                Switching capacity

                10Gbps

                Transfer Rate

                10Mbps:14880pps;

                100Mbps:148800pps;

                1000Mbps:1488000pps

                Network Switch


                MACAddress

                2K

                Function


                On (Green)

                The port is connecting

                Blinks

                The port is receiving or transmitting data

                Off

                The port is not linked successfully with the device

                POE (12,36)


                On (Orange)

                PD is connected

                Off

                No PD is connected or power forwarding fails

                Working Environment


                working Temperature

                32°F ~158°F (-10°C ~ 70°C)

                Storage Temperature

                -40°F ~ 158°F (-40°C ~ 70°C)

                Humidity Non condesing

                10%~90

                Mechanical


                Consumption

                65 Watts total power.

                Supports up to 30W per port, within power budget

                Dimension L*W*H

                8.7 x 7.5 x 2.4 in (220 X 190 X 61mm)

                Color

                White grey

                Ordering

                VIS-POE-OD4-1: 4-Ports POE waterproof box Ethernet Switch
