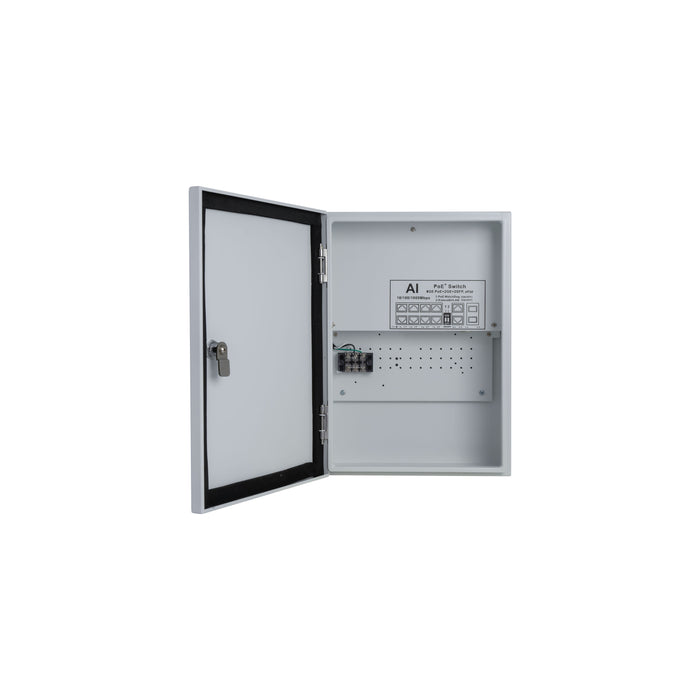

VIS-POE-OD8-2: 8 Port Full Gig Waterproof Box Ethernet Switch

VIS-POE-OD8-2: 8 Port Full Gig Waterproof Box Ethernet Switch

by Vision Series

8 Port Full Gig Waterproof Box Ethernet Switch

Features

  • Meet IEEE 802.3, IEEE 802.3u and IEEE 802.3ab standards

  • 4-16 10 / 100/1000Mbps and 10/100Mbps adaptive, supporting auto MDI / mdix
  • Support 2-4K MAC address
  • Support EEPROM configuration
  • Support IEEE802.3 AT/AF mode
  • Support switch speed limit function
  • All 3KV ports support lightning protection
  • Support stack and QoS
  • Line speed forwarding, intelligent recognition
  • Optical and electrical uplink port
  • All ports support IEEE 802.3x half duplex flow control and full duplex back pressure mode
  • Non blocking switching architecture, full line speed forwarding and maximum throughput filtering packets
  • Support MAC address learning, automatically adjust transmission mode and transmission rate
  • LED indicates power supply, link and activity, provides simple working status prompt and troubleshooting

      NDAA Compliant Product-Learn More Here.

                  Power


                  Power Supply

                  DC: 52V, 125W * 1 groups

                  Voltage Range

                  100-240VAC 50/60HZ

                  Switch Consumption

                  < 6W

                  Speed

                  1-8 10 / 100/1000M RJ45 ports

                  (auto negotiation / Auto MDI /mdix)


                  Two 10/100/1000M Base-T RJ ports

                  (auto negotiation / Auto MDI /mdix)

                  Ethernet


                  Transmission Distance

                  1-8Port 100Meters with 1000Mpbs

                  Uplink:100Meter with 1000Mpbs

                  Ethenet Standard

                  IEEE 802.3i, IEEE 802.3u,IEEE 802.3at,IEEE 802.3af

                  Switching capacity

                  20Gbps

                  Transfer Rate

                  10Mbps:14880pps;

                  100Mbps:148800pps;

                  1000Mbps:1488000pps

                  Network Switch


                  MACAddress

                  2K

                  Function


                  On (Green)

                  The port is connecting

                  Blinks

                  The port is receiving or transmitting data

                  Off

                  The port is not linked successfully with the device

                  POE (12,36)


                  On (Orange)

                  PD is connected

                  Off

                  No PD is connected or power forwarding fails

                  Consumption

                  125 Watts total power.

                  Supports up to 30W per port, within power budget

                  Working Environment


                  working Temperature

                  32°F ~ 158°F (-10°C ~ 70°C)

                  Storage Temperature

                  -40°F ~ 158°F (-40°C ~ 70°C)

                  Humidity Non condensing

                  10%~90

                  Protection

                  IP55

                  Mechanical


                  Dimension L*W*H

                  12.6 x 9.4 x 2.4in (320  X 240 X 61mm)

                  Color

                  White grey
