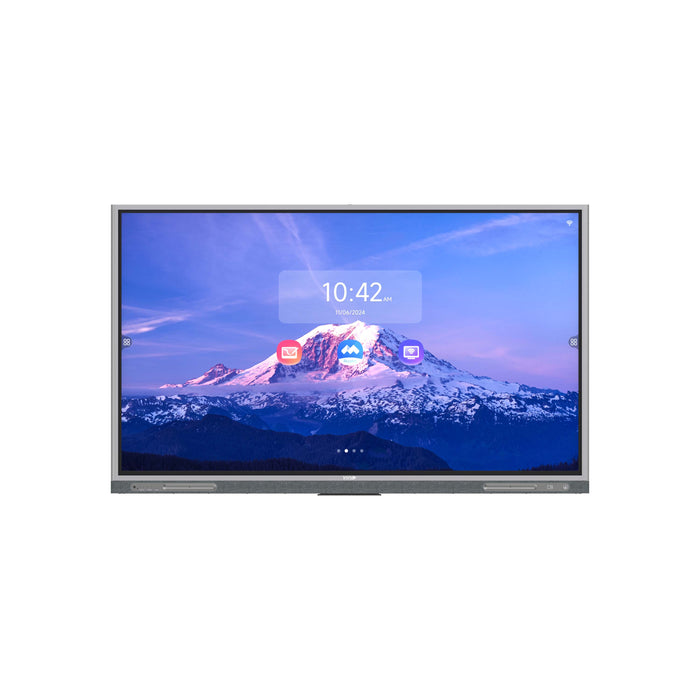

INVID-IFP65N: 65” Smart Interactive Display
Description
65” Smart Interactive Display
Features
- 4K UHD anti-glare display delivers images with extreme detail.
- Zero lamination technology with less than 1mm gap between the cover glass and display panel effectively reduces light refraction and brings better visuals.
- Ultra-narrow and equal-width bezel design for perfect aesthetics.
- Minimalist geometric line design and smooth border outline, elegant and attractive.
- (Optional) Professional 4K HD camera for immersive remote collaboration.
- (Optional) Omni-directional 8-microphone array with 8-meter pickup distance.
- Dual Wi-Fi modules with both Wi-Fi and hotspot support for other mobile devices.
- Dual treble channels and dual bass channels provide cinematic sound effects.
- High-precision infrared touch technology allows up to 50-point touch, realizing smooth co-authoring.
- Bluetooth 5.2 offers higher data transmission rate and lower power consumption.
- Android 13.0 system offers user-friendly GUI.
- A variety of quick tools improve usability and interaction efficiency, such as annotation, screenshot, etc.
- Wireless screen mirroring from various operating systems such as Android, iOS, and Windows to the display with one touch.
- Fast file transfer allows users to quickly transfer files to the display via a QR code.
- OTA remote upgrade allows the system to be upgraded online.
- Supports NFC screen projection
Spec
|
Model |
INVID-IFP65N |
|
Panel |
|
|
Backlight |
DLED backlight |
|
Panel Size |
65" |
|
Resolution |
3840 × 2160 |
|
Brightness (cd/m²) |
350 |
|
Contrast Ratio |
1200 : 1 |
|
Response Time (ms) |
8 |
|
Color Support |
1.07B |
|
Viewing Angle (H/V) |
178°/178° |
|
Refresh rate（Hz） |
60 |
|
Color gamut |
72% |
|
Lifespan |
50000H |
|
Surface Hardness |
9H (7 on the Mohs scale) |
|
Haze Value |
25% |
|
Display Size |
56 x 32" (1428.48 × 803.52mm) |
|
Pixel Pitch (H x V) |
0.37 × 0.37 mm |
|
Touch |
|
|
Touch Control |
Contactless IR sensor, supports 50-point touch |
|
Touch Precision (mm) |
±1 |
|
Glass |
4mm single-side anti-glare tempered glass |
|
Touch Response Time (ms) |
≤ 2 (frame rate > 500Hz) |
|
Touch technology |
Infrared touch |
|
Writing Specification |
Supports 20-point writing |
|
System |
|
|
CPU |
RK3588: quad-core A76 (2.4G) + quad-core A55 (1.8G) |
|
CPU Frequency |
2.4 GHz |
|
RAM/ROM |
DDR4: 8GB eMMC: 128GB |
|
Operation System |
Android 13.0 |
|
Interface |
|
|
Video Input |
2 × HDMI 2.0 video input; 1 × DP video input; 1 × VGA video input; 1 × YPbPr video input 1 × USB TypeC (Include DP) |
|
Video Output |
1 × HDMI video output; 1 × DP video output |
|
Audio Input |
1 × PC audio input, 3.5mm interface 1 × LINE IN, 3.5mm interface 1 × MIC (3.5mm & EARPHONE Shared interface) |
|
Other Interfaces |
4 × USB3.0, 1 × USB Type-B, 1 × USB Type-C, 1 × RS232 1 × TF card slot |
|
Network |
2 × RJ45, supports 10M/100M/1000M Base-T self-adaptive |
|
Front Interfaces |
2 × front USB3.0 1 × Type-C |
|
Audio |
|
|
Speaker |
Left channel: 1 × treble (5W) + 1 × bass (12W) Right channel: 1 × treble (5W) + 1 × bass (12W) |
|
Wi-Fi |
|
|
Wi-Fi Configuration |
Wi-Fi 6 + Wi-Fi 5 dual modules: Wi-Fi 6 for uplink routing; Wi-Fi 5 as AP, supports 2.4GHz and 5GHz |
|
Wi-Fi Performance |
30m² coverage, 20m transmission distance in open space |
|
Bluetooth |
|
|
Bluetooth Version |
5.2 |
|
Bluetooth Performance |
10m transmission distance in open space |
|
OSD |
|
|
Multi-Language |
Supports 27 languages, including Simplified Chinese, Traditional Chinese, English, Japanese, Arabic, French, Spanish (ES-ES), Spanish (ES-MX), Portuguese (ES-ES), Portuguese (ES-MX), German, Italian, Dutch, Polish, Korean, Catalan, Galician, Vietnamese, Bulgarian, Kazakh, Russian, Ukrainian, Thai, Uzbek, Hungarian, Croatian, and Romanian |
|
VESA |
|
|
Wall Mount Hole |
500 × 400mm |
|
Wall Mount Screw |
4-M8 screw hole |
|
General |
|
|
Power Supply |
AC 100 to 240 V, 50/60 Hz |
|
Overall Power Consumption (W) |
≤220 (on without OPS) |
|
Standby Power Consumption (W) |
<0.5 |
|
Product Dimensions (W x H x D) |
59 x 35.6 x 3.5" (1498 × 905 × 89mm) |
|
Package Dimensions (W x H x D) |
64.3 x 42.6 x 8.7" (1632 × 1081 × 222 mm) |
|
Operating Temperature |
32°F ~ 122°F (0 to 50°C) |
|
Weight |
Net weight: 89.3 lbs (40.5Kg) Gross weight: 108 lbs(49.0Kg) |
|
Operating Humidity |
10% to 90% (non-condensing) |
|
Storage Temperature |
-4°F ~ 140°F (-20 to 60°C) |
|
Storage Humidity |
0% to 95% (non-condensing) |
|
Accessories Included |
1 × Power Cable, 2 × Touch Pen, 1 × Quick Guide, 1 × Infrared Remote Control, 1 × Wall Mount Bracket |
|
Certification |
|
|
Certification |
CE-EMC, CE-RED, CB/LVD, FCC, FCC-ID |
