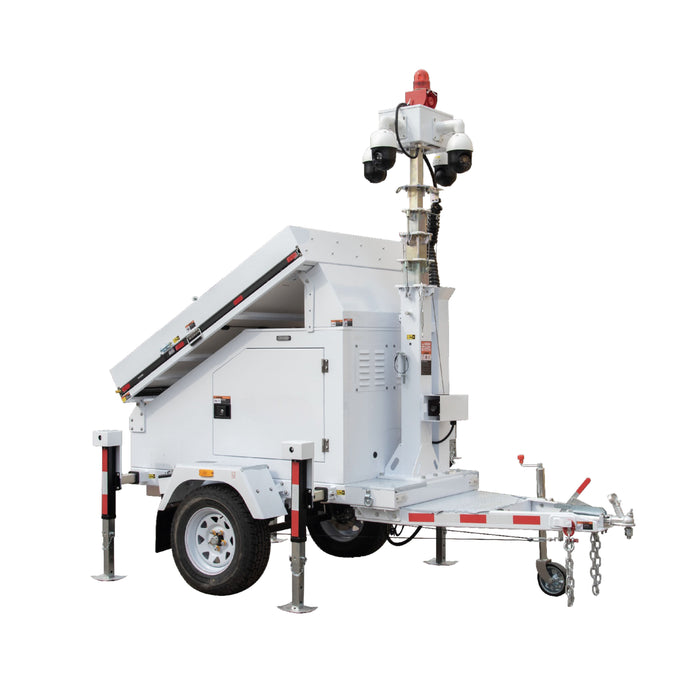

INVID-TTSST1305: Mobile Solar Surveillance Trailer
Description
Self-Powered | Rapid Deployment | Remote Monitoring Platform
The Mobile Solar Surveillance Trailer is a fully self-contained, towable security platform designed to deliver reliable surveillance in locations without permanent power or network infrastructure. Engineered for fast deployment and long-term outdoor use, this solar-powered trailer provides an elevated mounting solution for cameras, communication equipment, and deterrence devices.

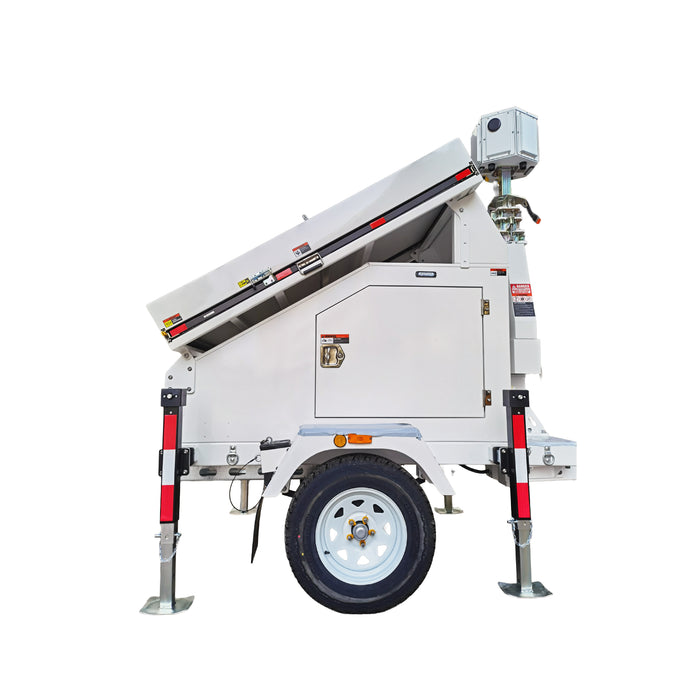

Built on a rugged trailer chassis, the system features an integrated solar array, onboard battery storage, and a telescoping mast for optimal camera positioning and wide-area coverage. Once deployed, the trailer operates independently, making it ideal for temporary, remote, or rapidly changing environments where flexibility and mobility are critical.
This solution serves as a scalable surveillance platform, allowing integrators to select and deploy cameras, analytics, deterrents, and connectivity options based on the specific needs of each site.
Features
-
Self-Powered Solar Design – Integrated solar panels and onboard battery storage enable continuous operation without external power.
-
Rapid Deployment Platform – Tow to location, stabilize, and deploy with no trenching or wiring required.
-
Telescoping Mast for Elevated Coverage – Improves line-of-sight and expands surveillance coverage.
-
Multi-Device Mounting Capability – Supports cameras, communication hardware, lighting, and deterrence accessories.
-

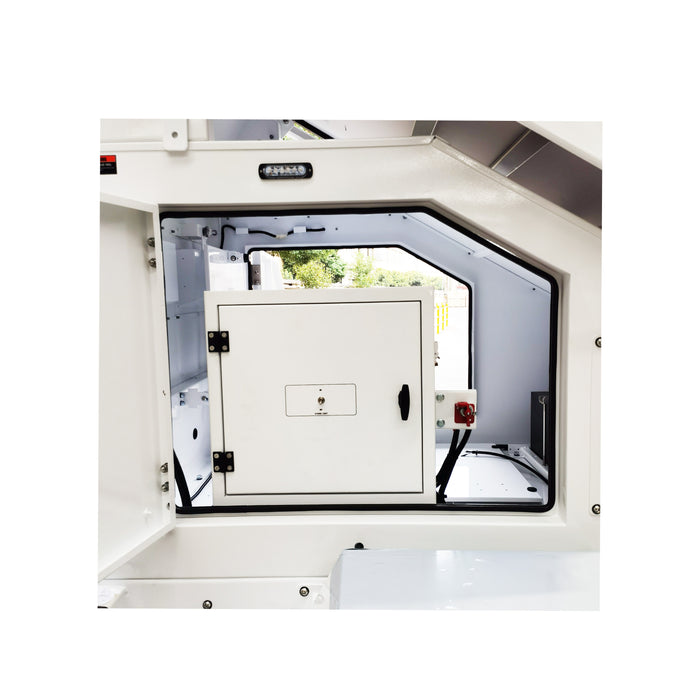

Rugged, Outdoor-Rated Construction – Weather-resistant enclosure protects internal components.
-
Towable, Road-Ready Trailer – Designed for easy relocation between job sites.
-
Stabilizing Outriggers – Integrated leveling jacks ensure secure placement and stable operation.
-
Flexible, Scalable Platform – Easily configurable to meet site-specific security requirements.
*Cameras & Accessories Sold Separately. Many Options Available. Contact Our Sales Team for More Details 631-388-5700
Spec
|
Model |
INVID-TTSST1305 |
|

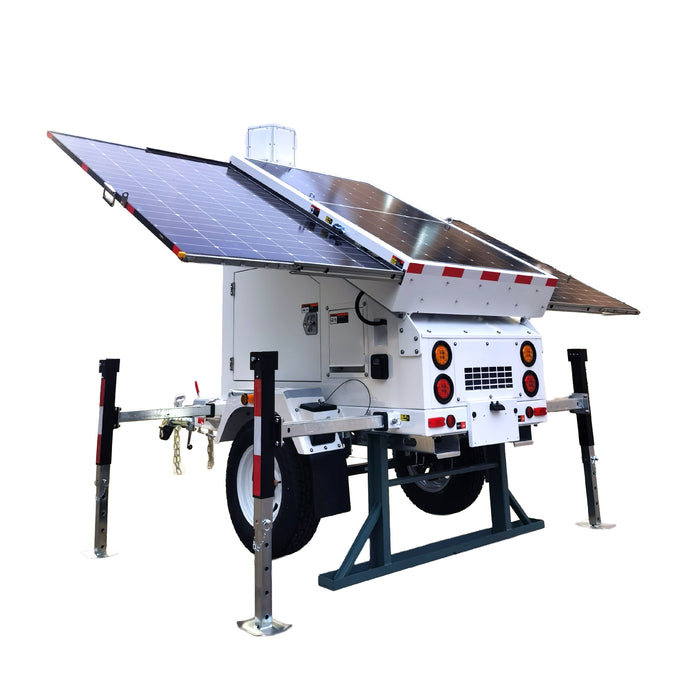

Solar System |
|
|
Solar Panel |
Mono-crystalline silicon |
|
Rate Power |
435W x 3 |
|
Open Circuit Voltage |
DC39.33V |
|
Efficiency |
22.30% |
|
Series & Parallel |
3 in parallel |
|
Angle |
30º-45º, Manual Lifting |
|

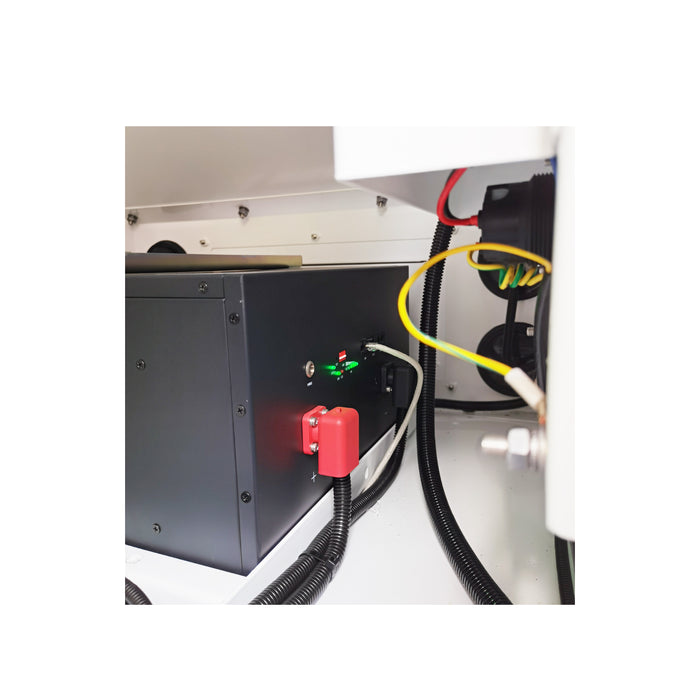

Battery System |
|
|
Type |
LFP |
|
Capacity |
DC25.6V 460Ah x 1pc, 11.78kW·h |
|
BMS |
Yes |
|
Data Monitor |
Victron SmartShunt 500A/50mV |
|
Smart Protection |
Victron Smart BatteryProtect 12/24V - 65 amp |
|
Heater |
Yes |
|
Life |
Cycle 4000 at 95% DOD,25°C |
|
Ambient Temperature |
Charging: 32°F ~ 131°F (0°C - 55°C) Discharging: -4°F ~ 131°F (-20°C - 55°C) |
|
Lifting System |
|
|
Type |
Square, Telescopic |
|
Material |
Steel Q235,Galvanized |
|
Height |
23ft (7m) |
|
Section |
5 |
|
Wire Rope |
Stainless Steel 304, 5mm |
|
Spiral Cable |
2 × Cat5e + 14 × Power Supply (7 pair) |
|
Lifting Method |
Manual Winch |
|
Recommended Loading |
11lb ~ 110lb (5kg ~ 50kg) |
|
Windproof |
72.7mph (117kph) |
|
Trailer System |
|
|
Trailer Standard |
US / AU / EU |
|
Trailer Light |
US / AU / EU |
|
Tow Hitch |
2’’ (50mm) Ball Type |
|
Jockey Wheel |
8’’ (200mm) |
|
Axle |
Single, Suspension, Electric Brake |
|
Tire |
15 inch |
|
Outrigger |
4 × Manual,Galvanized |
|
Bubble level |
4 pcs |
|
Wheel Chock |
2 pcs |
|
Forklift Pocket |
Yes |
|
Lifting Ring |
4 pcs |
|

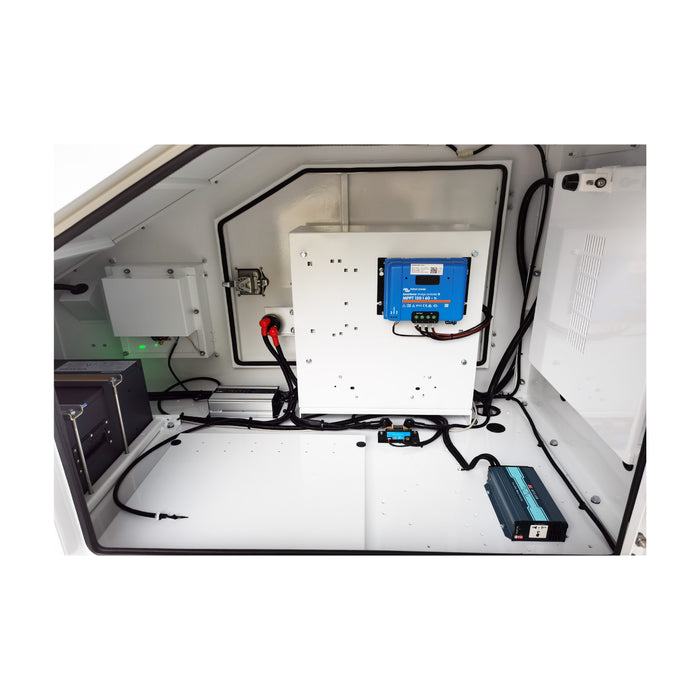

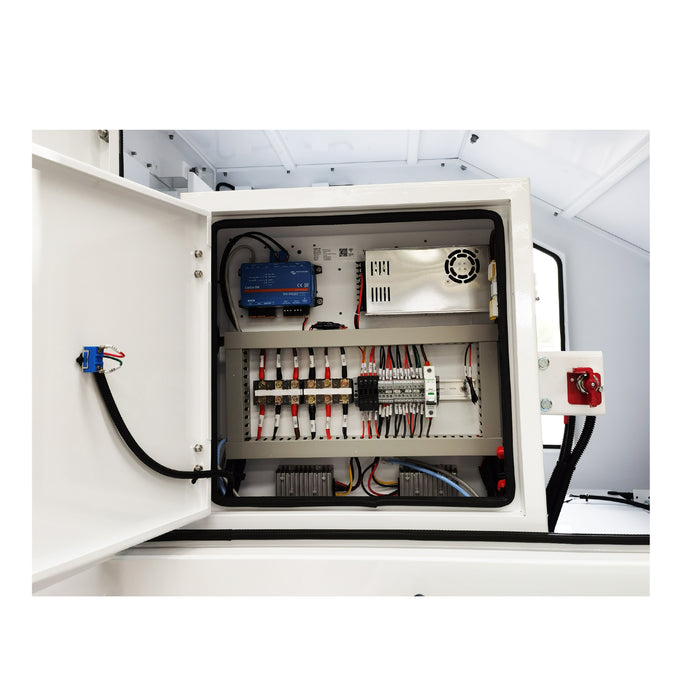

Control System |
|
|
Solar Controller |
Victron SmartSolar MPPT 150V, 60 amp |
|
Efficiency |
95%+ |
|
Power Supply |
DC12V,24V,48V, 110V AC outlet |
|
Protection |
Yes |
|
Remote |
Victron Cerbo GX MK2 |
|
Charger system |
|
|
Battery Charger |
600W |
|
Efficiency |
89% |
|
Socket |
1 × 16A, AC120V |
|
Gasoline Generator (OPTIONAL) |
|
|
Power Output |
DC 25.6V |
|
Rate Power |
2KW |
|
Fule/ Tank Volume |
Regular Gasoline, 100L |
|
Fule Consumption |
Less than 0.5L/h |
|
Start/Stop Mode |
Auto Start: SOC ( State of Charge) at 30% |
|
Noise Level |
Less than 65dB |
|
Dimension |
|
|
Shipping |
87.4 x 64.2 x 95.3 in (2220 × 1630 × 2420 mm) |
|
Transportation |
135.4 x 64.2 x 107.5 in (3440 × 1630 × 2730 mm) |
|
Operation |
135.4 x 142.5 x 285.4 in (3440 × 3620 × 7250 mm) |
|
Others |
|
|
Material |
Steel Q235 |
|
Powder |
Outdoor + Anti-Corrosion |
|
Weight |
2755lb (1250kg) |
|
Strobe Light |
2PCS on the camera mounting box, 2PCS on the trailer body |
|
System Voltage |
DC24V |
|
Work Temperature |
-4°F ~ 140°F (-20°C~60°C) |
