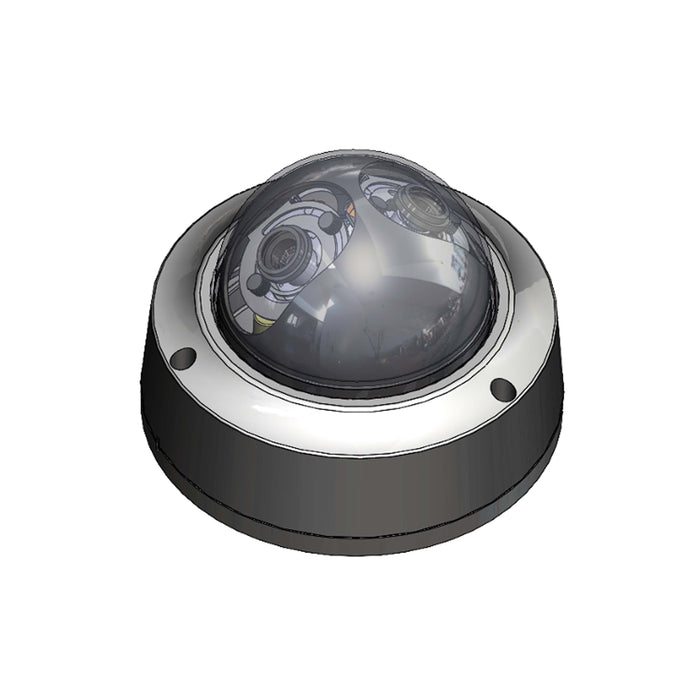

PAR-ALLDUALDR17D: 2 Megapixel Dual Lens Dome

Model

PAR-ALLDUALDR17D

ISP

Type

EYENIX EN781 * 2 ea

Image sensor

Sensor type

1/2.8" SONY STARVIS II 2.4Mega CMOS Sensor (IMX662) * 2 ea

active pixels

1943 (H) × 1097 (V) approx. 2.12 M pixels

Effective pixels

1971 (H) × 1113 (V) approx. 2.18 M pixels

Total pixels

2020 (H) × 1196 (V) approx. 2.40 M pixels

Resolution

1920X1080(1080p@30F/25F)

1280X720(720p@30F/31F)

CVBS

Scanning system

Progressive Scan

Min. illumination

DAY : 0.2LUX (AGC MAX, SENS-UP OFF, F2.0)

NIGHT : 0.01LUX (AGC MAX, SENS-UP OFF, F2.6)

Video Out

AHD (TVI, CVI, CVBS Selectable)

S/N Ratio

More than 50dB

Lens

1.7mm Fixed Lens * 2ea

Function

AGC

0 ~ 10 Level Adjustable

Shutter Speed

AUTO /FLK/ MAMUAL(1/60Sec ~ 1/30000Sec)

Brightness

0 ~ 20 Level Adjustable

Sens-UP

OFF/AUTO (x2 ~ x32)

WDR

OFF/ON(LINE/FRAME)LOW/MIDDLE/HIGH

BLC

OFF/ON

HLC

OFF/ON

ACE(D-WDR/ATR-EX))

OFF/ON(LOW/MIDDLE/HIGH)

Privacy Masking

OFF/ON (16 Zone)

DEFOG

OFF/ON(LOW/MIDDLE/HIGH)

Day & Night

Auto(AGC)/COLOR/BW

Smart -IR

0~20 Level Adjustable

White Balance

AUTO(1,700K ~ 11,000K)/AWB1/AWB2/AWC-SET/Manual

DNR

2D+3DNR

Mirror

H-MIRROR/V-MIRROR

Sharpness

0~10 Level Adjustable

GAMMA Correction

0.45 ~ 0.75

Language

ENG / JPN / CHN

Coaxial Communication

HD-Analog(UTC)

Operating temperature

14°F ~ 122°F (-10°C ~ +50°C) (Humidity : 20%RH ~ 86%RH)

Storage temperature

-4°F ~ 140°F (-20°C ~ +60°C) (Humidity : 20%RH ~ 101%RH)

Cable

HD-Analog BNC / DC JACK

Power Source

Dual Voltage
