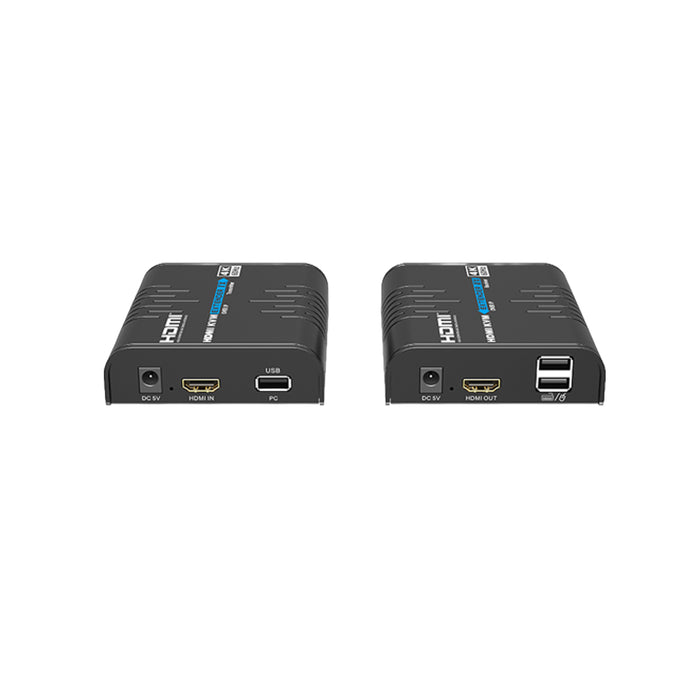

INV-AV2294KEXKVM2: HDMI KVM Extender

Item

Transmitter(Tx)

Receiver(Rx)

Video

Input interface

1x HDMI

1x RJ45

Output interface

1x RJ45

1x HDMI

HDMI length

≤ 5m

≤ 5m

Maximum transfer rate

18Gbps

Compatibility

HDMI 2.0 HDCP 1.4/HDCP 2.2

Resolutions

4096x2160@24/30/50/60Hz, 3840x2160@24/30/50/60Hz, 1080P@24/25/30/50/60Hz, 720P@50/60Hz, 576P@60Hz, 480P@60Hz, 1920x1200, 1680x1050, 1600x900, 1280x1024,

1280x960, 1280x720, 1024x768, 800x600

Connection types

One-to-one connection One-to-many connection Many-to-one connection Many-to-many connection Switch cascading

Transmission distance

CAT5 262.5ft (80m) / CAT5E 328.1ft (100m) / CAT6 393.7ft (120m)

Transmission latency

1080P: 80~110ms 4K@60Hz: 120~170ms

Audio signal

Input interface

1×HDMI

1×RJ45

Output interface

1×RJ45

1×HDMI

HDMI output

LPCM 2.0

USB devices

USB

Mouse, keyboard, touch screen

Power

Power Supply

DC 5V/1A

DC 5V/1A

Power Consumption

TX ≤ 3.5W

RX ≤ 2.5W

Operating Environment

Working temperature

-4°F ~ 140°F (- 20°C ~ 60°C

Storage temperature

-22°F ~ 158°F (- 30°C ~ 70°C)

Humidity

0~90% RH (no condensation)

Physical Properties

Housing

Aluminium (Top cover); lron (Bottom cover)

Weight

.5 lbs (240g)

.5lbs (243g)

Color

Black

Dimensions (L x W x H)

4.3 x 3.5 x 1 in  (109.6 x 89.5 x 26.3 mm)

Protection

ESD protection 1a Contact discharge level 2 (±4KV) 1b Air discharge level 3 (±8KV)

Implementation  of  the  standard:  IEC61000-4-2 Lightning protection, Surge protection
