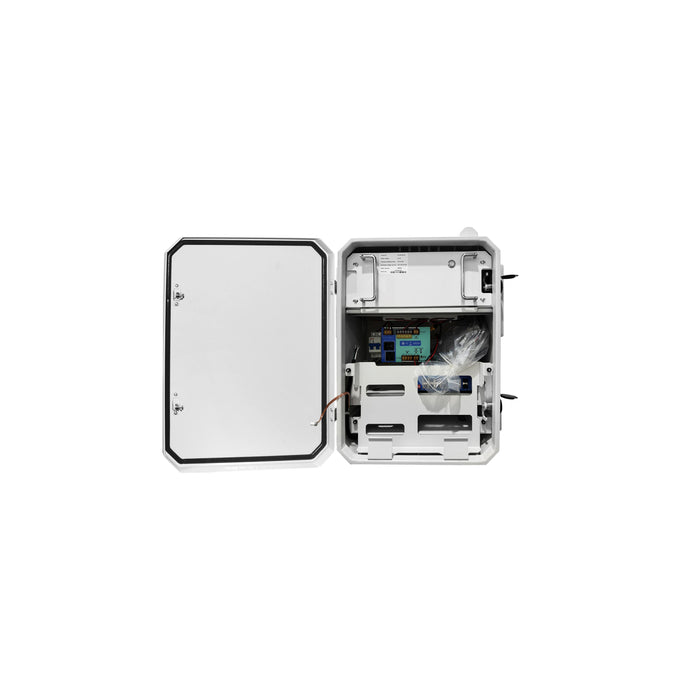

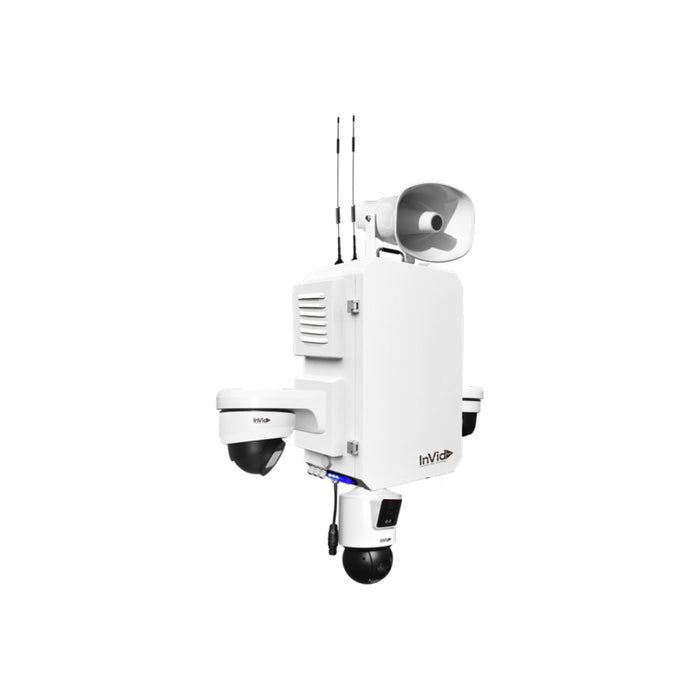

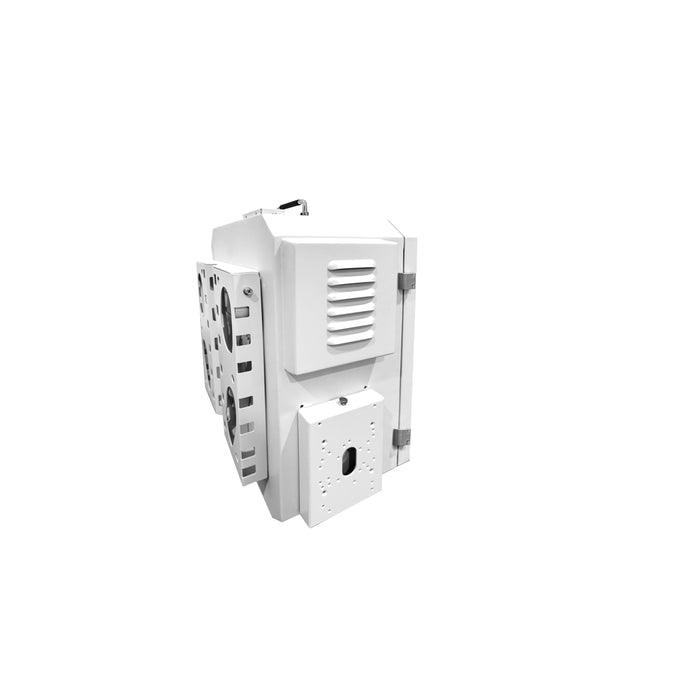

INVID-DDPB2: Enclosure Weatherproof Box with AC and Backup Battery
Description
Enclosure Weatherproof Box with AC and Backup Battery
Features
- Built-in Air Breaker
- Built-in 360W PCM
- Built-in 8CH Industrial PoE+ Switch
- Built-in 2PCs Fans Controlled by 360W PCM
- With 70CM AC Wire with IP68 Water-Proof Stainless Connector,and AC Wire Water-Proof UL
- Male&Female Connector
- With NPT 3/4” Knockout and Cap,with PG16 Connectors and Hand Carrier
- With 4G Antennas and Horn Speaker Installation Position plus Cable-in Design
- With Pole & Wall Mount Bracket and PTZ Mount
- With 24V/40Ah Ternary Lithium Battery Built-in with Heater
- With Sound AI PoE Light Siren 1PCs
Spec
Model |
INVID-DDPB2 |
360W PCM |
|
|
AC Input |
110-277V MAX:1.5KW |
|
DC48V Output |
3A (MAX 150W) |
|
DC12V Output |
5A (MAX 60W) |
|
Battery Charging Output |
DC24V (MAX150W) |
|
External Fan Power Output |
DC12V/1A, 2 Ports |
|
External Led Power Output |
DC12V/1A, 1 Port |
|
UPS Signal Output |
AC Power Supply is Normally Open, Battery Powered Normally Closed. |
|
Enclosure Material |
Aviation Aluminum Alloy |
|
Dimension ( L x W x H) |
4.3 x 5.5 x 3.9 in (110 x 140 x 100 mm) |
|
Product Weight |
2.6 lbs (1.2KG) |
|
Working Temp. |
-13°F ~ 140°F (-25 °C to 60 °C) |
|
Inside Installation |
DIN Rail |
|
PoE Switch |
8CH Industrial, AT 30W for Each Port, 240 Total Watts |
|
Backup Battery |
24V/40Ah with Heater, Ternary Lithium |
|
Cooling Fans |
2PCs, DC12V Powered from 360W PCM |
|
Air Breaker |
Yes |
|
Deterrence Light |
Default with 1PCs Sound AI PoE Light Siren |
Enclosure |
|
|
Material |
Aluminum and Steel Combined |
|
Mount |
Pole & Wall (9-25CM Diameter Pole is Perfect) |
|
Dimension (W x H x D) |
18.6 x 20.9 x 11.9 in (474 x 530 x 302.5mm) (Including Mount) |
|
Gross Weight |
57.3lbs (26KG) (with 24V/40Ah Battery Included), 39.7 lbs (18KG) without Battery |
|
Package Box Size |
27.2 x 15 x 21.3 in (69x38x54 cm) |
Ordering
INVID-DDPB2: Enclosure Weatherproof Box
