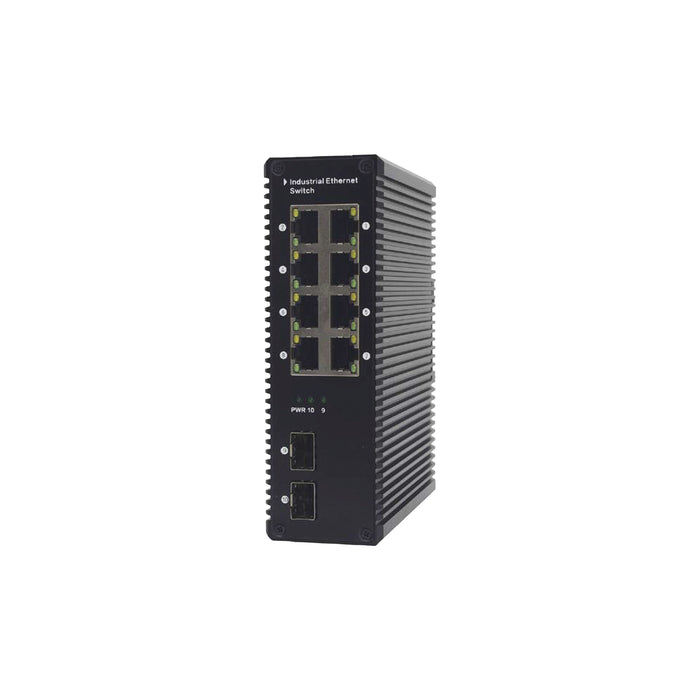

INVID-POE3610-8BT: 8-Port PoE Switch
Description
8-Port PoE Switch
Features
- Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
- 8-Port 10/100/1000Mbps supports PoE Powered and 2 1Gbps SFP interfaces
- Complies with IEEE 802.3af/802.3at Power over Ethernet End-Span PSE, 1~4 PoE ports support IEEE 802.3bt
- Circuit protection prevents power interference between ports
- Hardware based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
- Features Store-and-Forward mode with wire-speed filtering and forwarding rates
- Integrates address look-up engine, supporting 8K absolute MAC addresses
NDAA Compliant Product-Learn More Here.
Specs
Model |
|
Power |
|
|
Power Supply |
Built-in power supply |
|
Voltage Range |
DC 48-56V |
|
Consumption |
Non PoE <10W |
Ethernet |
|
|
Speed |
1~8 Port: 10/100/1000Mbps 9~10: 1000Mbps SFP port |
|
Transmission Distance |
100Meter(328ft) for RJ-45 SFP module is optional, transmission distance depends of optical module |
Network Switch |
|
|
Ethernet Standard |
IEEE 802.3 / 802.3i / 802.3u / 802.3ab / 802.3z / 802.3af / 802.3at / 802.3bt |
|
Switching capacity |
20Gbps |
|
Transfer Rate |
14880pps for 10Mbps 148800pps for 100Mbps 1488000pps for 1000Mbps |
|
MAC Address |
4K MAC address table |
LINK/ACT Indicator |
|
|
Light on |
The port is connected |
|
Light blinks |
The port is receiving or transmitting data |
|
Light off |
The port is not linked successfully with the device |
PoE Indicator |
|
|
Light on |
PD is connected |
|
Light off |
No PD is connected or power forwarding fails |
|
PoE pin assignment |
1~4 port: 1,2,3,4,5,6,7,8 5~8 port: 1,2,3,6 |
Environment |
|
|
Working Temperature |
-40°F ~ 167°F (-40°C ~ 75°C) |
|
Storage Temperature |
-40°F ~ 185°F (-40°C ~ 85°C) |
|
Humidity Non condensing |
0~90% |
Mechanical |
|
|
Dimension |
6 x 5 x 1.9 in (152×127×48mm) |
|
Color |
Grey |
Ordering
INVID-POE3610-8BT: 8-Port PoE Switch
