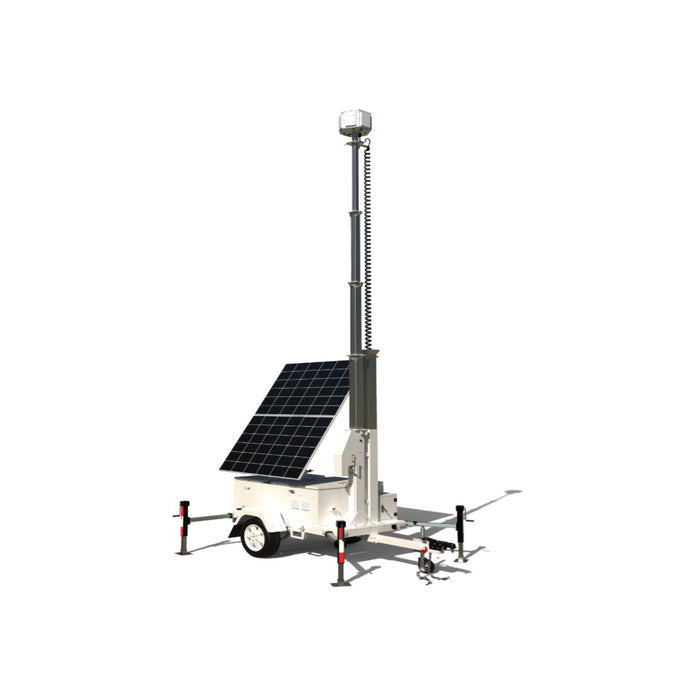

INVID-TTSST870G: Mobile Solar Surveillance Trailer
Description
Self-Powered | Rapid Deployment | Remote Monitoring Platform
The INVID-TTSST870G Mobile Solar Surveillance Trailer is a compact, fully self-contained security platform built to deliver dependable surveillance where permanent power and network infrastructure aren’t available. Designed for quick setup and continuous outdoor operation, this towable unit provides an elevated mounting point for cameras, communication equipment, and deterrence devices.
The system pairs dual high-efficiency solar panels with electric tilt adjustment, an 8.04kWh LFP battery with built-in heater, and a 20.7ft telescoping mast for clear sightlines and wide-area coverage. Its lighter 2,200 lb chassis makes it easy to tow, position, and relocate, ideal for construction sites, parking lots, events, and other temporary or changing environments.
As a flexible surveillance platform, the TTSST870G lets integrators choose the cameras, analytics, deterrents, and connectivity that fit each site, with an optional gasoline generator for added runtime during extended low-sun periods.
Features
-
Self-Powered Solar Design – Dual 435W mono-crystalline panels and an 8.04kWh LFP battery deliver continuous operation without external power.
Electric Panel Tilt – Electrically adjustable panel angle (up to 60°) maximizes solar harvest with minimal effort.
Rapid Deployment Platform – Tow to location, stabilize, and deploy with no trenching or wiring required.
Telescoping Mast for Elevated Coverage – 20.7ft, 5-section galvanized mast improves line-of-sight and expands coverage.
Multi-Device Mounting Capability – Supports up to 110 lb of cameras, communication hardware, lighting, and deterrence accessories.
Cold-Weather Battery Protection – Integrated BMS and battery heater support reliable performance in low temperatures.
Rugged, Outdoor-Rated Construction – Galvanized, anti-corrosion powder-coated steel withstands winds up to 72.7 mph.
Compact, Road-Ready Trailer – Lightweight 2,200 lb design with electric brakes and 2” ball hitch for easy relocation.
Stabilizing Outriggers – Four galvanized outriggers with bubble levels ensure secure, level placement.
*Cameras & Accessories Sold Separately. Many Options Available. Contact Our Sales Team for More Details 631-388-5700
Spec
Model |
INVID-TTSST870G |
Solar System |
|
|
Solar Panel |
Mono-crystalline silicon |
|
Rate Power |
435W x 2 |
|
Open Circuit Voltage |
DC39.33V |
|
Efficiency |
22.30% |
|
Series & Parallel |
2 in parallel |
|
Angle |
60º, Electric Lifting |
Battery System |
|
|
Type |
LFP |
|
Capacity |
DC25.6V 314Ah x 1pc, 8.04kW·h |
|
BMS |
Yes |
|
Heater |
Yes |
|
Life |
Cycle 4000 at 95% DOD,25°C |
|
Ambient Temperature |
Charging: 32°F ~ 131°F (0°C - 55°C) |
Lifting System |
|
|
Type |
Square,Telescopic |
|
Material |
Steel Q235,Galvanized |
|
Height |
20.7ft (6.3m) |
|
Section |
5 |
|
Wire Rope |
Stainless Steel 304, 5mm |
|
Spiral Cable |
2 × Cat5e + 14 × Power Supply (7 pair) |
|
Lifting Method |
Manual Winch |
|
Recommended Loading |
11lb ~ 110lb (5kg ~ 50kg) |
|
Windproof |
72.7mph (117kph) |
Trailer System |
|
|
Trailer Standard |
US / AU / EU |
|
Trailer Light |
US / AU / EU |
|
Tow Hitch |
50mm / 2'' Ball Type |
|
Jockey Wheel |
8’’ (200mm) |
|
Axle |
Single,Suspension,Electric Brake |
|
Tire |
14 inch |
|
Outrigger |
4 × Manual,Galvanized |
|
Bubble level |
4 pcs |
|
Wheel Chock |
2 pcs |
|
Forklift Pocket |
Yes |
|
Lifting Ring |
4 pcs |
Control System |
|
|
Solar Controller |
40A MPPT |
|
Efficiency |
95%+ |
|
Power Supply |
DC12V,24V,48V |
|
Protection |
Yes |
|
Remote |
Optional |
Charger system |
|
|
Battery Charger |
600W |
|
Charging Current |
30A |
|
Efficiency |
85% |
|
Socket |
AC120V |
Gasoline Generator (OPTIONAL) |
|
|
Power Output |
DC 25.6V |
|
Rate Power |
1.8KW |
|
Fule/ Tank Volume |
Regular Gasoline, 50L |
|
Fule Consumption |
Less than 0.5L/h |
|
Start/Stop Mode |
Auto Start: SOC ( State of Charge) at 20% |
|
Noise Level |
Less than 65dB |
Dimension |
|
|
Shipping |
88 x 67 x 83in (2230 × 1690 × 2100 mm) |
|
Transportation |
139 x 65 x 114 in (3530 × 1650 × 2890 mm) |
|
Operation |
139 x 95 x 292in (3530 × 2400 × 7420 mm) |
Others |
|
|
Material |
Steel Q235 |
|
Powder |
Outdoor + Anti-Corrosion |
|
Weight |
2200lbs (1000kg) |
|
Strobe Light |
2PCS on the camera mounting box, 2PCS on the trailer body |
|
System Voltage |
DC24V |
|
Work Temperature |
-4°F ~ 140°F (-20°C ~ 60°C) |
