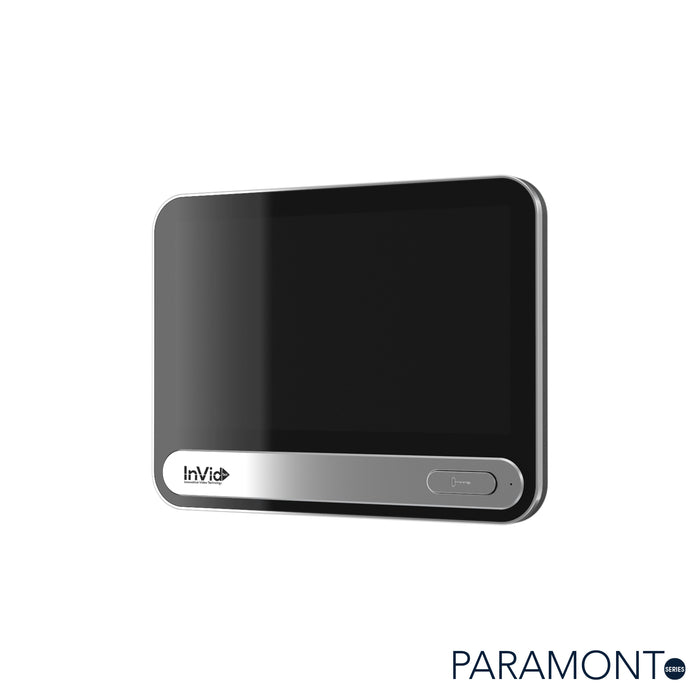

PAR-7DOORSTATION: Video Indoor Station
Description
Video Indoor Station
Features
- 7 inch IPS touch screen
- A maximum of 6 indoor stations can be installed in the same room
- Supports live preview of door stations and linked cameras
- Supports snapshot when calling via door station (micro SD card required)
- Supports “Do Not Disturb” function
- Supports noise suppression and echo cancellation
- 8CH zone alarm access function
- Self-define unlocking password
- Supports 2.4G WIFI
- Supports 1CH 12V200mA power output for powering up a sensor
Specs
System |
|
|
Operating System |
Linux |
Display |
|
|
Display Screen |
7 inch IPS touch screen |
|
Display Resolution |
1024 ×600, brightness:300 cd/m2 |
|
Operation Method |
Capacitive touch screen |
Video |
|
|
Video Input |
Max. 4CH videos can be viewed simultaneously |
|
Network Input Resolution |
6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF |
|
Compression |
H.265+/H.265/ H.264 |
Audio |
|
|
Local Input |
Built-in microphone |
|
Local Output |
Built-in speaker |
|
Compression |
G.711(U/A) |
Record |
|
|
Resolution |
Up to 8MP |
|
Frame Rate |
NTSC: 30fps; PAL:25fps |
Playback |
|
|
Simultaneous Playback |
Max.1CH |
Performance |
|
|
Linked IPC |
Max. 16 CH |
|
Linked Indoor Extensions |
Max. 5 |
Network |
|
|
Interface |
RJ 45 100 Mbps self-adaptive Ethernet port ×1 |
|
Wireless Network |
WiFi 802.11b/g/n |
|
Protocol |
TCP / IP, DHCP, DNS, NTP, etc. |
|
Incoming/Outgoing Bandwidth |
40/40Mbps |
Interface |
|
|
Audio |
Built-in speaker and microphone, support noise suppression and echo cancellation |
|
Storage |
Built-in micro SD card slot, up to 256GB |
|
Reset |
Yes |
|
Alarm Input |
8CH |
|
Wi-Fi |
Yes,2.4G Wi-Fi |
|
Unlocking Button |
Yes |
|
RS 485 |
Reserved |
|
Power Output |
DC12V 200mA (only available when DC12V power supply is used) |
Others |
|
|
Power |
DC12V/POE |
|
Power Consumption |
< 6W |
|
Dimensions |
7.11 x 5.3 x 1.1 in (180.6 x 135.6 x 26.8mm) |
|
Weight (net) |
Approx. .79lbs (0.36kg) |
|
Installation |
Wall mounting |
|
Working Environment |
-4°F ~ 122°F (-20°C ~ 50°C) , Humidity: less than 95% (non-condensing) |
|
Certificate |
CE, FCC |
|
Environmental Protection |
Complies with Directive EU RoHS, REACH and WEEE |
Ordering
PAR-7DOORSTATION: Video Indoor Station
