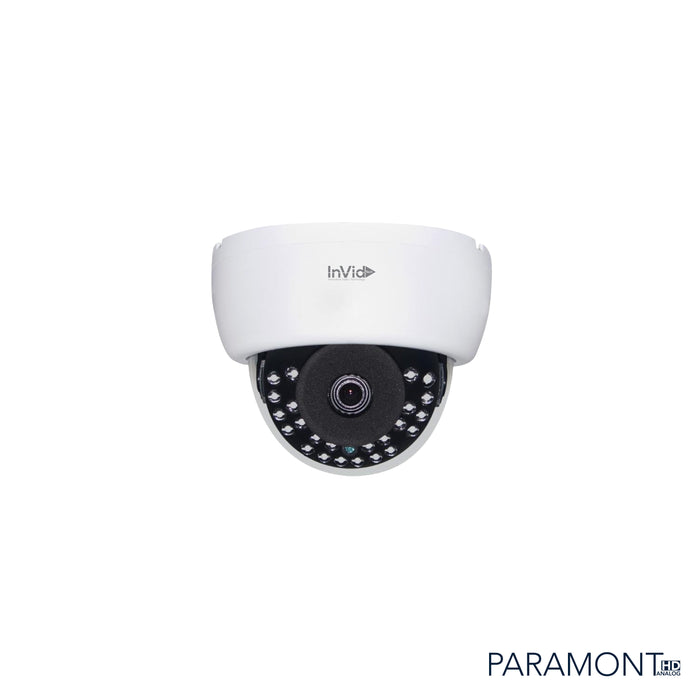

PAR-ALLDIRS2812DN: 2 Megapixel Dome, 2.8-12mm
Description
2 Megapixel TVI/AHD/CVI/Analog, Indoor Dome 2.8-12mm, up to 49’ IR Range, D-WDR, Dual Voltage
Features
- 2 Megapixel 1080p (TVI/AHD/CVI) Resolution
- All-in-One Technology (TVI/AHD/CVI/Analog 960h)
- Varifocal 2.8-12mm Lens
- True Day/Night
- D-WDR
- IR Range up to 49’
- Up The Cable (UTC) Function
- Indoor Only
- Dual Voltage
NDAA Compliant Product-Learn More Here.
Specs
|
Camera |
PAR-ALLDIRS2812DN |
|
Image Sensor |
CMOS sensor 1/3” |
|
Lens |
2.8-12mm varifocal (F1.4) |
|
LED Lights |
24pcs |
|
Effective IR Distance |
49’ |
|
Default Mode |
TVI 1080p, AHD1080p, CVI 1080p, analog 960H |
|
Number of Effective Pixels |
1920 (H) x 1080 (V) |
|
Resolution |
1080p |
|
Min. Illumination |
0.1 lux/F1.4(color mode); 0 lux (IR on) - B/W mode |
|
S/N Ratio |
> 52 dB (AGC off) |
|
Electronic Shutter |
NTSC:1/60-1/100,000S PAL:1/50-1/100,000S |
|
Wide Dynamic Range (WDR) |
DWDR |
|
White Balance |
ATW |
|
OSD Menu |
YES |
|
BackLight Compensation |
AUTO |
|
AUTO Gain Control |
ON |
|
Noise Reduction |
3D/2D-DNR |
|
Sens-up |
CLOSE/OPEN |
|
WDR |
DWDR |
|
Image Adjustment |
Contrast/Sharpness/Saturate: |
|
Dimensions (Ф x H) |
4.4 x 3.4in (112 x 87mm) |
|
Weight |
.37 lbs (0.17kg) |
|
Enclosure |
Plastic |
|
Power Supply |
12 VDC&24 VAC |
|
Power Consumption |
1 W , 2.7 W (IR on) |
|
Operating Temperature |
-22°F ~ 104°F (-30°C ~ 40°C) |
Ordering
PAR-ALLDIRS2812DN: 2 Megapixel Dome, 2.8-12mm
