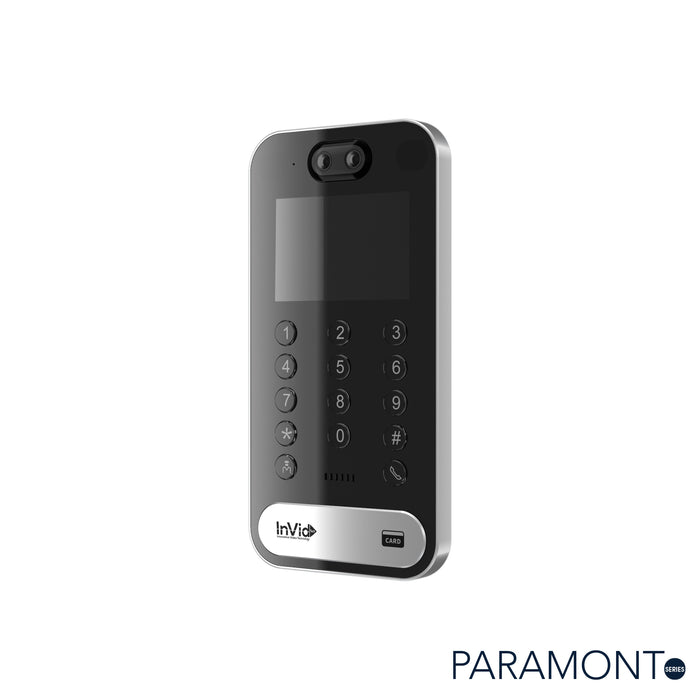

PAR-P2INTERCOM: Video Intercom Door Station
Description
Video Intercom Door Station
Features
- 3.5 inch IPS screen
- 2MP (1920×1080) real-time H.265 coding
- Face recognition distance: 0.3m-2m
- True P2P Connectivity with QR Code Connect NAT 1.0
- Support face detection technology distinguishing real faces from
non-real face spoof attacks - Support 3D DNR, HWDR, BLC, HLC, Defog, etc.
- Support multiple door opening modes (by swiping card, by password,
by face recognition, etc.) - Support door opening by indoor station or by mobile APP
- Support copy-prevention for IC card; support IC card encryption
- Support anti-tampering alarm; support triggering alarms when the door
is not secured or the door is broken by others - One-button calling indoor station
- Support card reader access access via RS485 interface
- Support 2.4G Wi-Fi; Support P2P function
- Support remote surveillance via mobile APP, web browser or tablet PC
- Intelligent analytics: video exception detection, face detection, face capture, face comparison
- IP67
Specs
Camera |
|
|
Image Sensor |
1/2.8" Progressive Scan CMOS |
|
Image Size |
1920×1080 |
|
Electronic Shutter |
Auto/Manual; Manual:1/2s ~ 1/100000s |
|
IRIS Type |
Fixed IRIS |
|
MIN. Illumination |
Color 0.0085lux@F1.2 AGC ON B&W 0 lux with IR |
|
Lens |
M8 HD dual lens: 2.3mm@F2.2 Vertical FOV: approx. 74 Horizontal FOV: approx. 139 , Diagonal FOV: approx. 170 |
|
WDR |
120dB |
|
S/N Ratio |
50dB |
|
BLC |
Yes |
|
HLC |
Yes |
|
Defog |
Yes |
|
DNR |
2D/3D NR |
Image |
|
|
Video Compression |
Main stream: H.265+/H.265/H.264+/H.264 Sub/third stream: H.265+/H.265/H.264+/H.264/MJPEG |
|
H.264 Compression Standard |
Baseline Profile/Main Profile/High Profile |
|
Bit rate Type |
VBR/CBR |
|
Bit Rate |
64Kbps ~ 6Mbps |
|
Resolution |
1080P(1920×1080), 720P(1280×720), D1, CIF, 480×240 |
|
Main Stream |
1920×1080/1280×720(60Hz: 1~30fps; 50Hz: 1~25fps ) |
|
Sub Stream |
720P/D1/CIF(60Hz: 1~30fps; 50Hz: 1~25fps ) |
|
Third Stream |
D1/CIF/480×240(60Hz: 1~30fps; 50Hz: 1~25fps ) |
|
Image Setting |
Saturation, hue, brightness, contrast, wide dynamic range, sharpness, NR, etc., adjustable through client or web browser |
|
Audio Compression |
G711A/U |
Screen |
|
|
3.5 Inch ISP Screen |
Resolution: 320 (RGB) ×480 |
|
Brightness |
250cd/m2 |
|
Auto sleeping |
Support auto wakeup when detecting a person or wakeup by pressing a button |
Card |
|
|
Card Type |
Mifare card /Desfire card/FM1208 Card/Gicard |
|
Card Reading Protocol |
ISO14443A/B protocol,EM41XX |
|
Card Reading Frequency |
13.56MHz & 125KHz |
|
Card Reading Duration |
<1s |
|
Card Reading Distance |
0~2cm |
|
Card Capacity |
10000 |
Interfaces |
|
|
Network |
RJ45(10/100 Base-T) |
|
Video Output |
No |
|
Audio |
Built-in MIC×1, built-in speaker×1; support noise suppression and echo cancellation |
|
Storage |
1CH built-in micro SD card, up to 256GB |
|
Reset |
Yes |
|
RS485 |
Yes (for card reader or access control system access) |
|
Wiegand Interface |
Yes (Wiegand input or output configurable) |
|
Alarm |
2CH alarm input; 1CH alarm output |
|
Door Lock Output |
2CH |
|
Door Contact Input |
2CH |
|
Exit Button |
2CH |
|
Anti-Tamper Interface |
1CH |
|
Swiping Card Area |
Support IC card/EM card |
|
Digital Buttons |
Yes |
|
Wi-Fi |
Support 2.4G Wi-Fi function |
Access Control |
|
|
Personal Properties |
Face picture, ID number, list type(group), name, gender, age, phone number, card ID, password, door opening mode, note |
|
Door Opening Modes |
By face recognition/swiping card/password/indoor station/APP |
|
Schedule |
Yes |
|
Mask Detection |
Yes |
|
Duress Function |
Yes |
|
Secondary Door Station |
Yes |
|
Capacity |
50000 event items can be recorded; 10000 pictures can be captured |
Function |
|
|
Remote Monitoring |
Web client/indoor station/CMS remote control |
|
Online Connection |
Supports simultaneous monitoring for up to 10 users Supports multi-stream real time transmission |
|
Network Protocol |
UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, UPnP, HTTPS |
|
Interface Protocol |
ONVIF |
|
Storage |
Network remote storage SD card storage cloud storage |
|
Intelligent Analytics |
Video loss, SD card error, SD card full, IP address conflict, network disconnection |
|
General Function |
Watermark, IP address filtering, video mask, heartbeat, illegal login |
|
PoE |
Yes (802.3af) |
|
P2P |
Yes, turn on by default |
|
IR Distance |
0.3-2m |
|
Protection Grade |
IP67 IK04 |
|
Network Security |
Video encryption, firmware encryption, configuration encryption, Digest, illegal login lock, IP address filtering, HTTPS, 802.1x |
Intelligent Analytics |
|
|
Intelligent Analytics |
Face detection, face capture, face comparison |
|
Face Detection |
Pupil distance of a facial image over 20 pixel can be detected |
|
Face Capture |
Outputting the optimal face image by precise detecting, tracing, capturing, scoring and screening the moving faces |
|
Original Image Capturing |
Supports original image capturing and self-defined overlaid information (like device ID, time, etc.) |
|
Face Picture Database |
10000 |
|
Face Comparison Storage |
Face pictures can be added, modified or deleted in the face database. |
|
Face Picture Adding |
Adding face pictures through WEB, face album manager tool |
|
External Face Picture Enrollment |
Size: less than 70KB JPG/JPEG format |
|
Face Comparison Alarm |
Face detection alarm, allow list, block list and stranger alarm |
Others |
|
|
Power |
DC12V/PoE |
|
Power Consumption |
< 6W |
|
Environmental Protection |
RoHS 2.0 REACH WEEE directive94/62/EC |
|
Working Environment |
-4°F ~ 140°F (-20°C ~ 60°C) , Humidity: less than 95% (non-condensing) |
|
Dimensions(mm) |
Approx. 8.3 x 4.1 x 1.2 in (210mm ×104mm ×30mm) |
|
Weight (net) |
Approx. 1.3lbs (0.6 kg) |
|
Installation |
Wall Mounting |
Ordering
PAR-P2INTERCOM: Video Intercom Door Station
