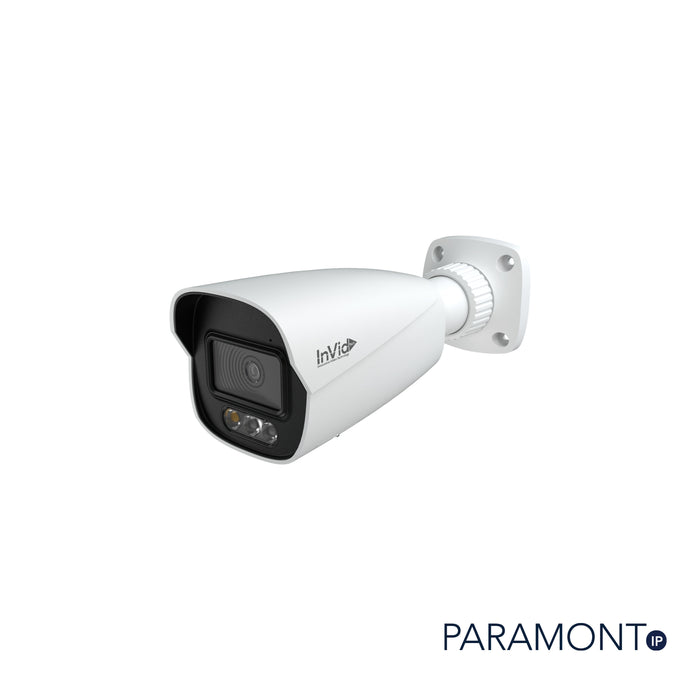

PAR-P4BIRA27135NH-AI2: 4 Megapixel Bullet, 2.7-13.5mm
Description
4 Megapixel IP Plug & Play, Outdoor Bullet, 2.7-13.5mm Motorized Auto-Focus Lens, True AI, Dual Built-in Mics with Audio Input & Output, SD Card Slot, 12VDC/PoE
KEY FEATURES
- True AI Human & Vehicle Classification for Line Crossing, Intrusion Detection, & Other AI Features
- Supplemental Light: IR, White Light, or White Light Trigger
- 2nd Level Video Metadata (Advanced Forensic Search)
CORE FEATURES
- 4 Megapixel
- Motorized Auto-Focus 2.7-13.5mm
- Cloud Upgradeable
- True P2P Connectivity with QR Code Connect NAT 2.0
- Micro SD Slot: Up to 512GB
- Dual Built-in Mics with External Audio Input & Output
- True Day/Night with IR Range up to 164' or White Light Range up to 131’
- IP67 Weatherproof
- ONVIF
- Supports Native Chrome/Edge Use
- 12VDC/PoE Operation
- Free iOS & Android Apps for Smart Phones & Tablets
- Free Central Management Software (CMS) for PC/MAC
NDAA Compliant Product-Learn More Here.
Specs
|
Model |
PAR-P4BIRA27135NH-AI2 |
|
Camera |
|
|
Image Sensor |
1 / 2.7"CMOS |
|
Max. Resolution |
2688 × 1520 |
|
Electronic Shutter |
1 / 3s ~ 1 / 100000 s |
|
Iris Type |
DC Iris |
|
Min. Illumination |
0.005 lux @F1.3, AGC ON; 0 lux with illumination on |
|
S/N Ratio |
≥50dB |
|
Lens |
2.7~13.5mm@F1.3, H.FoV: 101°~ 30°; V.FoV: 54°~17°; D.FoV: 121°~35 |
|
Focus |
Motorized |
|
Lens Mount |
Ø14 |
|
Wide Dynamic Range |
120dB |
|
BLC |
Yes |
|
HLC |
Yes |
|
Defog |
Yes |
|
Digital NR |
3D DNR |
|
Angle Adjustment |
Pan: 0°~360°; Tilt:0°~90°; Rotation: 0°~360° |
|
Image |
|
|
Video Compression |
Main/Fourth stream: H.265+/H.265/H.264+/H.264 Sub/Third stream: H.265+/H.265/H.264+/H.264/ MJPEG |
|
H.264 Compression Standard |
Baseline Profile/Main Profile/High Profile |
|
Resolution |
4MP (2688×1520), 2K (2560×1440), 1080P (1920×1080), 720P (1280×720 ), D1, VGA (640 ×480), 640 ×360, CIF, 480×240 |
|
Main Stream |
4MP/2K/1080P( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) |
|
Sub Stream |
1080P/720P/D1/VGA/640 ×360/CIF/480×240 (60Hz:1~30fps; 50Hz:1~25fps) |
|
Third Stream |
D1/VGA/640 ×360/CIF/480×240 (60Hz : 1 ~ 30fps; 50Hz: 1~25fps) |
|
Fourth Stream |
1080P/720P/D1/VGA/640×360 (60Hz:1~30fps; 50Hz:1~25fps) |
|
Bit Rate |
32 Kbps ~ 8 Mbps |
|
Bit Rate Type |
VBR / CBR |
|
Audio Compression |
G711A / U |
|
Image Settings |
ROI, Saturation, Brightness, Hue, Contrast,Wide Dynamic, Sharpness, Image Flip, Image Mirror, NR, etc. adjustable through client software or web browser |
|
ROI |
8 ROI, each ROI to be configured separately |
|
Interfaces |
|
|
Network |
RJ 45 (10/100 Base-T) |
|
Video Output |
No |
|
Audio |
1CH audio input; 1CH audio output; 2CH built-in microphones |
|
Storage |
Built-in micro SD card slot; up to 512G |
|
Reset |
Yes |
|
Alarm |
1CH alarm input; 1CH alarm output |
|
Intelligent Analytics |
|
|
Intelligent Video Detection (IVD) |
Line crossing/ region intrusion/entrance/exiting (human/vehicle classification), loitering detection, illegal parking detection, abandoned/missing object detection people gathering detection |
|
Statistics |
Target counting by line/area, heat map |
|
Exception Detection |
Scene change, video blur and abnormal color detection, audio exception |
|
Face Detection |
Face detection and face capture |
|
Video Metadata |
Simultaneously captures human body, motor vehicle and non-motor vehicle and extracts 13 human features, 4 motor vehicle features and 1 non-motor vehicle feature |
|
DORI Distance |
|
|
Lens |
Detect Observe Recognize Identify |
|
2.7~13.5mm(W) |
196ft (60m) 78ft (24m) 39ft (12m) 20ft (6m) |
|
2.7~13.5mm(T) |
667ft (203m) 267ft (81m) 133ft (41m) 67ft (20m) |
|
Functions |
|
|
Remote Monitoring |
Web Client/NVR/Paramont CMS 2.0/ Paramont CMS Mobile APP |
|
Web Browser |
Chrome 105.0+/Edge 105.0+/Firefox 121.0+/Safari 14.0+ |
|
Online Connection |
Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission |
|
Network Protocol |
UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, FTP, PPPoE, DDNS, SMTP, SNMP, HTTP, 802.1x, UPnP, HTTPS, NAT, QoS, ICMP, IGMP |
|
Interface Protocol |
ONVIF Profile S/G/M/T |
|
API&SDK |
Yes |
|
Storage |
Network remote storage; micro SD card storage |
|
Smart Alarm |
Motion detection, SMD, sensor alarm, SD card error, SD card full, IP address conflict, cable disconnection, audio alarm |
|
General Function |
Watermark, video mask, heartbeat, smart IR, smart supplement light, corridor pattern, image distortion correction, ANR, cloud upgrade, disarming |
|
Security |
Firmware encryption, HTTPS encryption, configuration encryption, video encryption, illegal login lock, IP address filtering, 802.1x, log out after timeout basic and digest authentication for HTTP/RTSP/API service, TLS1.1/1.2/1.3 |
|
PoE |
Yes , IEEE802.3af, class3 |
|
Supplement Light Range |
IR range: 164’; white light range: 131’ |
|
Ingress Protection |
IP 67 |
|
Others |
|
|
Power Supply |
DC12V/PoE |
|
Power Consumption |
DC12V: < 8.3W; PoE: < 9.7W |
|
Storage Conditions |
-22°F~149°F (- 30 °C ~ 65°C), Humidity: less than 95 % (non-condensing) |
|
Operating Conditions |
-22°F~140°F (- 30 °C ~ 60 °C), Humidity: less than 95 % (non-condensing) |
|
Dimensions |
8.6 x 3.2 x 3.2 in (217.8 × 80.5 × 80.3 mm) |
|
Weight (net) |
Approx. 1.5 lbs (0.67KG) |
|
Material |
Aluminum alloy body |
|
Installation |
Ceiling mounting; Wall mounting |
|
Certificate |
CE, FCC |
|
Environmental Protection |
Directive EU RoHS, WEEE(2012/19/EU), and REACH(EC1907/2006) |
Accessories
Ordering
PAR-P4BIRA27135NH-AI2: 4 Megapixel Bullet, 2.7-13.5mm
