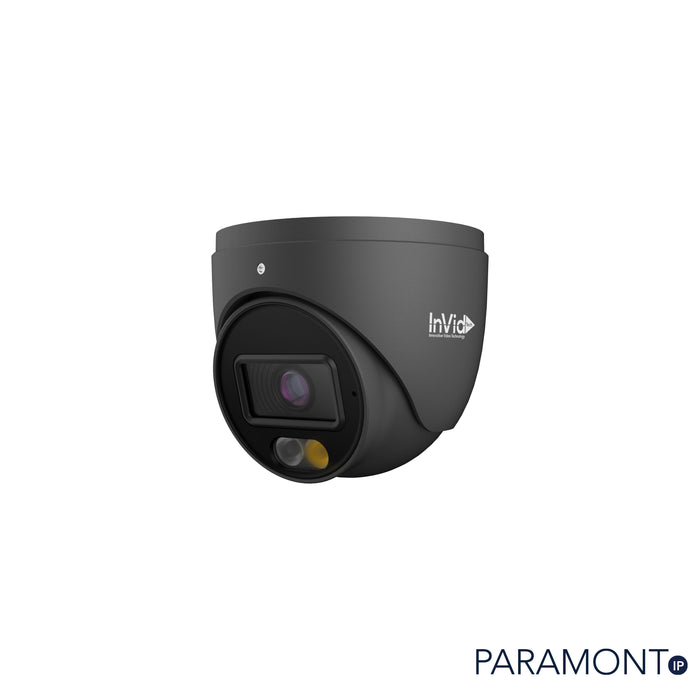

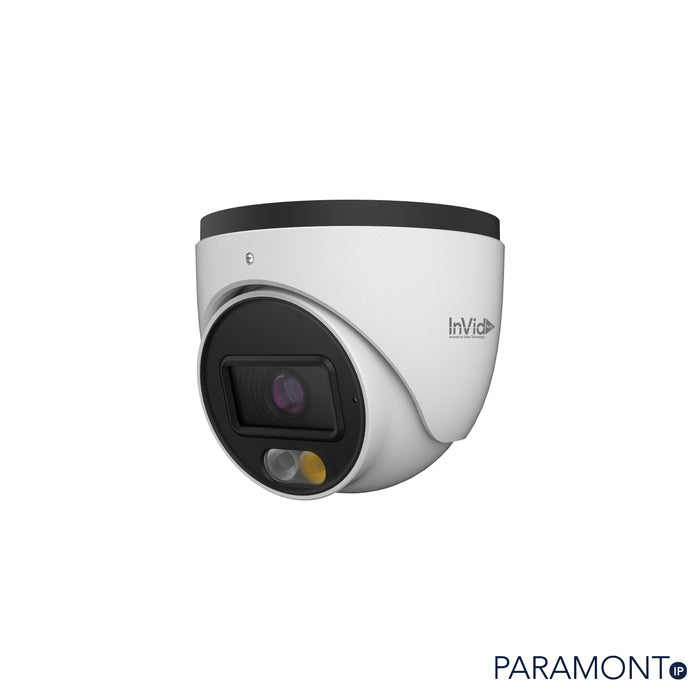

PAR-P4TXIR28NH-AI2: 4 Megapixel Turret, 2.8mm

Description

4 Megapixel IP Plug & Play, Outdoor Turret, 2.8mm Fixed Lens, True AI with 2nd Level Attributes, IR, AI-Triggered White Light, Built-in Mic, SD Card Slot, 12VDC/PoE

KEY FEATURES

  • True AI Human & Vehicle Classification for Line Crossing, Intrusion Detection, & Other AI Features
  • Supplemental Light: IR, White Light, or White Light Trigger
  • 2nd Level Video Metadata (Advanced Forensic Search)

CORE FEATURES

  • 4 Megapixel
  • Fixed 2.8mm
  • Cloud Upgradeable
  • True P2P Connectivity with QR Code Connect NAT 2.0
  • Micro SD Slot: Up to 512GB
  • Built-in Mic with External Audio Input & Output
  • True Day/Night with IR Range up to 164' or White Light Range up to 131’
  • IP67 Weatherproof
  • ONVIF
  • Supports Native Chrome/Edge Use
  • 12VDC/PoE Operation
  • Free iOS & Android Apps for Smart Phones & Tablets
  • Free Central Management Software (CMS) for PC/MAC

NDAA Compliant Product-Learn More Here.

          Specs
          Model
          PAR-P4TXIR28NH-AI2
          Camera


          Image Sensor

          1 / 2.7" CMOS

          Max. Resolution

          2688 × 1520

          Electronic Shutter

          1 / 3s ~ 1 / 100000 s

          Iris Type

          Fixed Iris

          Min. Illumination

          0.008 lux @F1.6, AGC ON; 0 lux with illumination on

          S/N Ratio

          ≥50dB

          Lens

          2.8 mm@F1.6, Horizontal FoV: 100°; Vertical FoV:55°; Diagonal FoV:120°

          Focus

          Fixed

          Lens Mount

          M12

          Wide Dynamic Range

          120dB

          BLC

          Yes

          HLC

          Yes

          Defog

          Yes

          Digital NR

          3D DNR

          Angle Adjustment

          Pan: 0°~360°; Tilt:0°~75°; Rotation: 0°~360°



          Video Compression

          Main/Fourth stream: H.265+/H.265/H.264+/H.264

          Sub/Third stream: H.265+/H.265/H.264+/H.264/ MJPEG

          H.264 Compression Standard

          Baseline Profile/Main Profile/High Profile

          Resolution

          4MP (2688×1520), 2K (2560×1440), 1080P (1920×1080), 720P (1280×720 ), D1, VGA (640 ×480), 640×360, CIF, 480×240

          Main Stream

          4MP/2K/1080P (60Hz: 1 ~ 30fps; 50Hz: 1~25fps)

          Sub Stream

          1080P/720P/D1/VGA/640×360/CIF/480×240 (60Hz:1~30fps; 50Hz:1~25fps)

          Third Stream

          D1/VGA/640 ×360/CIF/480×240 (60Hz: 1 ~ 30fps; 50Hz: 1~25fps)

          Fourth Stream

          1080P/720P/D1/VGA/640×360 (60Hz:1~30fps; 50Hz:1~25fps)

          Bit Rate

          32 Kbps ~ 8 Mbps

          Bit Rate Type

          VBR / CBR

          Audio Compression

          G711A / U

          Image Settings

          ROI, Saturation, Brightness, Hue, Contrast,Wide Dynamic, Sharpness, Image Flip, Image Mirror, NR, etc. adjustable through client software or web browser

          ROI

          8 ROI, each ROI to be configured separately

          Interfaces


          Network

          RJ 45 (10/100 Base-T)

          Video Output

          No

          Audio

          1CH audio input; 1CH audio output; 1CH built-in microphone

          Storage

          Built-in micro SD card slot; up to 512G

          Reset

          Yes

          Alarm

          No

          Intelligent Analytics


          Intelligent Video Detection (IVD)

          Line crossing/ region intrusion/entrance/exiting (human/vehicle classification), loitering detection, illegal parking detection, abandoned/missing object detection, people gathering detection

          Statistics

          Target counting by line/area, heat map

          Exception Detection

          Scene change, video blur and abnormal color detection, audio exception

          Face Detection

          Face detection and face capture

          Video Metadata

          Simultaneously captures human body, motor vehicle and non-motor vehicle and extracts 13 human features, 4 motor vehicle features and 1 non-motor vehicle feature

          DORI Distance


          Lens

          Detect Observe Recognize Identify

          2.8mm

          192 ft (58 m) 77 ft (23 m) 38 ft (12 m) 19 ft (6 m)

          Functions


          Remote Monitoring

          Web Browser, NVR, Paramont CMS, Paramont CMS App

          Web Browser

          Chrome 105.0+/Edge 105.0+/Firefox 121.0+/Safari 14.0+

          Online Connection

          Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission

          Network Protocol

          UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, FTP, PPPoE, DDNS, SMTP, SNMP, HTTP, 802.1x, UPnP, HTTPS, NAT, QoS, ICMP, IGMP

          Interface Protocol

          ONVIF Profile S/G/M/T

          API&SDK

          Yes

          Storage

          Network remote storage; micro SD card storage

          Smart Alarm

          Motion detection, SMD, SD card error, SD card full, IP address conflict, cable disconnection, audio alarm

          General Function

          Watermark, video mask, heartbeat, smart IR, smart supplement light, image distortion correction, corridor pattern, ANR, cloud upgrade, disarming

          Security

          Firmware encryption, HTTPS encryption, configuration encryption, video encryption, illegal login lock, IP address filtering, 802.1x, log out after timeout basic and digest authentication for HTTP/RTSP/API service, TLS1.1/1.2/1.3

          PoE

          Yes , IEEE802.3af, class3

          Supplement Light Range

          IR range: 65.6 ~ 98.4 ft (20 ~ 30 m);

          white light range:65.6 ~ 98.4 ft (20 ~ 30 m)

          Ingress Protection

          IP 67

          Others


          Power Supply

          DC12V/PoE

          Power Consumption

          DC12V: < 6.7W; PoE: < 7.8W

          Storage Conditions

          -22 °F ~ 149 °F (-30 °C ~ 65 °C), Humidity: less than 95 % (non-condensing)

          Operating Conditions

          -22 °F ~ 140 °F (-30 °C ~ 60 °C), Humidity: less than 95 % (non-condensing)

          Dimensions (mm)

          Ø3.7 in × 3.3 in (Ø94.6 mm × 82.8 mm)

          Weight (net)

          Approx. 1.01 lb (0.46KG)

          Material

          Aluminum alloy body

          Installation

          Ceiling mounting; Wall mounting

          Certificate

          CE, FCC

          Environmental

          Protection

          Directive EU RoHS, WEEE(2012/19/EU), and REACH(EC1907/2006)

          Accessories

          IPM-JB6: Junction Box
          IPM-PM3: Pendant Mount  (Use with IPM-JB6)
          IPM-TXWM1A: Wall Mount
          IPM-DRWM5: Wall Mount
          IPM-PTZPOLE1: Pole Mount (Use with IPM-DRWM5)
          IPM-PTZCORNER: Corner Mount (Use with IPM-DRWM5)

          Ordering

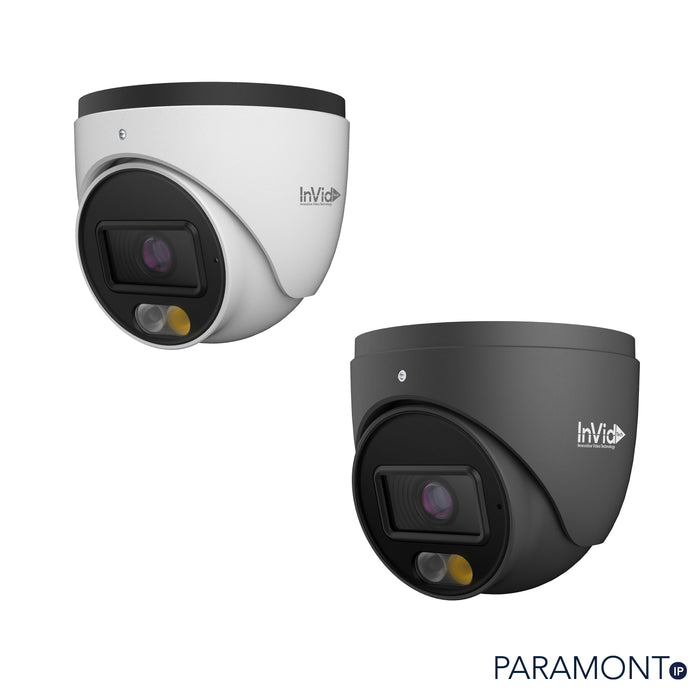

          PAR-P4TXIR28NH-AI2: 4 Megapixel Turret, 2.8mm
          PAR-P4TXIR28BNH-AI2: 4 Megapixel Turret, 2.8mm, Black

          Downloads/Support

          Spec Sheet

          Paramont Products Support Page
