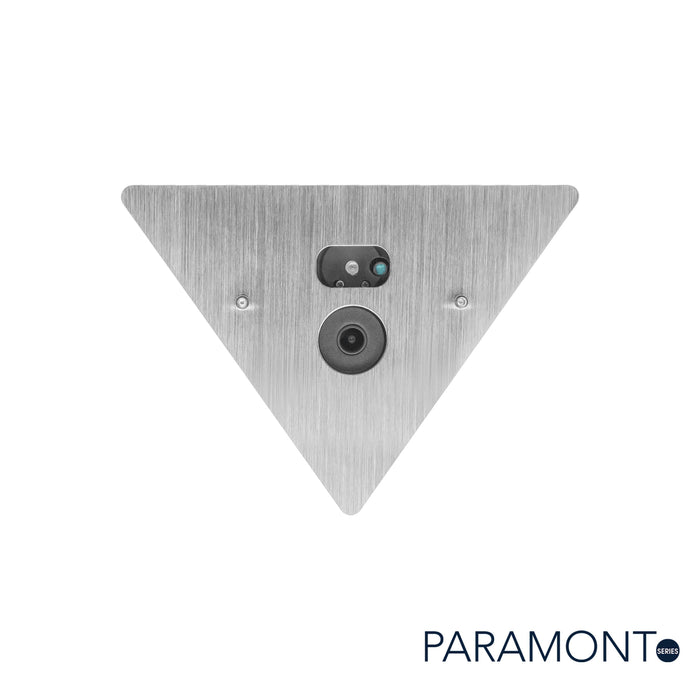

PAR-P6ELEV28NH: 6 Megapixel Elevator Camera, 2.8mm
Description
6 Megapixel IP Plug & Play, Elevator Wedge Camera, 2.8mm Fixed Lens, IR, 12VDC/PoE
Key Features
- Line Crossing & Intrusion Detection with Human/Vehicle Filtering
Core Features
- 6 Megapixel
- Fixed 2.8mm
- IP65 Weather Resistant
- ONVIF
- 12VDC/PoE Operation
- Supports Native Chrome/Edge Use
- Free iOS & Android Apps for Smart Phones & Tablets
- Free Central Management Software (CMS) for PC/MAC
NDAA Compliant Product-Learn More Here.
Specs
Model |
PAR-P6ELEV28NH |
Camera |
|
|
Image Sensor |
1/2.8" Sony IMX335 CMOS |
|
Soc Chip |
Sigmastar SSC377D |
|
Effective Pixels |
3072(H)×2048 (V) |
|
Exposure Shutter |
AUTO/Manual: 1/10s ~ 1/8000s, Max. Shutter speed adjustable |
|
Day/Night |
Auto(Active/passive/schedule)/Day/Night, switch threshold, sensitivity |
|
Image Adjust |
Brightness,Saturation,Sharpness,Contrast,Denoise (0-100%) adjustable |
|
White Balance |
AWB/MWB |
|
WDR |
100db WDR |
|
DNR |
2D/3D DNR |
Encode |
|
|
Video Standard |
H.264/H.265/MJPEG |
|
Video Resolution |
Main Stream: 25fps@6MP (3072x2048), 30fps@5MP (2592x1944) / 4MP(2560x1440) / 3MP (2304x1296) / 1080P/720P Sub stream: 10fps@720P, 30fps@D1 (704x576) / (720x480) /VGA (640x480) / QVGA (640x360) |
|
Video Bitrates |
Main stream: 64kbps-8Mbps, Sub stream: 64kbps-2048kbps |
|
Image Rotation |
0 / 90 / 180 / 270 degree adjustable |
|
Border Crop |
X crop, Y crop |
|
Image Mirror |
horizon / vertical / horizon&vertical adjustable |
|
OSD Overlay |
Font size(1-4), position,Time, Title, AM/PM, Color, User OSD, Alarm OSD |
|
Privacy Mask |
4 areas |
|
Region of Interest |
ROI: Each stream support 8 areas |
|
Audio Standard |
G.711-u/G.711-a/AAC/PCM, AEC |
Led |
|
|
Light |
1pcs SMD IR LED |
|
IR Distance |
16 - 26’ (5-8 m) |
Lens |
|
|
Focal length |
2.8mm Fixed Lens |
Smart Detection |
|
|
Motion Detection |
Yes |
|
Digital IO Alarm |
1 pair Alarm-in/Alarm-out, normally open/normally close |
|
Perimeter protection (Line Crossing + Intrusion) |
Supported. Human + Vehicle Detection Only |
|
Target Detection Type |
Human Shape, vehicle |
|
Trigger Action Linkage |
Snapshot, Record, Relay, Email, FTP |
|
Simultaneous Detection |
Maximum 16 targets simultaneous detection |
|
Storage Type |
Schedule/Trigger:Email, FTP, NAS |
Network Services |
|
|
Protocol |
HTTP(s)/RTSP/FTP/SMTP/DHCP/NTP/DST/RTP/RTMP/P2P/HiK/IPv4/IPv6/NFS |
|
Web Access |
IE, Firefox, Chrome, Edge, Safari, etc. |
|
PC Tool |
Windows |
|
ONVIF |
23.12 compatible (profile S G T M) |
General |
|
|
Network Port |
1-RJ45, 100Mbps, PoE (IEEE802.3af) |
|
Power Supply |
12VDC/PoE |
|
Power Consumption |
< 8 W |
|
Operating Temp. |
-4°F ~ 140°F (- 20 °C ~ 60°C), 10%-90%RH |
|
Language |
English, simplified Chinese, Chinese Traditional, Korean, etc. |
|
Weight |
.77 lbs (.353kg) |
|
Dimensions |
7.8 x 6.9 x 2.7 in (198 × 175 × 68mm) |
Ordering
PAR-P6ELEV28NH: 6 Megapixel Elevator Camera, 2.8mm
