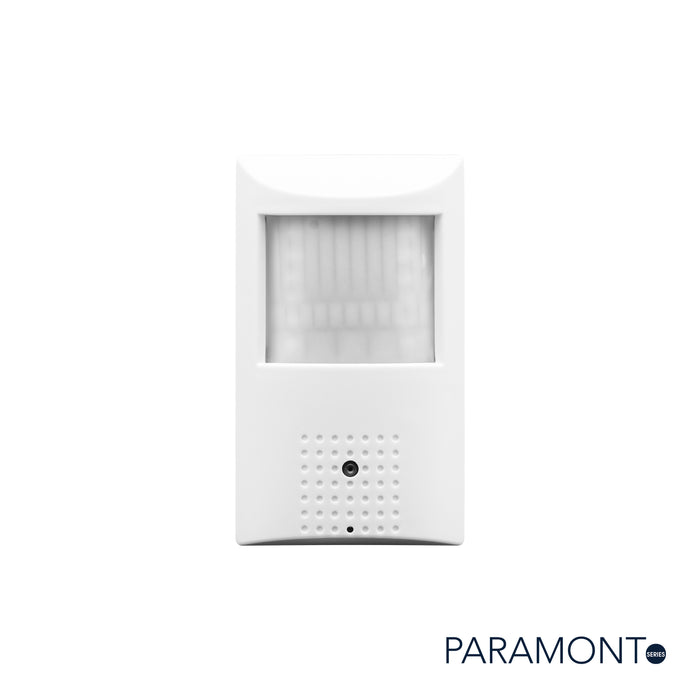

PAR-P6PIR37NH: 6 Megapixel PIR Camera 3.7mm
Description
6 Megapixel IP Plug & Play, Indoor Covert PIR Housing, 3.7mm Fixed Pinhole Lens, IR, Built-in Mic, 12VDC/PoE
Key Features
- Line Crossing & Intrusion Detection with Human/Vehicle Filtering
Core Features
- 6 Megapixel
- Fixed 3.7mm
- Built-in Mic
- True Day/Night with IR Range up to 49’
- IP65 Weather Resistant
- ONVIF
- 12VDC/PoE Operation
- Supports Native Chrome/Edge Use
- Free iOS & Android Apps for Smart Phones & Tablets
- Free Central Management Software (CMS) for PC/MAC
NDAA Compliant Product-Learn More Here.
Specs
Model |
PAR-P6PIR37NH |
Camera |
|
|
Image Sensor |
1/3” GC4653 CMOS |
|
Soc Chip |
Sigmastar SSC377D |
|
Effective Pixels |
3072(H)×2048 (V) |
|
Exposure Shutter |
AUTO/Manual: 1/10s ~ 1/8000s, Max. Shutter speed adjustable |
|
Day/Night |
Auto(Active/passive/schedule)/Day/Night, switch threshold, sensitivity |
|
Image Adjust |
Brightness,Saturation,Sharpness,Contrast,Denoise (0-100%) adjustable |
|
White Balance |
AWB/MWB |
|
DNR |
2D/3D DNR |
Encode |
|
|
Video Standard |
H.264/H.265 |
|
Video Resolution |
Main Stream: 25fps@6MP(3072x2048),30fps@5MP (2592x1944) / 4MP(2560x1440) / 3MP(2304x1296) / 1080P/720P Sub stream: 10fps@720P, 30fps@D1 (704x576) / (720x480) / VGA (640x480) /QVGA (640x360) |
|
Video Bitrates |
Main stream: 64kbps-8Mbps Sub stream: 64kbps-2048kbps VBR/CBR , quality(1-9), GOP(1-128) |
|
Image Rotation |
0 / 90 / 180 / 270 degree adjustable |
|
Border Crop |
X crop, Y crop |
|
Image Mirror |
horizon / vertical / horizon & vertical adjustable |
|
OSD Overlay |
Font size(1-4), position, Time, Title, AM/PM, Color, User OSD, Alarm OSD |
|
Privacy Mask |
4 areas |
|
Region of Interest |
ROI: Each stream support 8 areas |
|
Audio Standard |
G.711-u/G.711-a/AAC/PCM, AEC |
|
Built-in Mic |
Yes |
IR Led |
|
|
IR Led |
12xΦ5 IR Leds |
|
IR Distance |
32 - 49 ft (10-15 M) |
Lens |
|
|
Focal length |
3.7mm MP Pinhole lens |
Smart Detection |
|
|
Motion Detection |
Yes |
|
Perimeter protection (Line Crossing + Intrusion) |
Supported. Human + Vehicle Detection Only |
|
Target Detection Type |
Human Shape, vehicle |
|
Trigger Action Linkage |
Snapshot, Record, Email, FTP |
|
Simultaneous Detection |
Maximum 16 targets simultaneous detection |
|
Storage Type |
Schedule/Trigger: Email, FTP, NAS |
Network Services |
|
|
Protocol |
HTTP(s)/RTSP/FTP/SMTP/DHCP/NTP/DST/RTP/RTMP/P2P/HiK/IPv4/IPv6/NFS |
|
Web Access |
IE, Firefox, Chrome, Edge, Safari, etc. |
|
PC Tool |
Windows |
|
ONVIF |
23.12 compatible (profile S G T M) |
General |
|
|
Network Port |
1-RJ45, 100Mbps, PoE (IEEE802.3af) |
|
Power Supply |
12 VDC/PoE |
|
Power Consumption |
< 8 W |
|
Operating Temp. |
-4°F ~ 140°F (- 20 °C ~ 60°C), 10%-90%RH |
|
Language |
English, simplified Chinese, Chinese Traditional, Japanese, Korean, German, Polish, Italian, Turkish, Ukraine, Russian, etc. |
|
Weight |
.33 lbs (.148kg) |
|
Dimensions |
4.7 x 2.8 x 1.9 in (120 × 70 × 48mm) |
Ordering
PAR-P6PIR37NH: 6 Megapixel PIR Camera 3.7mm
