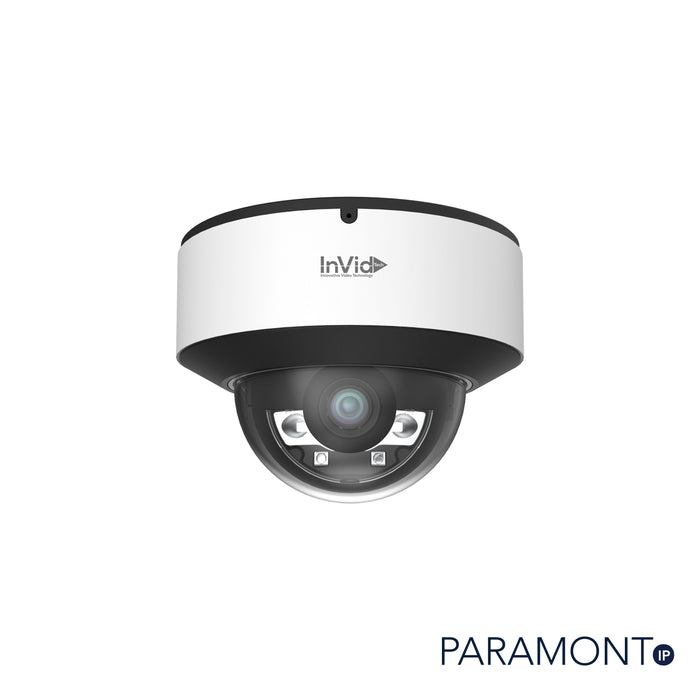

PAR-P8DRIR28-LC4: 8 Megapixel Dome, 2.8mm

Description

8 Megapixel IP Plug & Play, Outdoor Dome, 2.8mm Fixed Lens, First Level AI, IR, AI-Triggered White Light, Built-in Mic, SD Card Slot, 12VDC/PoE

KEY FEATURES

  • First Level Human and Vehicle Classification
  • AI-Triggered White Light up to 65'

CORE FEATURES

  • 8 Megapixel / 4K
  • Fixed 2.8mm
  • Cloud Upgradeable
  • True P2P Connectivity with QR Code Connect NAT 2.0
  • Micro SD Slot: Up to 256GB
  • Built-in Mic with External Audio Input
  • True Day/Night with IR Range up to 98'
  • IP67 Weatherproof
  • IK10 Vandal Resistant
  • 20 FPS Recording and Live
  • ONVIF
  • Supports Native Chrome/Edge Use
  • 12VDC/PoE Operation
  • Free iOS & Android Apps for Smart Phones & Tablets
  • Free Central Management Software (CMS) for PC/MAC

NDAA Compliant Product-Learn More Here.

          Specs
          Model
          PAR-P8DRIR28-LC4
          Camera


          Image Sensor

          1 / 2.8 "CMOS

          Image Size

          3840×2160

          Electronic Shutter

          1 / 3s ~ 1 / 100000s

          Iris Type

          Fixed Iris

          Min. Illumination

          0.01 lux @F1.6, AGC ON; 0 lux with illumination on

          Lens

          2.8mm@F1.6, Horizontal FoV: 106°; Vertical FoV:57°; Diagonal FoV:126°

          Focus

          Fixed

          Lens Mount

          M12

          Day&Night

          ICR

          Wide Dynamic Range

          120dB

          BLC

          Yes

          HLC

          Yes

          Digital NR

          Yes

          Defog

          Yes

          S/N Ratio

          ≥50dB

          Angle Adjustment

          Pan: 0°~355°; Tilt:0°~70°;Rotation: 0°~180°



          Video Compression

          Main stream: H.265+ / H.265 / H.264+ / H.264 Sub /Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG

          H.265 Compression Standard

          Main Profile@Leve4.1 High Tier

          Resolution

          8MP(3840×2160), 6MP(3200×1800), 4MP(2688×1520), 2K(2560×1440), 1080P (1920×1080), 720P (1280×720), D1, VGA (640×480), 640× 360, 480× 240, CIF

          Main Stream

          8MP(1~20fps) /6MP/4MP/2K/1080P (60Hz: 1~30fps; 50Hz: 1~25fps)

          Sub Stream

          720P/D1/VGA/640×360/CIF/480×240 (60Hz: 1~30fps; 50Hz: 1~25fps)

          Third Stream

          720P (60Hz: 1~15fps; 50Hz: 1~12fps) /D1/VGA/640×360/CIF (60Hz: 1~30fps; 50Hz: 1~25fps)

          Bit Rate

          64 Kbps ~12Mbps

          Bit Rate Type

          VBR / CBR

          Image Settings

          ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. adjustable through client software or web browser

          Audio Compression

          G711A/U

          ROI

          8ROI, Each ROI to be configured separately

          Interfaces


          Network

          RJ45 (10/100 Base-T)

          Video Output

          No

          Audio

          1CH audio input; 1CH built-in MIC

          Storage

          Built-in micro SD card slot, up to 256GB

          Reset

          Yes

          Functions


          Remote Monitoring

          Web Browser, NVR, Paramont CMS, Paramont CMS App

          Web Browser

          Chrome 105.0+/Edge 105.0+/Firefox 121.0+/Safari 14.0+

          Online Connection

          Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission

          Network Protocol

          TCP, UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, FTP, PPPoE, DDNS, SMTP, SNMP, HTTP, 802.1x, UPnP, HTTPS, NAT, QoS, ICMP, IGMP

          Interface Protocol

          ONVIF (Profile G/S/T/M)

          API&SDK

          Yes

          Storage

          Network remote storage; micro SD card storage

          Smart Alarm

          Motion detection, SMD, SD card full, SD card error, IP address conflict, cable disconnection, video exception (scene change, video blur and abnormal color detection)

          Intelligent Video Detection (IVD)

          Line crossing /region intrusion detection(human/vehicle classification), abandoned/missing object detection

          General Function

          Watermark, IP address filtering, video mask, heartbeat, smart supplement light, corridor pattern, image distortion correction, ANR, cloud upgrade, disarming

          PoE

          Yes (IEEE802.3af)

          Supplement Light Range

          IR range: 65.6 ~ 98.4 ft (20 ~ 30 m);

          white light range:32.8 ~ 65.6 ft (10 ~ 20 m)

          Ingress Protection

          IP 67 & IK 10

          Security

          Video encryption, firmware encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTP/RTSP/API

          DORI Distance


          Lens

          Detect         Observe        Recognize      Identify

          2.8mm

          261 ft (80 m) 104 ft (32 m) 52 ft (16 m) 26 ft (8 m)

          Others


          Power Supply

          DC12V/PoE

          Power Consumption

          DC12V: < 6.1W; PoE: < 7.2W

          Storage Conditions

          -22 °F ~ 149 °F (-30 °C ~ 65 °C), Humidity: less than 95 % (non-condensing)

          Operating Conditions

          -22 °F ~ 140 °F (-30 °C ~ 60 °C), Humidity: less than 95 % (non-condensing)

          Dimensions (mm)

          Ø4.7 in × 3.5 in (Ø119 mm × 87.8 mm)

          Weight (net)

          Approx. 1.41 lb (0.64KG)

          Material

          Aluminum alloy body

          Installation

          Ceiling mounting; wall mounting

          Certificate

          CE, FCC

          Environmental

          Protection

          Complies with Directive EU RoHS, WEEE (2012/19/EU), and REACH (EC1907/2006)

          Accessories

          IPM-JB7: Junction Box #7
          IPM-TXWM1A: Wall Mount #1
          IPM-PM3: Pendant Mount  (Use with IPM-JB7)
          IPM-DRWM7: Wall Mount

          Ordering

          PAR-P8DRIR28-LC4: 8 Megapixel Dome, 2.8mm

          Downloads/Support

          Spec Sheet

          Paramont Products Support Page
