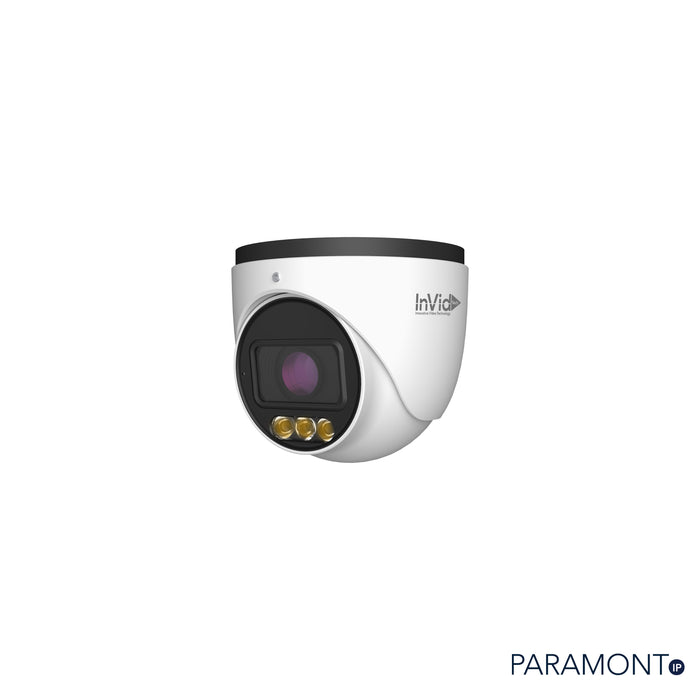

PAR-P8FACETXIRA2812G1: 8 Megapixel Turret, 2.8-12mm Lens
Description
8 Megapixel/4K IP Plug & Play, Outdoor Turret 2.8-12mm Motorized Auto-Focus, Facial Recognition Capable, Full Color 24/7, Built-in Mic with External Audio Input & Output, SD Card Slot, 12VDC/PoE
Key Features
-
Facial Recognition Capable
- Full Color 24/7 — Captures vivid color in near-total darkness. Includes 98' white light, off by default, available for specialized use.
Core Features
- 8 Megapixel / 4K
- Motorized Auto-Focus 2.8-12mm
- Cloud Upgradeable
- True P2P Connectivity with QR Code Connect NAT 2.0
- Micro SD Slot: Up to 1 TB
- 30 FPS Recording and Live
- Built-in Mic with External Audio Input & Output
- IP67 Weatherproof
- ONVIF
- Supports Native Chrome/Edge Use
- 12VDC/PoE Operation
- Free iOS & Android Apps for Smart Phones & Tablets
- Free Central Management Software (CMS) for PC/MAC
NDAA Compliant Product-Learn More Here.
Specs
|
Model |
PAR-P8FACETXIRA2812G1 |
|
Camera |
|
|
Image Sensor |
1 / 1.8 "CMOS |
|
Image Size |
3840× 2160 |
|
Electronic Shutter |
Auto or manual mode; manual mode: 1 / 3s ~ 1 / 100000 s |
|
Iris Type |
DC Iris |
|
Min. Illumination |
0.0005 lux @F1.0, AGC ON; 0 lux with illumination on |
|
S/N Ratio |
≥50dB |
|
Lens |
2.8~12 mm@F1.0 Horizontal: 104°~55°;Vertical: 53°~32°; Diagonal: 126°~65° |
|
Focus |
Motorized |
|
Lens Mount |
Integrated |
|
Wide Dynamic Range |
120dB |
|
BLC |
Yes |
|
HLC |
Yes |
|
Defog |
Yes |
|
Digital NR |
3D DNR |
|
EIS |
Yes |
|
Angle Adjustment |
Pan: 0°~360°; Tilt:0°~80°; Rotation: 0°~360° |
|
Image |
|
|
Video Compression |
Main stream: H.265+/ H.265 / H.264+ / H.264 Sub stream/Third stream: H.265+/ H.265 / H.264+ / H.264/ MJPEG |
|
H.264 Compression Standard |
Baseline Profile/Main Profile/High Profile |
|
Resolution |
8MP (3840×2160),6MP (3200×1800),4MP (2688×1520),2K (2560×1440), 1080P (1920×1080), 720P (1280×720 ), D1, VGA (640 ×480), 640 ×360, CIF, 480×240 |
|
Main Stream |
8MP/6MP/4MP/2K/1080P( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) |
|
Sub Stream |
1080P(1~15fps)/720P/D1/640 ×360 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) |
|
Third Stream |
720P/D1/640 ×360/VGA/CIF/480×240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) |
|
Bit Rate |
32 Kbps ~12 Mbps |
|
Bit Rate Type |
VBR / CBR |
|
Audio Compression |
G711A / U |
|
Image Settings |
ROI, Saturation, Brightness, Hue, Contrast,Wide Dynamic, Sharpness, Image Flip, Image Mirror, NR, etc. adjustable through client software or web browser |
|
ROI |
Each ROI to be configured separately |
|
Interfaces |
|
|
Network |
RJ 45 |
|
Video Output |
No |
|
Audio |
1CH audio input; 1CH audio output; 1CH built-in microphone |
|
Storage |
Built-in micro SD card slot; up to 1 TB |
|
Reset |
Yes |
|
Alarm |
1CH alarm input; 1CH alarm output |
|
Intelligent Analytics |
|
|
Smart Event |
Line crossing, region intrusion/entrance/exiting (human/vehicle classification), abandoned/ missing object detection, loitering detection, illegal parking detection |
|
Statistics |
Target counting by line/area, heat map |
|
Exception Detection |
Scene change, video blur and abnormal color detection |
|
Face Detection |
Face detection, face capture and face comparison |
|
Video Metadata |
Simultaneously captures human body, motor vehicle and non-motor vehicle and extracts 13 human features, 4 motor vehicle features and 1 non-motor vehicle feature |
|
DORI Distance |
|
|
Lens |
Detect Observe Recognize Identify |
|
2.8~12mm(W) |
284ft (87m) 114ft (35m) 57ft (17m) 28ft (9m) |
|
2.8~12mm(T) |
494ft (151m) 198ft (60m) 99ft (30m) 49ft (15m) |
|
Functions |
|
|
Remote Monitoring |
Web Client/NVR/Paramont CMS 2.0/ Paramont CMS Mobile APP |
|
Web Browser |
Chrome 92.0+/Edge 92.0+/Firefox 91.0+/Safari 13.1+ |
|
Online Connection |
Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission |
|
Network Protocol |
UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, FTP, PPPoE, DDNS, SMTP, SNMP, HTTP, 802.1x, UPnP, HTTPS, HTTP POST, P2P, QoS |
|
Interface Protocol |
ONVIF (Profile G/S/T/M) |
|
API & SDK |
Yes |
|
Storage |
Network remote storage; micro SD card storage |
|
Smart Alarm |
Motion detection, SMD, SD card error, SD card full, IP address conflict, Network disconnection, sensor alarm, audio alarm |
|
General Function |
Watermark, video mask, heartbeat, image distortion correction, corridor pattern, ANR, cloud upgrade, disarming |
|
Security |
Video encryption, firmware encryption, HTTPS encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and token authentication for HTTP/RTSP |
|
PoE |
Yes , IEEE802.3af |
|
White Light Range |
98’ (30m) |
|
Ingress Protection |
IP 67 |
|
Others |
|
|
Power Supply |
DC12V/PoE |
|
Power Consumption |
DC12V: < 11.1W; PoE: <12.6W |
|
Storage Conditions |
-22°F~149°F (- 30 °C ~ 65°C), Humidity: less than 95 % (non-condensing) |
|
Operating Conditions |
-22°F~140°F (- 30 °C ~ 60 °C), Humidity: less than 95 % (non-condensing) |
|
Dimensions |
Φ 4.4 x 3.9in (111.6 × 99.6mm) |
|
Weight ( net ) |
Approx. 1.5lbs (0.688KG) |
|
Installation |
Ceiling mounting; Wall mounting |
|
Certificate |
CE, FCC |
|
Environmental Protection |
Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) |
Accessories
IPM-JB4A: Junction Box
IPM-DRWM6: Wall Mount
IPM-WALLMOUNT2: Wall Mount (MUST Use with IPM-JB4A)
IPM-TXWM1A: Wall Mount #1
IPM-PTZPOLE1: Pole Mount (Use with IPM-JB4A & IPM-WALLMOUNT2)
IPM-PTZCORNER: Corner Mount (Use with IPM-JB4A & IPM-WALLMOUNT2)
Ordering
PAR-P8FACETXIRA2812G1: 8 Megapixel Turret, 2.8-12mm Lens
