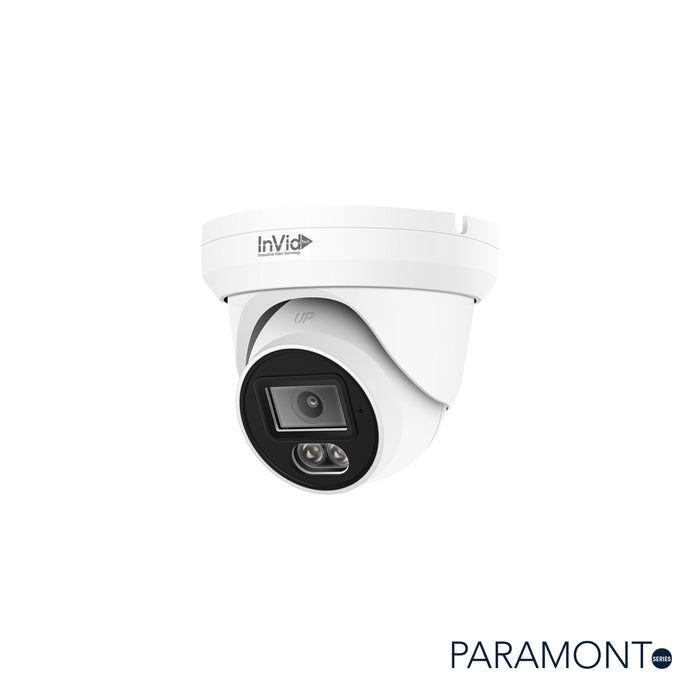

PAR-P8TXIR28-LCIR: 8 Megapixel Turret, 2.8mm
Description
8 Megapixel IP Plug & Play, Outdoor Turret, 2.8mm Fixed Lens, First Level AI, IR, Built-in Mic, 12VDC/PoE
KEY FEATURES
- First Level Human and Vehicle Classification
CORE FEATURES
- 8 Megapixel / 4K
- Fixed 2.8mm
- Built-in Mic
- True Day/Night with IR Range up to 98’
- IP67 Weatherproof
- ONVIF
- Supports Native Chrome/Edge Use
- 12VDC/PoE Operation
- Free iOS & Android Apps for Smart Phones & Tablets
- Free Central Management Software (CMS) for PC/MAC
NDAA Compliant Product-Learn More Here.
Specs
Model |
PAR-P8TXIR28-LCIR |
Camera |
|
|
Image Sensor |
1/2.7" 8MP GC8613 CMOS |
|
SoC Chip |
Sigmastar SSC378DE |
|
Effective Pixels |
3840(H)×2160 (V) |
|
Exposure Shutter |
AUTO/Manual: 1/10s ~ 1/8000s, Max Shutter speed adjustable |
|
Day/Night |
Auto(Active/passive/schedule)/Day/Night, switch threshold, sensitivity, anti-flicker(Auto/50Hz/60Hz) |
|
Image Adjust |
Brightness,Saturation,Sharpness,Contrast,Denoise (0-100%) adjustable |
|
White Balance |
AWB/MWB |
|
Light Mode |
Smart(dual-light) / Infrared / White light, adjustable |
|
Light Control |
Auto/Manual, Brightness level (0-100%) adjustable |
|
DNR |
2D/3D DNR |
Encode |
|
|
Video Standard |
H.264/H.265 |
|
Video Resolution |
Main Stream: 20fps@8MP(3840x2160),30fps@6MP(3072x2048)/5MP(2592x1944)/4MP(2560x1440)/3MP(2304x1296)/1080P/720P Sub stream: 10fps@720P,30fps@D1(704x576)(default)/(720x480)/VGA(640x480)/QVGA(640x360) |
|
Video Bitrates |
Main stream: 64kbps-8Mbps Sub stream: 64kbps-2048kbps VBR/CBR , quality(1-9), GOP(1-128) |
|
Image Snapshot |
Sub Stream(SD) snapshot |
|
Image Rotation |
0 / 90 / 180 / 270 degree adjustable |
|
Border Crop |
X crop, Y crop |
|
Image Mirror |
horizon / vertical / horizon&vertical adjustable |
|
OSD Overlay |
Font size(1-4), position,Time, Title, AM/PM, Color, User OSD, Alarm OSD |
|
Privacy Mask |
4 areas |
|
Region of Interest |
ROI: Each stream support 8 areas |
|
Audio Standard |
G.711-u/G.711-a/AAC/PCM, AEC |
|
Built-in Mic |
Yes |
Led |
|
|
Light |
2pcs IR & Warm dual Lights (White Light can only be set in IPC menu) |
|
Light Distance |
6’ - 98’ (20-30m) |
Lens |
|
|
Focal length |
F1.6 2.8 mm Fixed Lens |
Smart Detection |
|
|
Motion Detection |
Yes |
|
Human Vehicle Detection |
Yes, 6’ - 65’ (2-20 meters) |
|
Perimeter protection |
Supported. Human + Vehicle Detection pnly |
|
Face Detection |
Yes, 3’ - 16’ (1-5 meters) |
|
Target Detection Type |
Human Shape, vehicle |
|
Trigger Action Linkage |
Snapshot, Record, Email, FTP |
|
Simultaneous Detection |
Maximum 16 targets simultaneous detection |
|
Storage Type |
Schedule/Trigger: Email, FTP, NAS(NFS) |
Network Services |
|
|
Protocol |
HTTP(s)/RTSP/FTP/SMTP/DHCP/NTP/DST/RTP/RTMP/P2P/HiK/IPv4/IPv6/NFS/DDNS |
|
IP Address Filtering |
Yes (Allow list, Deny list) |
|
Web Access |
IE, Firefox, Chrome, Edge, Safari, etc. (Windows/Linux/Mac/Chromebook/Tablet/Mobile phone) |
|
PC Tool |
Windows |
|
ONVIF |
23.12 compatible (profile S G T M) |
General |
|
|
Network Port |
1-RJ45, 100Mbps, POE(IEEE802.3af) |
|
Power Supply |
12 VDC ± 10% |
|
Power Consumption |
< 8 W |
|
Operating Temp. |
-4°F ~ 140°F (- 20 °C ~ 60°C), 10%-90%RH |
|
Weight |
0.76 lb (0.346 kg) |
|
Dimensions |
4.37” x 3.74” H (111 x 95 mm) |
|
Language |
English, simplified Chinese, Chinese Traditional, Japanese, Korean, German, Polish, Italian, Turkish, Ukraine, Russian, etc |
Accessories
SEC-JB1: Junction box
IPM-JBIR: Junction box
IPM-TXWMIR: Wall mount
Ordering
PAR-P8TXIRA2812-LC4: 8 Megapixel Turret, 2.8-12mm
