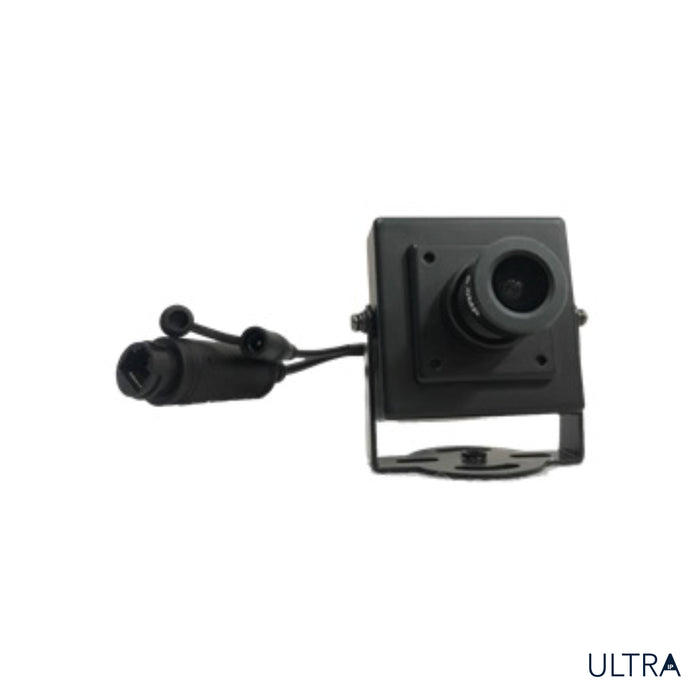

ULT-P5SQPOENH: 5 Megapixel IP Miniature Camera
Description
5 Megapixel IP Miniature Square PoE Camera
Features
- 5 Megapixel Resolution
- True Day/Night
- H.265/H.264/MJPEG
- 30 FPS Recording and Live
- WDR
- 12VDC
- ONVIF
- Free iOS & Android Apps for Smart Phones & Tablets
- Free Central Management Software (CMS)
- Free MAC Client
NDAA & TAA Compliant Product-Learn More Here.
Specs
Specification |
ULT-P5SQPOENH |
Image |
|
|
Image Sensor |
Sony Exmor 5.69Mega Pixels Image Sensor |
|
Size |
1/2.8 inch |
|
Scan method |
Progressive Scan |
|
Total Pixels |
2704(H) x 2104(V), 5.69 Mega Pixels |
|
Effective Pixels |
2616(H) x 1964(V), 5.14 Mega Pixels |
Function |
|
|
Day & Night |
Auto / Day (Color) / Night (BW), ICR Control |
|
Privacy Area |
On / Off (8 Programmable Zones) |
|
Motion Detection |
432 Zone, Sensitivity 1 ~ 5 Step, On / Off |
|
WDR |
Real WDR On / Off (Adjust) |
|
DNR |
2DNR, 3DNR, On / Off (Adjust) |
|
SLDC |
Simple Lens Distortion Correction, On / Off |
|
Defog |
detects foggy, On / Off (Adjust) |
|
Elec. Shutter |
Auto (1/30~1/30000), Suppress Rolling, Manual |
|
Color adjust |
Bright / Contrast / Saturation / Sharp / Hue |
|
White Balance |
Auto / User |
|
OSD display |
Text, Date, Time, Event, On / Off |
|
Image Mirror |
Normal / mirror(H) / Flip(V) / Both (HV) |
Electrical |
|
|
Power Supply |
DC12[V] ±10% |
|
Current |
Max 300[mA] |
Environmental |
|
|
Operating Temp. |
32°F ~ 122°F (0°C ~ 50°C) |
|
Preservation Temp. |
14°F ~ 140°F (-10°C ~ +60°C) |
|
Humidity |
0% ~ 90% |
Physical Spec |
|
|
Dimension. ( W x H x D) |
1.3 x 1.3 x .31 in (32 x 32 X 8.0mm), without holder |
|
Weight. |
.09 lbs (40g) |
System |
|
|
OS |
Embedded Linux |
Network |
|
|
Interface |
RJ45 10/100 Base-T PoE |
|
Protocol |
TCP/IP, UDP/IP, RTP, RTSP, RTCP, NTP, HTTP, DHCP, FTP, SMTP, DNS, DDNS |
|
ONVIF |
Ver19.12 |
|
Simultaneous Access |
Max. 10 user |
Video |
|
|
Compress Format |
H.265/H.264/MJPEG |
|
Resolution |
2560x1920/2560x1440/2048x1536 /1920x1080/1280x720 /640x480/640x360/320x240 |
|
Max. Frame Rate |
30fps @all resolution |
|
Video Quality |
H.265: Bitrate Control H.264: Bitrate Control MJPEG: Quality Level Control |
|
Streaming |
Triple Stream (Stream1,2,3) RTP/RTSP, UnicastRTP, Multicast RTP |
Audio |
|
|
Compress Format |
Not Support |
|
Streaming |
Not Support |
Event |
|
|
Sensor In |
Not Support |
|
Alarm Out |
Not Support |
Web Browser |
|
|
OS |
Windows 7, 8, 10, |
|
Manager |
IE11, Edge, Chrome, Firefox, Safari, Opera |
|
Viewer |
IE11, Edge, Chrome, Firefox |
Ordering
ULT-P5SQPOE28NH: 5 Megapixel IP Miniature Camera, 2.8mm
ULT-P5SQPOE36NH: 5 Megapixel IP Miniature Camera, 3.6mm
ULT-P5SQPOE8NH: 5 Megapixel IP Miniature Camera, 8mm
