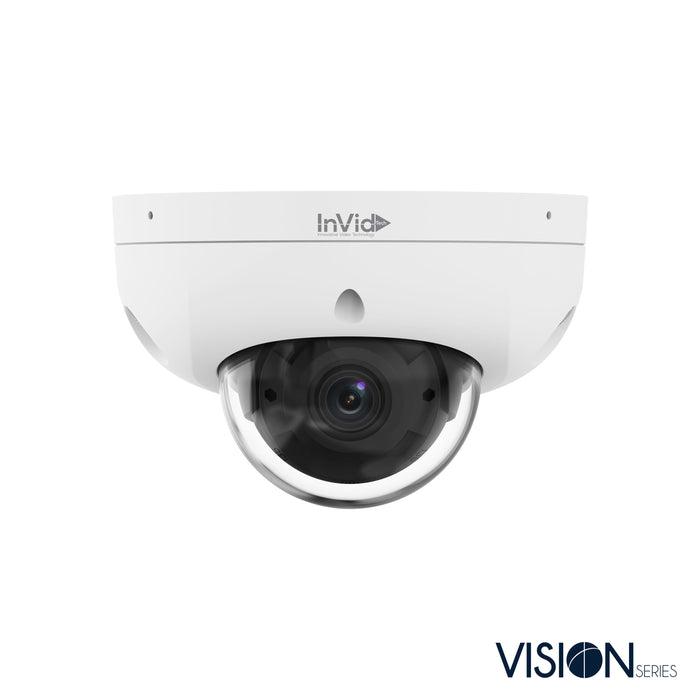

VIS-P4LIR28NH-AIWLT: 4 Megapixel Low Profile, 2.8mm
Description
4 Megapixel IP Plug & Play, Outdoor Low Profile, Fixed Lens, Supplemental Light Options: IR, White Light or IR to White Light, Built-in Mic/Speaker, SD Card Slot, 12VDC/PoE
KEY FEATURES
- True AI Human & Vehicle Classification for Line Crossing, Intrusion Detection, & Other AI Features
- AI-Triggered White Light up to 98'
CORE FEATURES
- 4 Megapixel
- Fixed 2.8mm
- Cloud Upgradeable
- Micro SD Slot: Up to 512GB
- Dual Built-in Mics & Speaker with External Audio Input & Output
- True Day/Night with IR Range up to 98'
- IP67 Weatherproof
- IK10 Vandal Resistant
- ONVIF
- Supports Native Chrome/Edge Use
- 12VDC/PoE Operation
- Free iOS & Android Apps for Smart Phones & Tablets
- Free Central Management Software (CMS) for PC/MAC
- UL Listed
InVid Tech Compliant Product-Learn More Here.
Specs
Model |
VIS-P4LIR28NH-AIWLT |
|
Camera |
|
|
|
Max Resolution |
4 MP |
|
|
Sensor |
1/2.9" CMOS |
|
|
Min. Illumination |
Color: 0.002 Lux (F1.6, AGC ON), 0 Lux with light |
|
|
Day/Night |
IR-cut filter with auto switch (ICR) |
|
|
Shutter |
Auto/Manual, 1 to 1/100000 s |
|
|
Adjustment Angle |
Pan:-48° to 48°, Tilt: 0° to 80°, Rotate: 0° to 360° |
|
|
S/N |
> 56 dB |
|
|
WDR |
130 dB |
|
Lens |
|
|
|
Focal Length |
2.8 mm |
|
|
Iris Type |
Fixed |
|
|
Iris |
F1.6 |
|
|
Field of View (H) |
101.1° |
|
|
Field of View (V) |
57.1° |
|
|
Field of View (D) |
117.7° |
|
|
Lens Type |
Fixed |
|
DORI |
|
|
|
DORI Distance (Lens) |
2.8 mm |
|
|
DORI Distance (Detect) |
206.7 ft (63.0 m) |
|
|
DORI Distance (Observe) |
82.7 ft (25.2 m) |
|
|
DORI Distance (Recognize) |
41.3 ft (12.6m) |
|
|
DORI Distance (Identify) |
20.7 ft (6.3 m) |
|
Illuminator |
|
|
|
Supplemental Light |
Dual light |
|
|
Illumination Distance (IR) |
98.4 ft (30 m) |
|
|
Illumination Distance (Warm Light) |
98.4 ft (30 m) |
|
|
IR On/Off Control |
Auto/Manual |
|
|
Wavelength |
850 nm |
|
|
Light On/Off Control |
Auto/Manual |
|
Video |
|
|
|
Video Compression |
Ultra 265, H.265, H.264, MJPEG |
|
|
H.264 Code Profile |
Baseline profile, Main profile, High profile |
|
|
Frame Rate-Main Stream |
4 MP (2688 × 1520), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 3 MP (2304 × 1296), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps |
|
|
Frame Rate-Sub Stream |
1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps |
|
|
Frame Rate-Third Stream |
D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps |
|
|
Video Bit Rate |
128 Kbps to 16 Mbps |
|
|
U-code |
Support |
|
|
OSD |
Up to 8 OSDs |
|
|
Privacy Mask |
Up to 4 areas |
|
|
ROI |
Support |
|
|
Video Stream |
Triple streams |
|
Image |
|
|
|
White Balance |
Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
|
|
Digital Noise Reduction |
2D/3D DNR |
|
|
Smart IR |
Support |
|
|
Flip |
Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise |
|
|
Dewarping |
N/A |
|
|
HLC |
Support |
|
|
BLC |
Support |
|
|
Defog |
Digital defog |
|
Intelligent |
|
|
|
Smart Intrusion Prevention |
Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
|
|
Statistical Analysis |
N/A |
|
|
People Counting |
Support people flow counting and crowd density detection |
|
Events |
|
|
|
Basic Detection |
Motion detection, Ultra motion detection, Tampering alarm, Audio detection |
|
|
General Function |
Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output |
|
Audio |
|
|
|
Audio Compression |
G.711U, G.711A |
|
|
Audio Bitrate |
64 Kbps |
|
|
Two-way Audio |
Support |
|
|
Suppression |
Support |
|
|
Sampling Rate |
8 kHz |
|
Storage |
|
|
|
Edge Storage |
MicroSD, up to 512 GB |
|
|
Network Storage |
ANR, NAS (NFS) |
|
Network |
|
|
|
Protocols |
IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH |
|
|
Compatible Integration |
ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
|
|
User/Host |
Up to 32 users. 3 user levels: administrator, common user and operator |
|
|
Client |
InVid Vision (Mobile App), Vision Tools (IP Utility), InVid CMS |
|
|
Web Browser |
Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
|
Interface |
|
|
|
Audio I/O |
1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] |
|
|
Alarm I/O |
1/1 |
|
|
Serial Port |
N/A |
|
|
Built-in Mic |
Built-in dual-mic |
|
|
Built-in Speaker |
Support |
|
|
WIFI |
N/A |
|
|
Network |
1 × RJ45 10 M/100 M Base-TX Ethernet |
|
|
Video Output |
N/A |
|
Certification |
|
|
|
EMC |
CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130-4) FCC (FCC 47 CFR part15 B) |
|
|
Safety |
CE-LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
|
|
Environment |
CE-RoHS (2011/65/EU; (EU) 2015/863) ; WEEE (2012/19/EU) |
|
|
Protection |
IP67 (IEC 60529) IK10 (IEC 62262) |
|
General |
|
|
|
Power |
DC 12 V±25%, PoE (IEEE 802.3af) |
|
|
Power Consumption |
Max. 8.5 W |
|
|
Power Interface |
Ø5.5 mm coaxial power plug |
|
|
Dimensions (Ø × H) |
Ø4.4” × 2.9” (Ø111.2 mm × 72.6 mm) |
|
|
Weight |
1.01 lb (0.46 kg) |
|
|
Material |
Metal |
|
|
Working Environment |
-22°F ~ 140°F (-30°C to 60°C), Humidity: ≤ 95% RH (non-condensing) |
|
|
Storage Environment |
-22°F ~ 140°F (-30°C to 60°C), Humidity: ≤ 95% RH (non-condensing) |
|
|
Surge Protection |
4 KV |
|
|
Reset Button |
Support |
|
|
Web Client Language |
20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese |
|
Accessories
IVM-JB2: Junction box
IVM-DRWM6: Wall Mount
IVM-CORNER2: Corner Mount (Must Use with Junction Box or Wall Mount)
IVM-POLE1: Pole Mount
IVM-PM2: Pendant Mount
