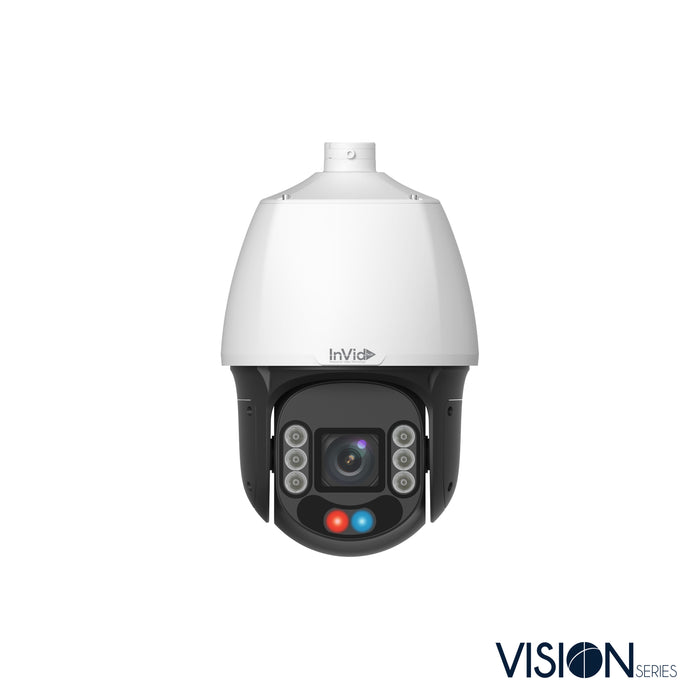

VIS-P4PTZXIR33NH-AIRBT: 4 Megapixel PTZ, 4.5-148.5mm Lens
Description
4 Megapixel IP Plug & Play, Outdoor PTZ, Motorized Auto-Focus, 4.5-148.5mm, EIS, IR Range up to 656’, WDR, White Light up to 328’, Red/Blue Flashing Deterrent Light and/or Siren, Built-in Speaker, SD Card Slot, DC12V/PoE+
Features
- True AI Human & Vehicle Classification for Line Crossing, Intrusion Detection,& Other AI Features
- Supports Electronic Image Stabilization (EIS) – Eliminates shake in zoomed-in views on high-mounted or wind-exposed PTZs
- 4 Megapixel Resolution
- Motorized Auto-Focus 4.5-148.5 mm Lens
- True Day/Night with IR Range up to 656’
- Starlight Illumination
- Ultra 265,H.265,H.264, MJPEG
- 60 FPS Recording and Live
- True WDR 120dB
- Micro SD Slot: Up to 512GB
- Audio Input
- Audio Output: Built-in Speaker
- IP67 Weatherproof
- IK10 Vandal Resistant
- 12VDC/PoE+ Operation
- ONVIF
- Free iOS & Android Apps for Smart Phones & Tablets
- Free Central Management Software (CMS) for PC/MAC
InVid Tech Compliant Product-Learn More Here.
Specs
|
Camera |
|
|
Max Resolution |
4 MP |
|
Sensor |
1/2.8" CMOS |
|
Day/Night |
IR-cut filter with auto switch (ICR) |
|
Shutter |
Auto/Manual, 1 to 1/100000 s |
|
WDR |
120 dB |
|
S/N |
> 56 dB |
|
Case Type |
PT |
|
Lens |
|
|
Focal Length |
4.5 to 148.5 mm |
|
Digital Zoom |
8X |
|
Optical Zoom |
33X |
|
Iris |
F1.5 to F4.0 |
|
Field of View (H) |
53.61° to 2.68° |
|
Field of View (V) |
31.73° to 1.50° |
|
Field of View (D) |
63.26° to 3.30° |
|
DORI |
|
|
DORI Distance (Detect) |
346.9 ft. to 10408.5 ft (105.8 m to 3172.5 m) |
|
DORI Distance (Observe) |
138.8 ft. to 4163.4 ft (42.3 m to 1269.0 m) |
|
DORI Distance (Recognize) |
69.4 ft. to 2081.7 ft (21.2 m to 634.5 m) |
|
DORI Distance (Identify) |
34.8 ft. to 1041.0 ft (10.6 m to 317.3 m) |
|
Video |
|
|
Video Compression |
H.265, H.264, MJPEG, Ultra 265 |
|
Frame Rate |
Main Stream Max: 4 MP (2688 × 1520), 60 fps Main Stream Default: 4 MP (2560 × 1440), 25 fps Sub Stream Max: 1080P (1920 × 1080), 60 fps Third Stream Max: D1 (720 × 576), 60 fps Fourth Stream Max: D1 (720 × 576), 60 fps Fifth Stream Max: D1 (720 × 576), 60 fps |
|
Video Bit Rate |
128 Kbps to 16 Mbps |
|
U-code |
Support |
|
Privacy Mask |
24 areas, up to 8 areas per scene |
|
ROI |
Up to 8 areas |
|
Video Stream |
Five streams |
|
OSD |
Up to 10 OSDs |
|
Events |
|
|
General Function |
Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, Alarm input, Alarm output, HTTP authentication |
|
Audio |
|
|
Audio Compression |
G.711U, G.711A |
|
Two-way Audio |
Support |
|
Suppression |
Support |
|
Sampling Rate |
8 kHz, 16 kHz |
|
Storage |
|
|
Edge Storage |
MicroSD, up to 512 GB |
|
Network Storage |
NAS (NFS) |
|
Network |
|
|
Protocols |
SSH, IGMP, RTP, RTMP, RTCP, IPv4, SSL/TLS, QoS, 802.1x, HTTPS, HTTP, UPnP, NTP, DDNS, DNS, RTSP, DHCP, UDP, TCP, ARP, ICMP, IPv6, SMTP, PPPoE, SNMP |
|
Compatible Integration |
SDK, API, ONVIF (Profile S, Profile G, Profile T, Profile M) |
|
User/Host |
Up to 32 users. 3 user levels: administrator, common user and operator |
|
Security |
Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF, TLS 1.3 |
|
Clients |
InVid Vision (Mobile App), Vision Tools (IP Utility), InVid CMS |
|
Web Browser |
Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
|
PTZ |
|
|
Preset Patrol |
16 patrols, up to 64 presets for each patrol |
|
Patrol Stay Time |
15 s to 1800 s |
|
Tilt Range |
-15° to 90° (auto flip) |
|
Pan Speed |
0.1°/s to 288°/s |
|
Pan Range |
360° (endless) |
|
Preset Image Freeze |
Support |
|
Home Position |
Support |
|
Tilt Speed |
0.1°/s to 288°/s |
|
Number of Presets |
1024 |
|
Image |
|
|
White Balance |
Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2, Area white balance |
|
Digital Noise Reduction |
2D/3D DNR |
|
BLC |
Support |
|
Flip |
Normal, Flip vertical, Flip horizontal, 180° |
|
HLC |
Support |
|
Defog |
Digital defog |
|
Low Illumination Characteristics |
ColorHunter with wise-ISP |
|
Image Stabilization |
EIS (Gyroscope Electronic Image Stabilization) |
|
Interface |
|
|
Audio I/O |
1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
|
Alarm I/O |
2/1 |
|
Network |
1 × RJ45 10 M/100 M Base-TX Ethernet |
|
Built-in Speaker |
Support |
|
Serial Port |
1 × RS485 |
|
Intelligent |
|
|
People Counting |
Support people flow counting and crowd density detection |
|
Exception Detection |
Object removed, Object Left Behind |
|
Auto Tracking |
Supported |
|
Smart Intrusion Prevention |
Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
|
Illuminator |
|
|
Illumination Distance (Warm Light) |
328.1 ft (100 m) |
|
Illumination Distance (IR) |
656.2 ft (200 m) |
|
Certification |
|
|
Safety |
UL (UL 62368-1) CUL (CAN/CSA C22.2 No. 62368-1) CE-LVD (EN IEC 62368-1) |
|
EMC |
CE-EMC (EN 55032; EN IEC 61000-3-2; EN 61000-3-3; EN 50130) CC SDoC (47 CFR Part 15; Subpart B) |
|
Environment |
CE-ROHS (2011/65/EU; (EU) 2015/863) WEEE (2012/19/EU) |
|
Protection |
IP67 (IEC 60529) ; IK10 (IEC62262; Anti-Vandalism Except for the Front Window) |
|
General |
|
|
Power Interface |
Wires with cold-pressed terminal |
|
Dimensions (Ø × H) |
Ø8.9” × 15.4” (Ø227 mm × 390 mm) |
|
Weight |
11.59 lb (5.26 kg) |
|
Storage Environment |
-40°F ~ 158°F (-40°C ~ 70°C), Humidity: ≤ 95% RH (non-condensing) |
|
Surge Protection |
6 KV |
|
Working Environment |
-40°F ~ 158°F (-40°C ~ 70°C), Humidity: ≤ 95% RH (non-condensing) |
|
Reset Button |
Support |
|
Power |
DC 24 V±25%, AC 24 V±25%, PoE+ (IEEE 802.3at) |
|
Power Consumption |
Max. 20.88 W |
|
LED Indicator |
1, red/blue |
|
Configurable |
|
|
P/N |
Support |
|
Live View |
|
|
3D Privacy Mask |
Support |
|
Compliance |
|
|
NDAA Compliant |
Support |
Accessories
IVM-PM1: Indoor Pendant Mount
IVM-PTZWALL1: Short Wall Mount
IVM-PTZWALL2: Long Wall Mount
IVM-PARAPET: Parapet Mount
IVM-JB6: Junction Box
IVM-PTZPOLE: Pole Mount (Use with Wall Mounts)
IVM-CORNER1: Corner Mount #1 (Use with Wall Mounts)
Ordering
VIS-P4PTZXIR33NH-AIRBT: 4 Megapixel PTZ, 4.5-148.5mm Lens
