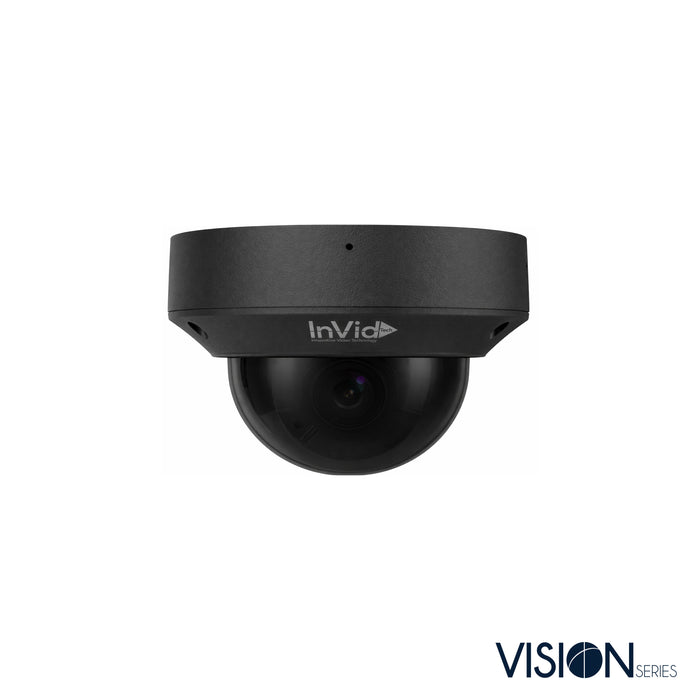

VIS-P5DRXIRA27135NHB: 5 Megapixel IP Plug & Play Outdoor Dome 2.7-13.5mm

Camera

VIS-P5DRXIRA27135NH

Sensor

1/2.7", 5.0 megapixel, progressive scan, CMOS

Lens

2.7 ~ 13.5mm, AF automatic focusing and motorized zoom lens

DORI Distance

Lens (mm)  Detect (ft)          Observe (ft)      Recognize (ft)      Identify (ft)

2.7               199.5(60.8m)     79.7(24.3m)      40(12.2m)            20(6.1m)

13.5             996.7(303.8m)   398.6(121.5m)  199.5(60.8m)       99.7(30.4m)

Angle of View (H)

106.25°~ 30.42°

Angle of View (V)

56.36°~ 17.22°

Angle of View (O)

110.34°~34.18°

Adjustment angle

Pan: 0° ~ 355°        Tilt: 0° ~ 80°             Rotate: 0° ~ 355°

Shutter

Auto/Manual, 1 ~ 1/100000s

Minimum Illumination

Colour:0.002 Lux (F1.35, AGC ON) 0Lux with IR

Day/Night

IR-cut filter with auto switch (ICR)

Digital noise reduction

2D/3D DNR

S/N

>56dB

IR Range

Up to 131ft  (40m) IR range

Wavelength

850nm

IR On/Off Control

Auto/Manual

Defog

Digital Defog

WDR

120dB

Video

Video Compression

Ultra 265, H.265, H.264, MJPEG

H.264 code profile

Baseline profile, Main Profile

Frame Rate

Main Stream:5MP (2880*1620), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 25fps; 1080P (1920*1080), Max 30fps; Sub Stream: D1 (720*576), Max 30fps; Third Stream: CIF (352*288), Max 30fps

Video Bit Rate

128 Kbps~16 Mbps

OSD

Up to 8 OSDs

Privacy Mask

Up to 4 areas

ROI

Up to 8 areas

Motion Detection

Up to 4 areas


White Balance

Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Digital noise reduction

2D/3D DNR

Smart IR

Support

Flip

Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise

Dewarping

Supported

HLC

Supported

BLC

Supported

Audio

Audio Compression

G.711

Two-way audio

Supported

Suppression

Supported

Sampling Rate

8KHZ

Storage

Edge Storage

Micro SD, up to 256GB

Network Storage

ANR

Smart

Behavior Detection

Line crossing detection, Intrusion detection, Region entrance detection, Region exit detection ;Motion detection, Tampering alarm, Audio Detection

Network

Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP,

 DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL

Compatible Integration

ONVIF (Profile S, Profile G, Profile T), API

Client

Vision CMS, InVid Vision

Web Browser

Plug-in required live view: IE9+, Chrome 41 & below, Firefox 52 & below

Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+

Interface

Audio I/O

Input: impedance 35kΩ; amplitude 2V [p-p]

Output: impedance 600Ω; amplitude 2V [p-p]

Alarm I/O

1/1

Built-in Mic

Supported

Audio Sensitivity

-32±3dB

Network

1 RJ45 10M/100M Base-TX Ethernet

Certifications

Certifications

CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15

General

Power

DC 12V±25%, PoE (IEEE 802.3af)

Power consumption: Max 5.5W

Dimensions (Ø x H)

Φ 5.8” x 4.4” (148 x 111mm)

Net Weight

0.99lb  (0.45kg)

Material

Metal + Plastic

Working Environment

-22°F ~ 140°F (-30°C ~ 60°C), Humidity: ≤95% RH (non-condensing)

Strorage Environment

-22°F ~ 140°F (-30°C ~ 60°C), Humidity: ≤95% RH (non-condensing)

Surge Protection

2KV

Reset Button

Supported

Ingress Protection

IP67

Vandal Resistant

IK10
