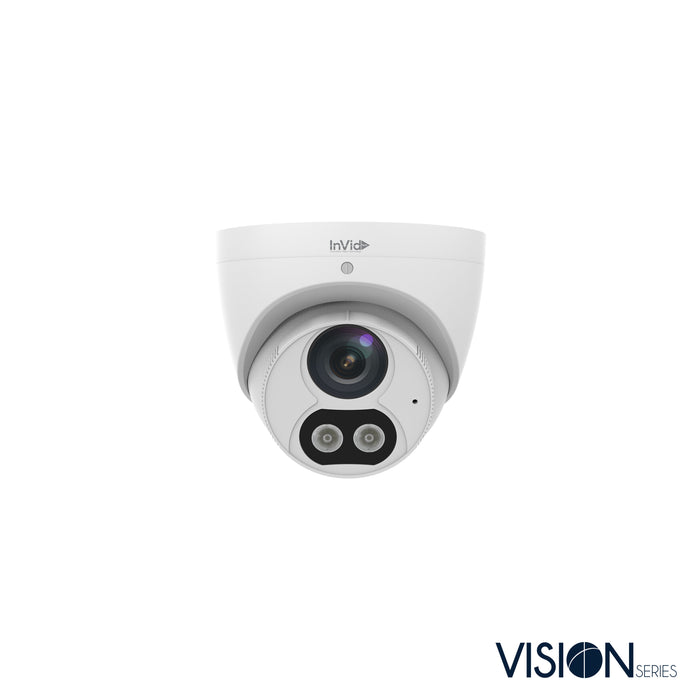

VIS-P8TXIR28NH-LC3N: 8 Megapixel Turret, 2.8mm

Model

VIS-P8TXIR28NH-LC3N

Max Resolution

8 MP

Sensor

1/2.7" CMOS

Min. Illumination

Color: 0.005 Lux (F1.6, AGC ON), 0 Lux with light

Day/Night

IR-cut filter with auto switch (ICR)

Shutter

Auto/Manual, 1 ~ 1/100000s

Adjustment Angle

Pan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360°

S/N

>56 dB

WDR

120 dB

Lens

Focal Length

2.8 mm

Iris Type

Fixed

Iris

F1.6

Field of View (H)

100.8°

Field of View (V)

55.8 °

Field of View (D)

105.7°

Lens Type

Fixed

DORI

DORI Distance (Lens)

2.8 mm

DORI Distance (Detect)

275.6 ft  (84.0 m)

DORI Distance (Observe)

110.2 ft  (33.6 m)

DORI Distance  (Recognize)

55.1 ft  (16.8 m)

DORI Distance (Identify)

27.6 ft  (8.4 m)

Illuminator

Supplemental Light

Dual light

Illumination Distance (IR)

98.4 ft (30 m)

Illumination Distance

(Warm Light)

98.4 ft (30 m)

Wavelength

850 nm

Light On/Off Control

Auto/Manual

Video

Video Compression

Ultra 265, H.265, H.264, MJPEG

H.264 Code Profile

Baseline profile, Main profile, High profile

Frame Rate

Main Stream: 8 MP (3840 × 2160), max. 20 fps; 5 MP (3072 × 1728), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; Sub Stream: 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps

Video Bit Rate

128 Kbps to 16 Mbps

U-code

Support

OSD

Up to 4 OSDs

Privacy Mask

Up to 4 areas

ROI

Support

Video Stream

Dual streams


White Balance

Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2, Area white balance

Digital Noise Reduction

2D/3D DNR

Smart IR

Support

Flip

Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise

Dewarping

N/A

HLC

Support

BLC

Support

Defog

Digital defog

Image Stabilization

N/A

Events

Basic Detection

Motion detection, Ultra motion detection

(based on human body and vehicle detection), Tampering alarm, Audio detection

General Function

Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio

Audio Compression

G.711U, G.711A

Audio Bitrate

64 Kbps

Two-way Audio

N/A

Suppression

Support

Sampling Rate

8 kHz

Storage

Edge Storage

MicroSD, up to 512 GB

Network Storage

ANR, NAS (NFS)

Network

Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP, QoS, 802.1x

Compatible Integration

ONVIF (Profile S, Profile G, Profile T), API, SDK

User/Host

Up to 32 users. 3 user levels: administrator, common user and operator

Security

Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF

Client

InVid Vision (Mobile App), Vision Tools (IP Utility), InVid CMS

Web Browser

Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Interface

Audio I/O

N/A

Alarm I/O

N/A

Serial Port

N/A

Built-in Mic

Support

Built-in Speaker

N/A

WIFI

N/A

Network

1 × RJ45 10 M/100 M Base-TX Ethernet

Video Output

N/A

Certification

EMC

CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130-4) FCC (FCC 47 CFR part15 B)

Safety

CE LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)

Environment

CE-RoHS (2011/65/EU;(EU)2015/863) WEEE (2012/19/EU) Packaging and Packaging Waste (94/62/EC)

Protection

IP67 (IEC 60529)

General

Power Consumption

Max. 5.3 W

Power

DC 12 V±25%, PoE (IEEE 802.3af)

Power Interface

Ø5.5 mm coaxial power plug

Dimensions (Ø × H)

Ø4.6” × 3.9” (Ø117.8 mm × 99.7 mm)

Weight

0.68lb (0.31 kg)

Material

Metal + Plastic

Storage Environment

-22°F ~ 140°F (-30°C ~ 60°C), Humidity: ≤ 95% RH (non-condensing)

Working Environment

-22°F ~ 140°F (-30°C ~ 60°C), Humidity: ≤ 95% RH (non-condensing)

Surge Protection

4 KV

Reset Button

N/A

Web Client Language

13 Languages: English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian
