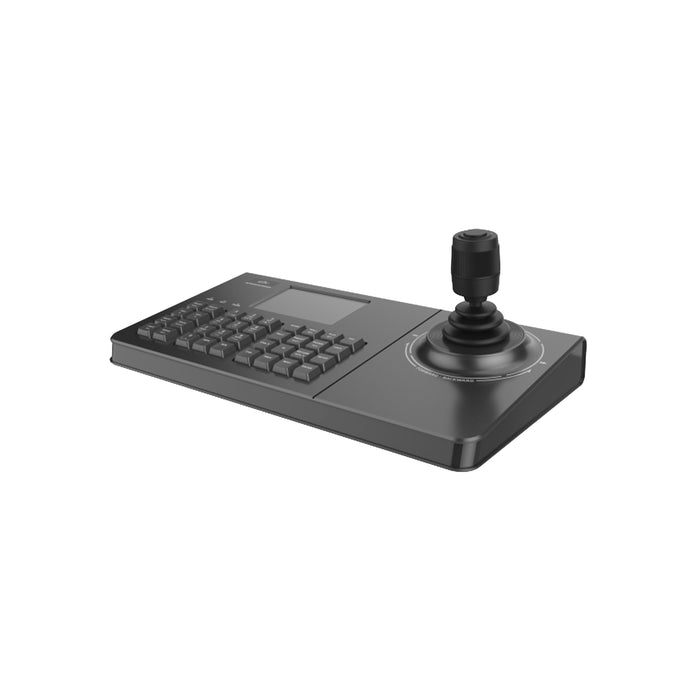

VKB-1100NV2: Network Control Keyboard
Description
Network Control Keyboard
Features
- Simple appearance and buttons layout, aesthetic and user-friendly
- 4-inch display screen provides clear image with more details
- 4D joystick for PTZ control (move up/down//left/right, focus, zoom)
- Uses Hoare joystick with high control precision and stability, effectively extending the lifetime
- Power on/off button on the keyboard, convenient and energy-saving
- Simple and clear keyboard configuration, easy for use and maintenance
- Supports playing video on video wall and control video
- Supports keyboard lock
- Allows to set multiple-level user permissions
Spec
Model |
VKB-1100NV2 |
General |
|
|
Screen Size |
4 inches |
|
Joystick |
Four-dimensional joystick |
|
Max Power Consumption |
<5w |
|
Product Dimensions (W × H × D) |
13.6 x 7.5 x 5 in (345.0 x 189.8 x 128.12mm) |
|
Weight |
2.6lbs (1.2kg) |
|
Operating Temperature |
14°F ~ 131°F (-10°C to 55°C) |
|
Operating Humidity |
10% to 90% RH, noncondensing |
|
IPC Mode |
Supports adding 512 IPC |
|
NVR Mode |
Supports adding 240 NVR |
Other Interfaces |
|
|
Serial Port |
1 x RS232 (DB9, reserved) 2 x RS485 (half-duplex, reserved) |
|
Console |
1 x Console/RS485 shared interface (RJ45) |
|
USB |
2 x USB (reserved) |
|
Network Interface |
1 x RJ45, 10M/100M/1000M Based-T adaptive interface |
|
Power |
DC 12 V |
|
RST |
1 x Reset button |
Ordering
VKB-1100NV2: Network Control Keyboard
