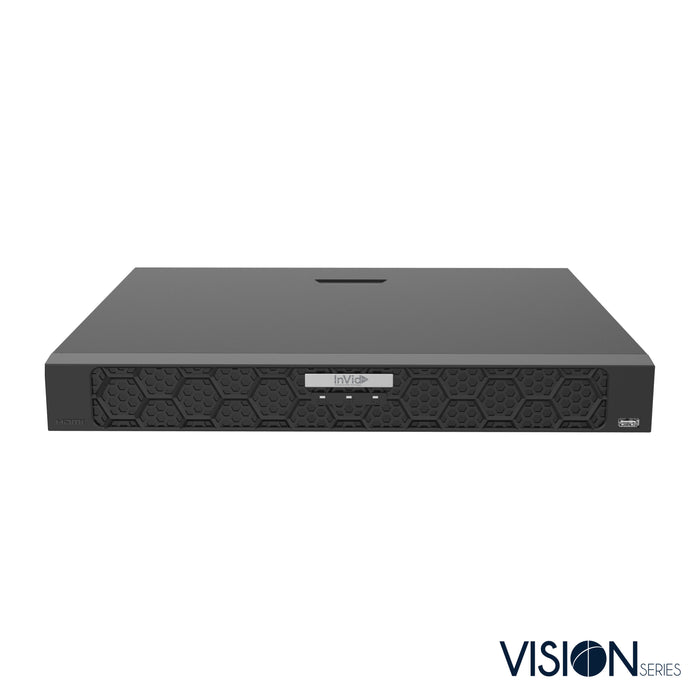

VN5A-32: 32 Ch NVR

Model

VN5A-32

Decoding

Decoding Format

Ultra 265, H.265, H.264

Decoding Capability

Smart Off: 4 x 16MP@30, 8 x 4K@30, 16 x 4MP@30, 20 x 3MP@30, 32 x 1080P@30 Smart On: 2 x 16MP@30, 4 x 4K@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 720P@30

Decoding Capability

The resolution of each channel cannot exceed 4096 pixels in length or width

Audio Compression

G.711A, G.711U

Network

Incoming Bandwidth

192 Mbps

Outgoing Bandwidth

192 Mbps

Max Users Can Be Added

32

Remote Users

128

Protocols

TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, IPv6, IPv4

Browser (Plugin)

IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+

Video/Audio Input

IP Video Input

32-ch

RCA Audio Input

1-ch

Peripheral Input

IP Speaker

16-ch

POS

All channels

Video/Audio Output

Video Output

Support 2-ch HDMI, 2-ch VGA, HDMI1 and VGA1 simultaneous output, HDMI2 and VGA2 simultaneous output, HDMI1/VGA1 and HDMI2/VGA2 independent output

HDMI Output

4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz,

1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz

VGA Output

1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz,

1280 × 720/60 Hz, 1024 × 768/60 Hz

HDMI Standard

HDMI2.0

RCA Audio Output

2-ch

Liveview Display

1/4/6/8/9/16/25/32

Default Num of Live Screen

32

Corridor Mode Screen

3/4/5/7/9/10/12/16/32

Playback Screen

1/4/9/16

Corridor Mode Screen of Playback

1/3

Two-way Audio

Two-way Audio

1-ch, RCA (Using the audio input and output)

Snapshot

FTP/Schedule/Event Snapshot

16-ch snapshot (max. 8 MP (3840 × 2160) video resolution, with 1080P snapshot resolution)

Recording

Recording Resolution

16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF

Num of Concurrent Playback

32-ch

Synchronous Playback in Local

16-ch

Smart

Smart by IPC

All channels (up to 16 images/s in total) Face Detection, Face Comparison, Vehicle Detection (LPR), Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring

Smart by NVR

Face Detection, Face Comparison, Smart Intrusion Prevention (SIP), Behavior Analysis, Elevator Entrance Detection, Illegally Parked Motor Vehicle, Evacuation Route Obstruction, People Counting (People Flow Counting, Crowd Density Monitoring)

Smart by NVR

Analyzer Mode

Modes cannot active simultaneously, only one mode can active at a time.

VCA Search

Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, AcuSearch, SmartSearch+

SeekFree

All channels with Vision SIP/UMD Camera, Up to 16-ch with normal camera (Vision Non SIP and Third-part brand, 16-ch 2MP, 8-ch 4MP, 4-ch 4K)

SeekFree Language

English/Spanish/French

by NVR

All channels with Vision SIP/UMD Camera, Up to 16-ch with normal camera (Vision Non SIP and Third-part brand, 16-ch 2MP, 8-ch 4MP, 4-ch 4K)

Search by Image

Support

SIP by NVR with normal cameras

Up to 16-ch with normal camera (Vision Non SIP and Third-part brand, 16-ch 2MP, 8-ch 4MP, 4-ch 4K)

by NVR

No Helmet Detection, No Chef Hat Detection, No Work Clothes Detection, Smoking Detection, Smoke and Fire Detection, Calling Detection, No Mask Detection, Rat Detection, Long Stay Detection, Fall Detection, Fight Detection, Absence Detection, Climbing Detection, Sleep on Duty Detection, People Counting, Using Mobile Phone Detection, People Gathering, People Dispersion, Quick Moving

Video Metadata by NVR with normal cameras

Up to 16-ch with normal camera (Vision Non SIP and Third-part brand, 16-ch 2MP, 8-ch 4MP, 4-ch 4K)

Video Metadata by NVR

Motor Vehicle: Vehicle Type, Vehicle Color, Vehicle Brand, Direction, Plate Type, Plate Color, Human Body: Gender, Age, Mask, Hairstyle, Bag Style, Direction, Upper Garment Length, Lower Garment Length, Upper Garment Color, Lower Garment Color, Non-Motor Vehicle: Non-Motor Vehicle Type, Direction, Gender, Age, Upper Garment Length, Upper Garment Color

Vehicle Picture Library

Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total

Capacity of Snapshot Records

2 millions records for face snapshot,  2 millions records for behavior analysis and SIP

Alarm

Alert Alarm

IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal, Array Damaged, Array Degraded

GUI Language

GUI Language

38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian

Hard Disk

SATA

2 SATA Interfaces

Capacity

Up to 24 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size, The environment temperature for use should not exceed 40°C)

Disk Group

Support

Redundant Storage

Support

External Interface

Network Interface

2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface

Network Working Mode

Muli-access, load balance, network fault-tolerance

USB

Front panel: 1 × USB2.0, Rear panel: 2 × USB3.0

RS485

1

RS232

1

Alarm In

16-ch

Alarm Out

4-ch

Power Output

12 V

Buzzer

Support

Power Supply

DC 12 V/5 A

Working Environment

Working Temperature

14°F ~ 131°F (-10°C ~  55°C)

Working Humidity

≤ 90% RH (non-condensing)

Power Consumption (without HDD)

≤25W

Heat Dissipation

Fan, Radiator

Dimensions

Weight (without HDD)

(1.87 KG)

Height

1U

Dimensions

15.0” × 12.7” × 2.1” (380mm × 322.4mm × 53mm)

Certification

Certification

CE; FCC; UL; RoHS; WEEE

CE

EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035

FCC

Part15 Subpart B

Compliance

NDAA Compliant

Support

Feature Supported

Downlink ONVIF

Support (Profile S)

Uplink ONVIF

N/A

NAS

Support

Ucode Basic Mode

Support
